Compressor Control Valve Assembly Removal (V7 - Direct Mount)
TOOLS REQUIREDJ 41790 Compressor Holding Fixture
1. Remove the A/C compressor from the vehicle.
2. Clamp J 41790 in a vise and attach the A/C compressor to J 41790.

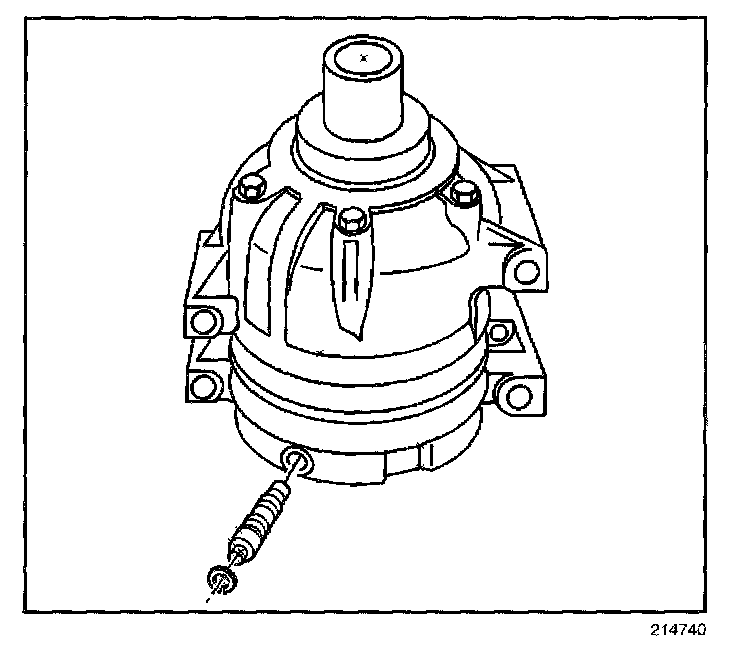

3. Using internal snap ring pliers, remove the retaining ring from the A/C compressor control valve.
4. Remove the control valve from the A/C compressor.
