Compressor Control Valve Assembly Install (V7 - Direct Mount)

TOOLS REQUIRED
J 41790 Compressor Holding Fixture




1. Coat the control valve O-ring with clean 525 viscosity refrigeration oil.

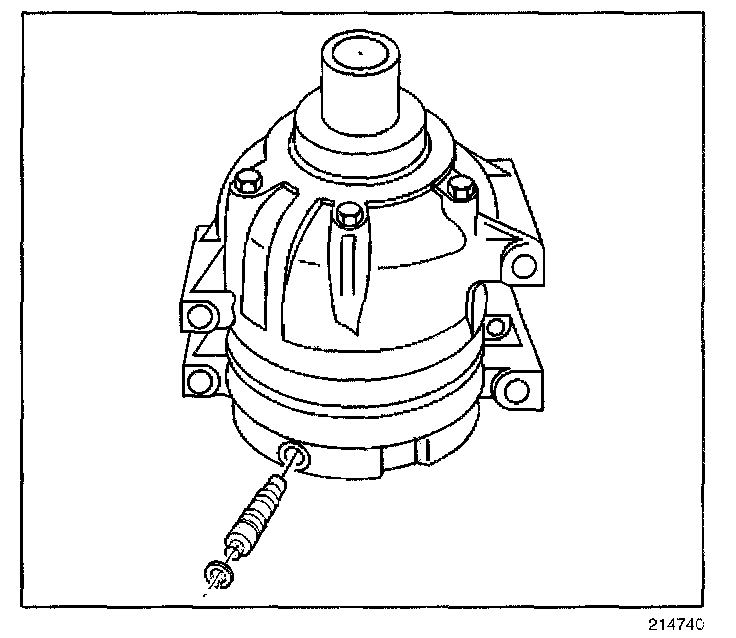

2. Push the control valve into the A/C compressor with thumb pressure.
3. Using internal snap ring pliers, install the retaining ring into the A/C compressor control valve.
Seat the retaining ring properly in the ring groove.
4. Remove the A/C compressor from J 41790.
5. Install the A/C compressor into the vehicle.
