Home
>>
Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Driver C1
Driver C1

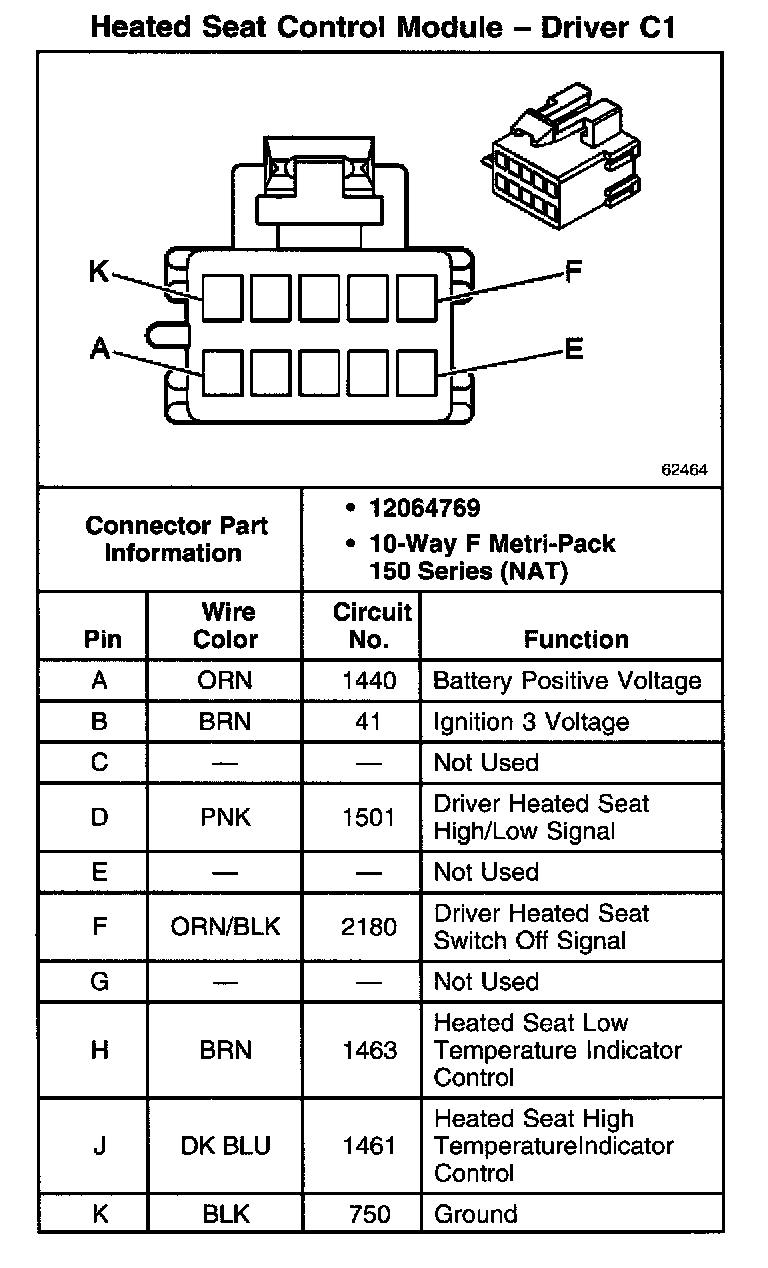

Heated Seat Control Module - Driver C1:
