Keyless Entry Receiver: Service and Repair

REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENT

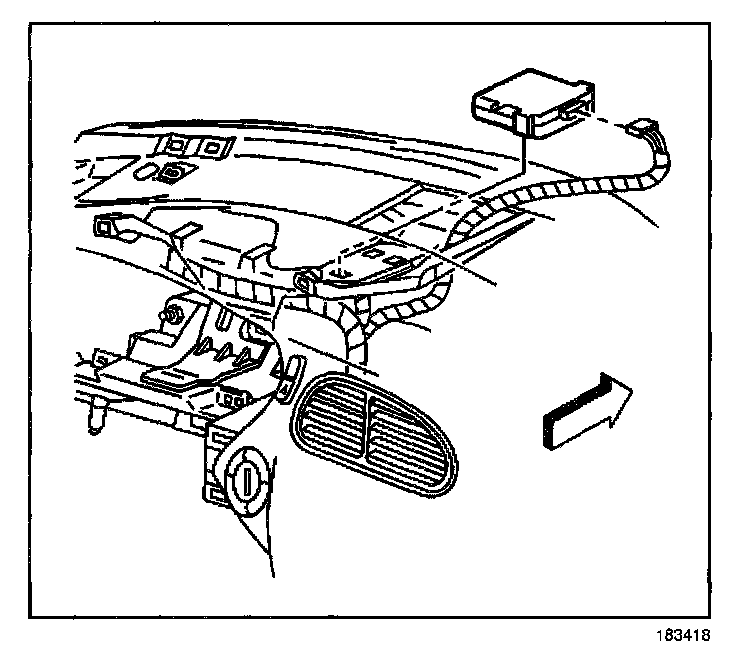

REMOVAL PROCEDURE




1. Remove the upper trim panel from the instrument panel (IP).
2. Release the door lock receiver from the IP by releasing the retainer tabs.
3. Disconnect the electrical connector.
4. Remove the door lock receiver.

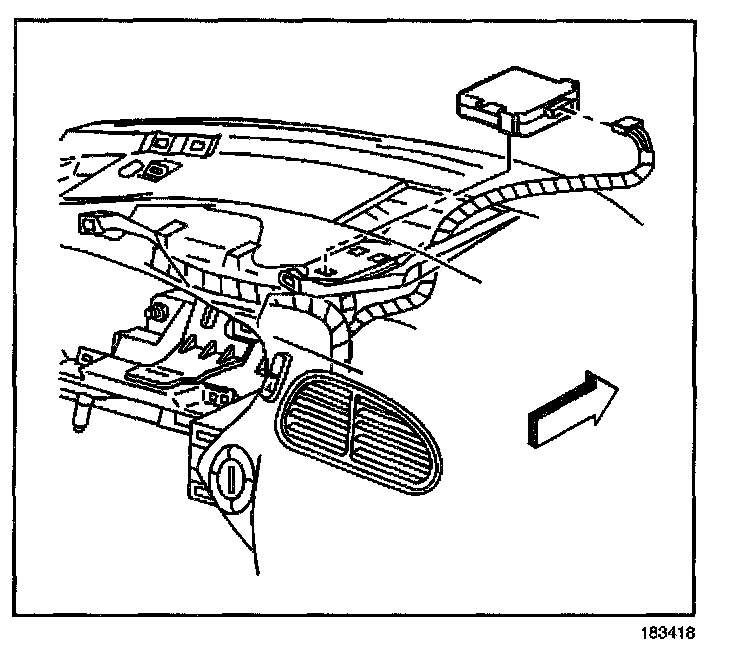

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the door lock receiver to the IP.
Press into place until the retainers are fully seated.
3. Install the IP upper trim panel.
4. Program the transmitter to the new receiver. Programming and Relearning
