Power Windows - Right Rear Window Switch And Motor

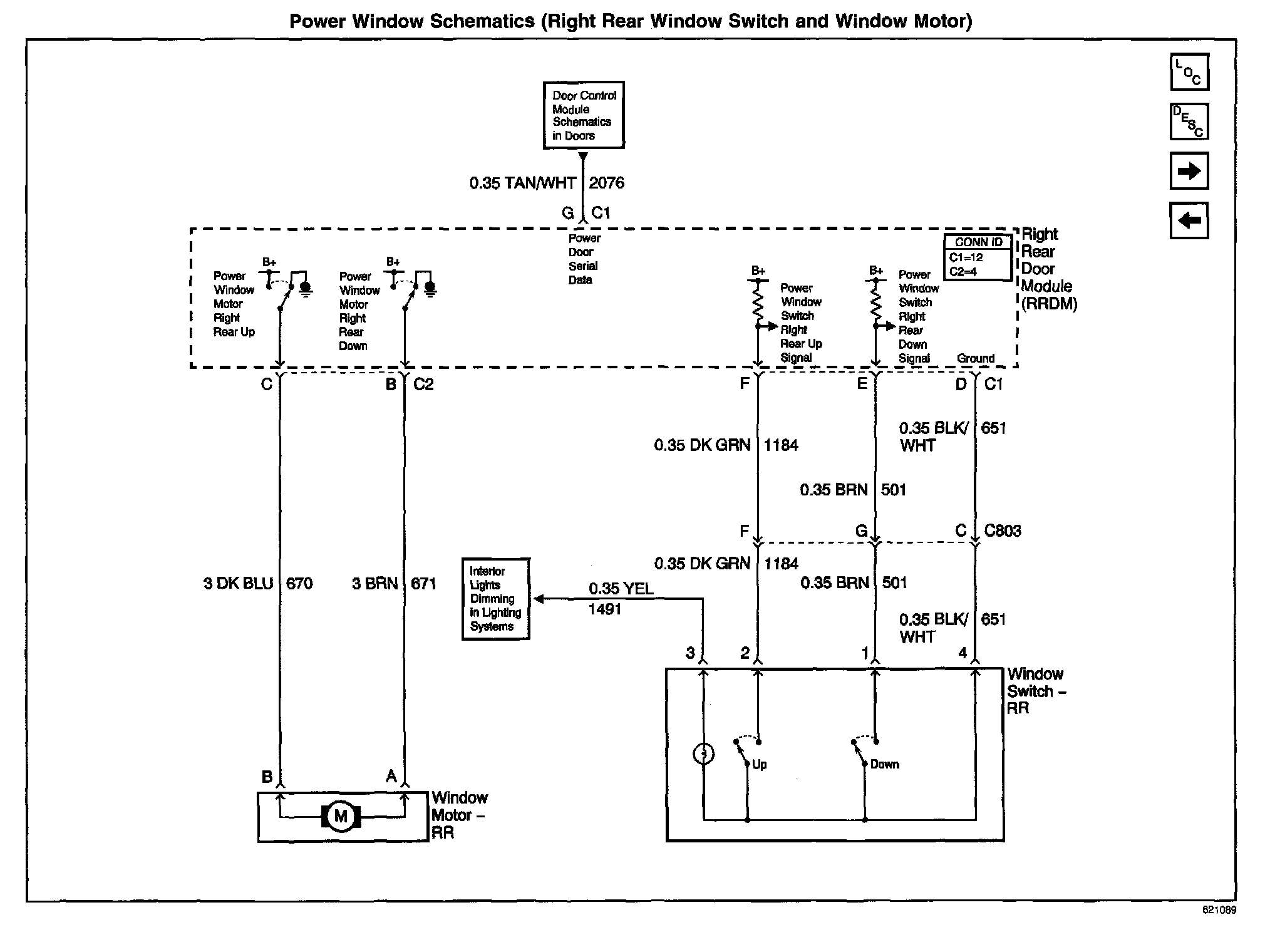

Power Window Schematics: Right Rear Window Switch And Window Motor:
