Power Window Switch And Window Mirror - Front Passenger

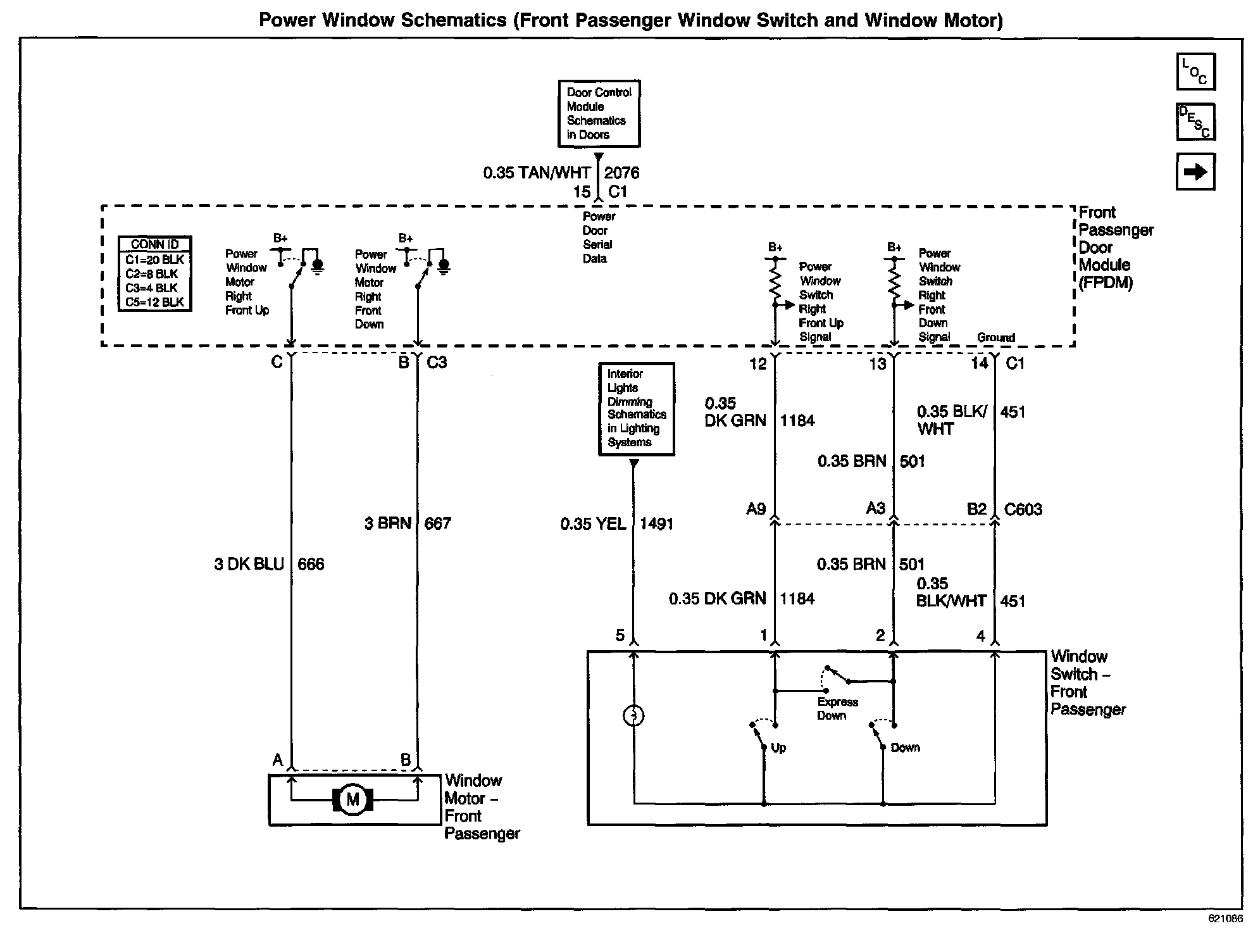

Power Window Schematics: Front Passenger Window Switch And Window Mirror:
