Torque Converter Cover: Service and Repair

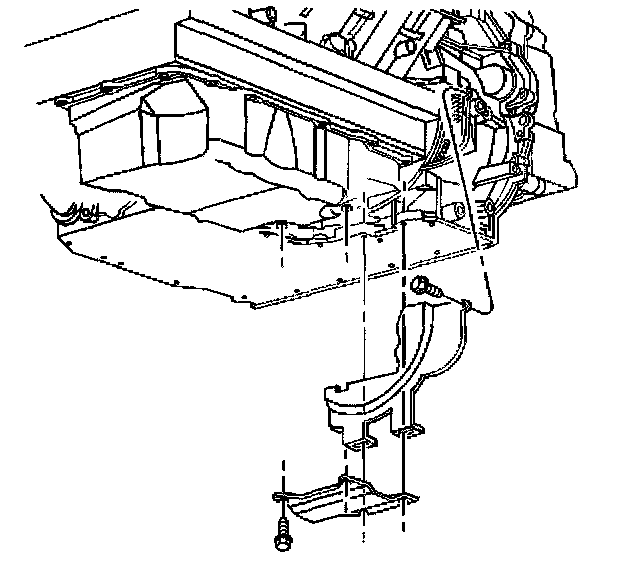

Torque Converter Cover Replacement

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the attaching bolts and the engine-to-transmission brace.
3. Remove the torque converter cover.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the torque converter cover.
^ Tighten the cover bolt to 12 Nm (106 inch lbs.).
2. Install the engine-to-transmission brace and attaching bolts.
^ Tighten the bolts to 47 Nm (35 ft. lbs.).
3. Lower the vehicle.
