Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Shift Lever Does Not Move With Brake Pedal Depressed

Shift Lever Does Not Move With Brake Pedal Depressed

Shift Lever Does Not Move with Brake Pedal Depressed

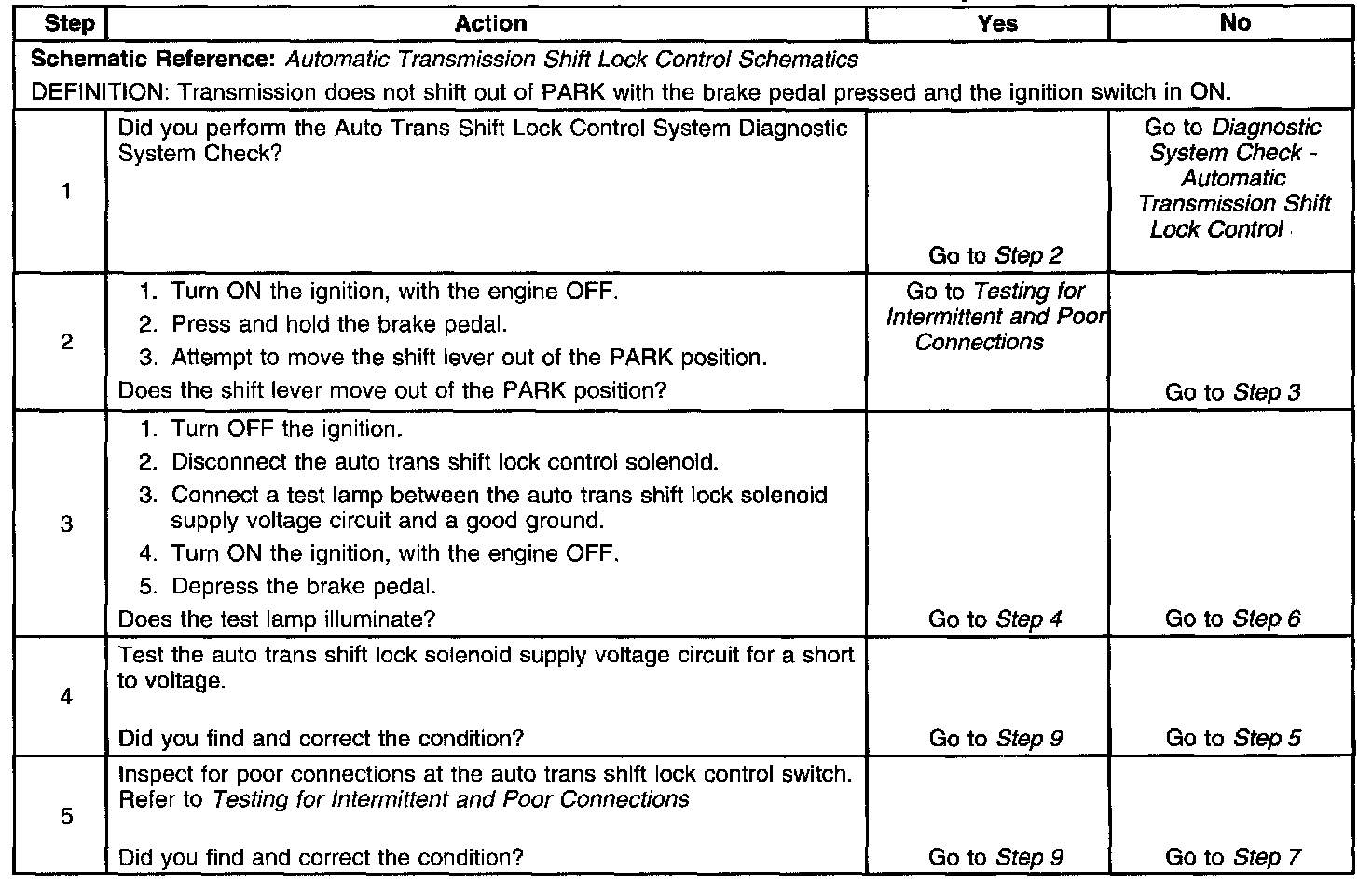

Step 1 - 5





Step 6 - 9
