Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Reverse Lockout System Inoperative

Reverse Lockout System Inoperative

Reverse Lockout System Inoperative

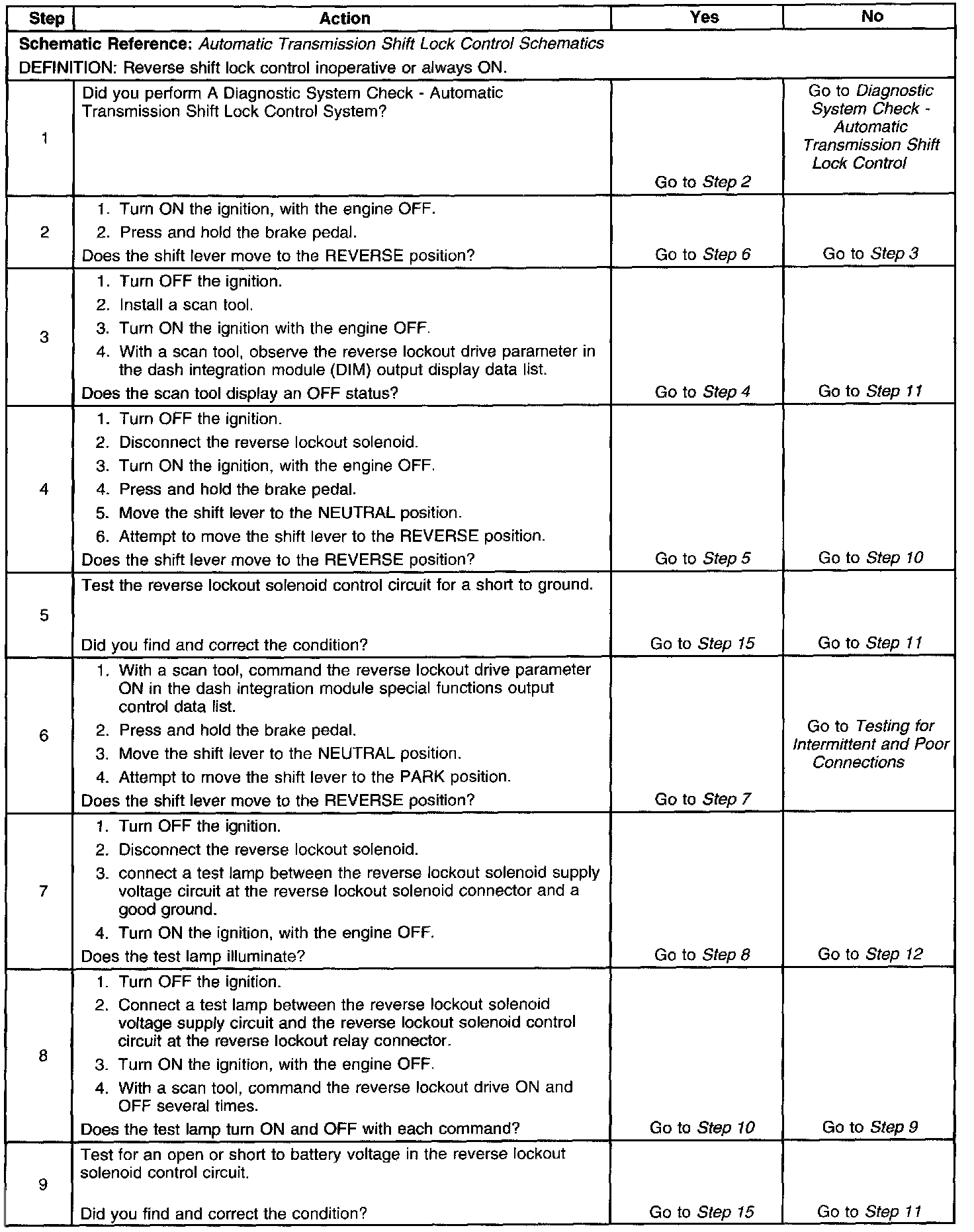

Step 1 - 9

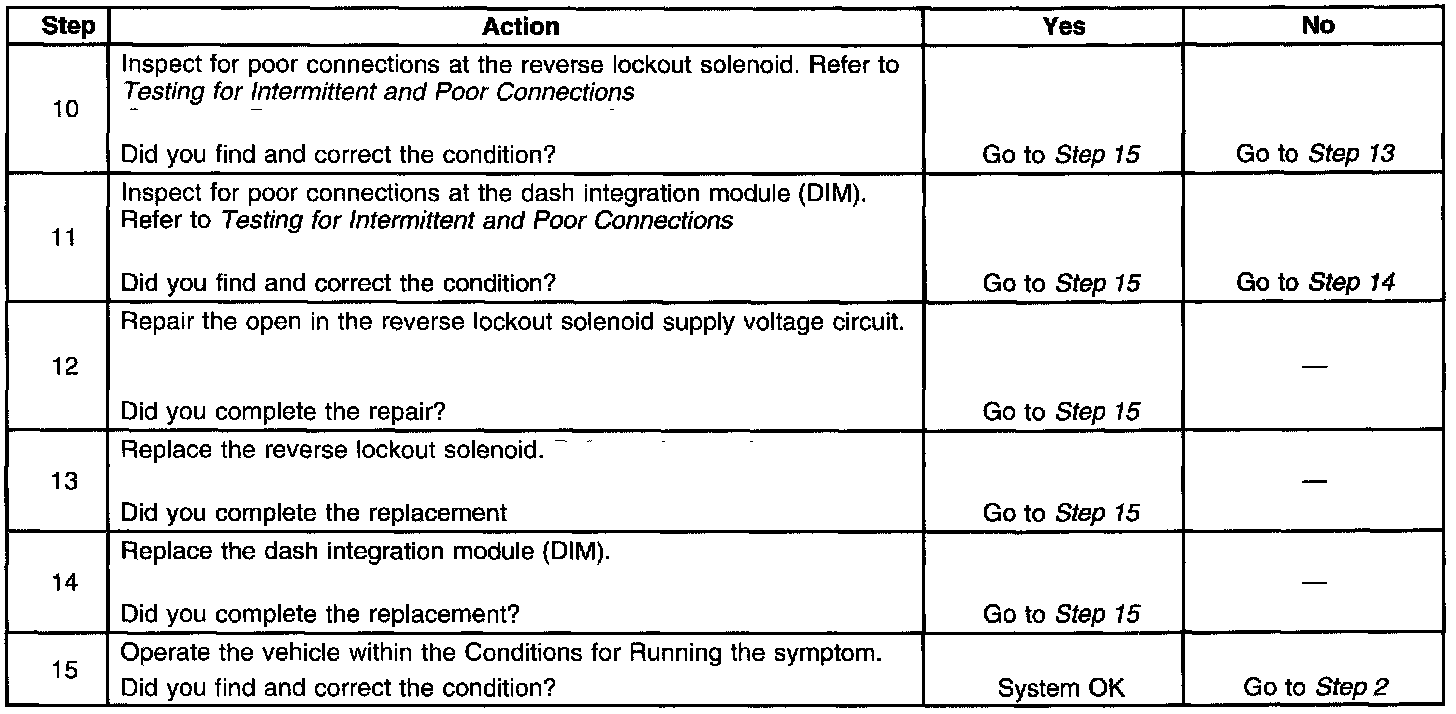

Step 10 - 15
