Differential Output Shaft: Service and Repair
Output Shaft ReplacementRemoval Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the differential carrier.
3. Remove the left drive axle.

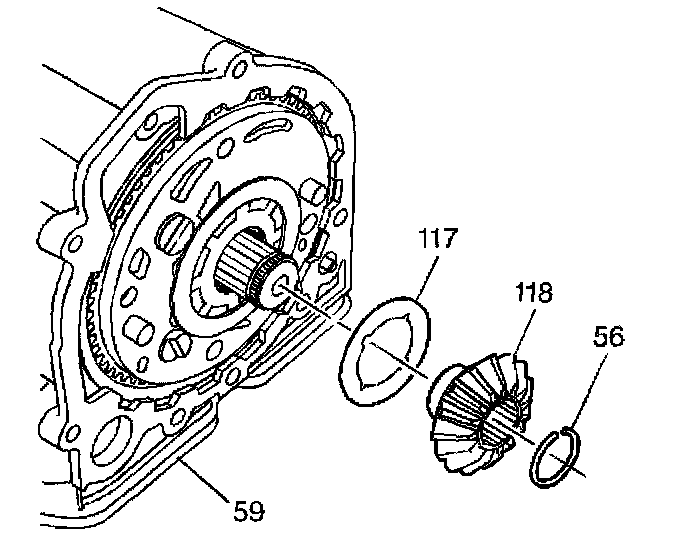

4. Push on the output shaft in order to expose the snap ring. Remove the output shaft snap ring (56).
5. Remove the left side differential gear (118). Remove the thrust washer (117).

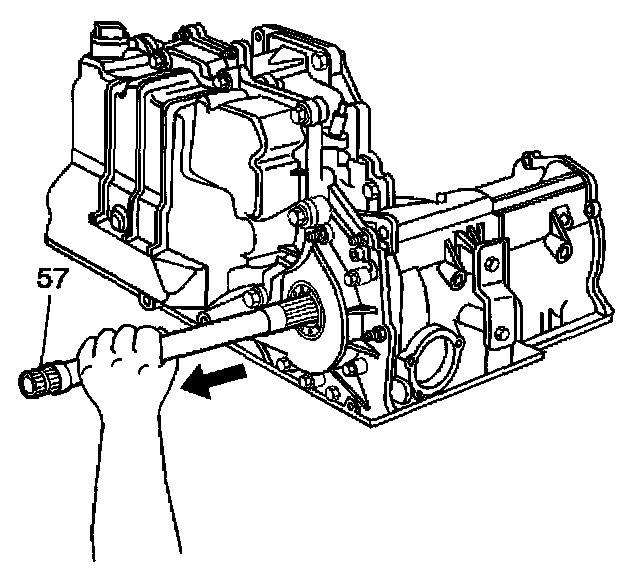

6. Remove the output shaft (57) through the opposite end of the case.
Installation Procedure
1. Inspect the output shaft (57) splines for burrs or damage. Inspect the snap rings (56) for overexpansion.
2. Install the snap rings (56) onto the output shaft and install the output shaft (57) from the channel plate side of the transmission.
3. Install the differential carrier.
4. Install the left drive axle.
