Fuse Block - Underhood

Fuse Block - Underhood Part 1:

Fuse Block - Underhood Part 2:

Fuse Block - Underhood Part 3:

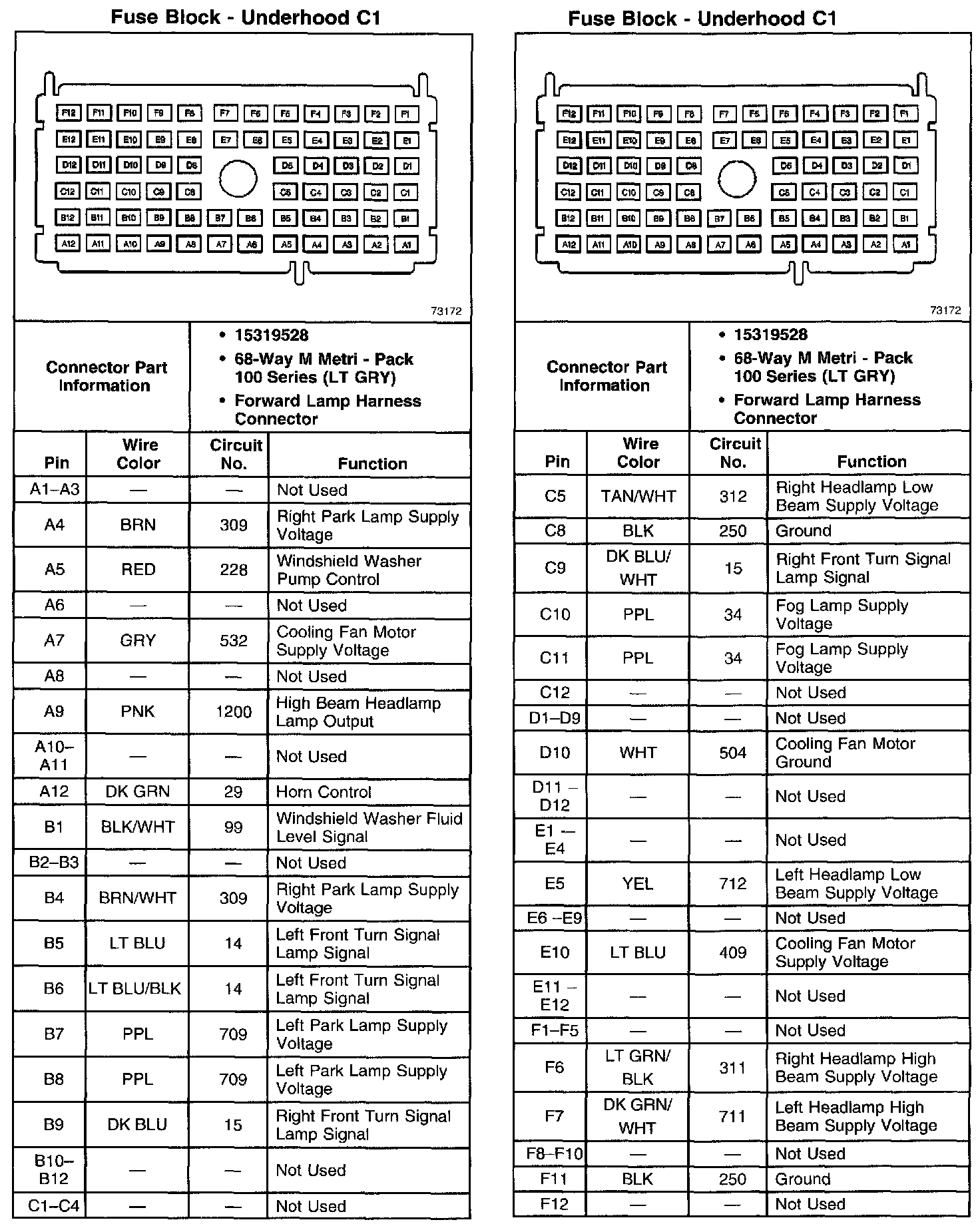

Fuse Block - Underhood C1:

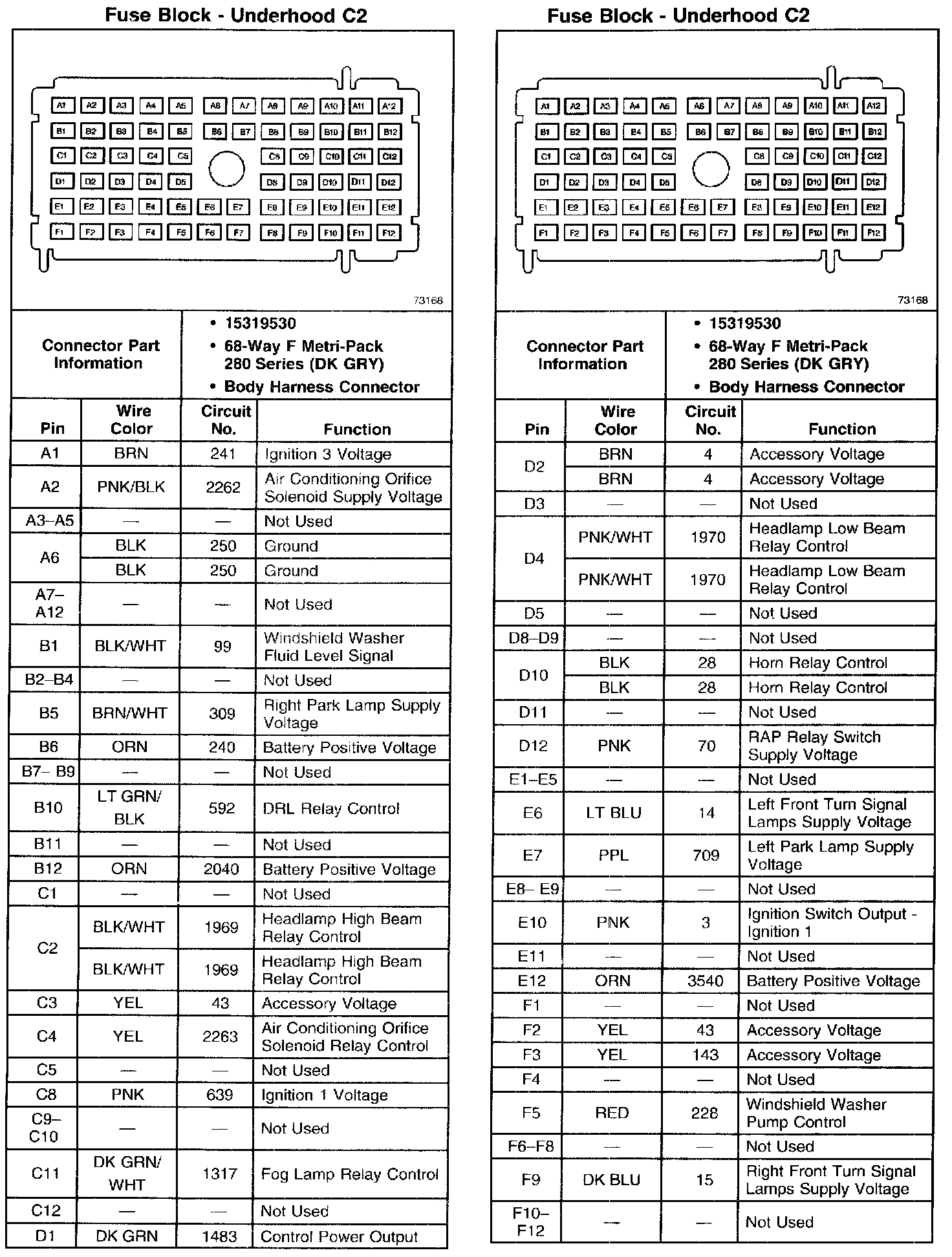

Fuse Block - Underhood C2:

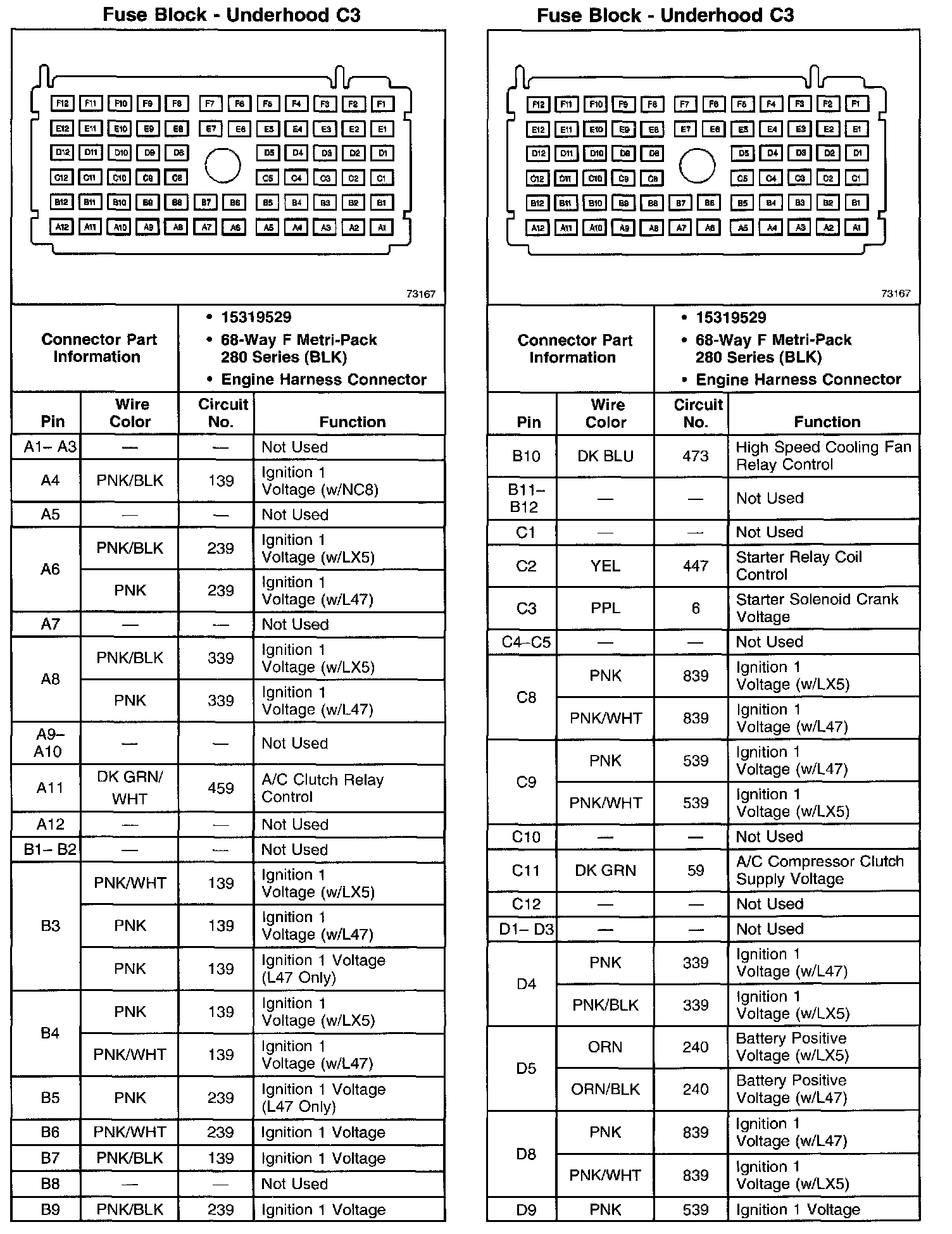

Fuse Block - Underhood C3 Part 1:

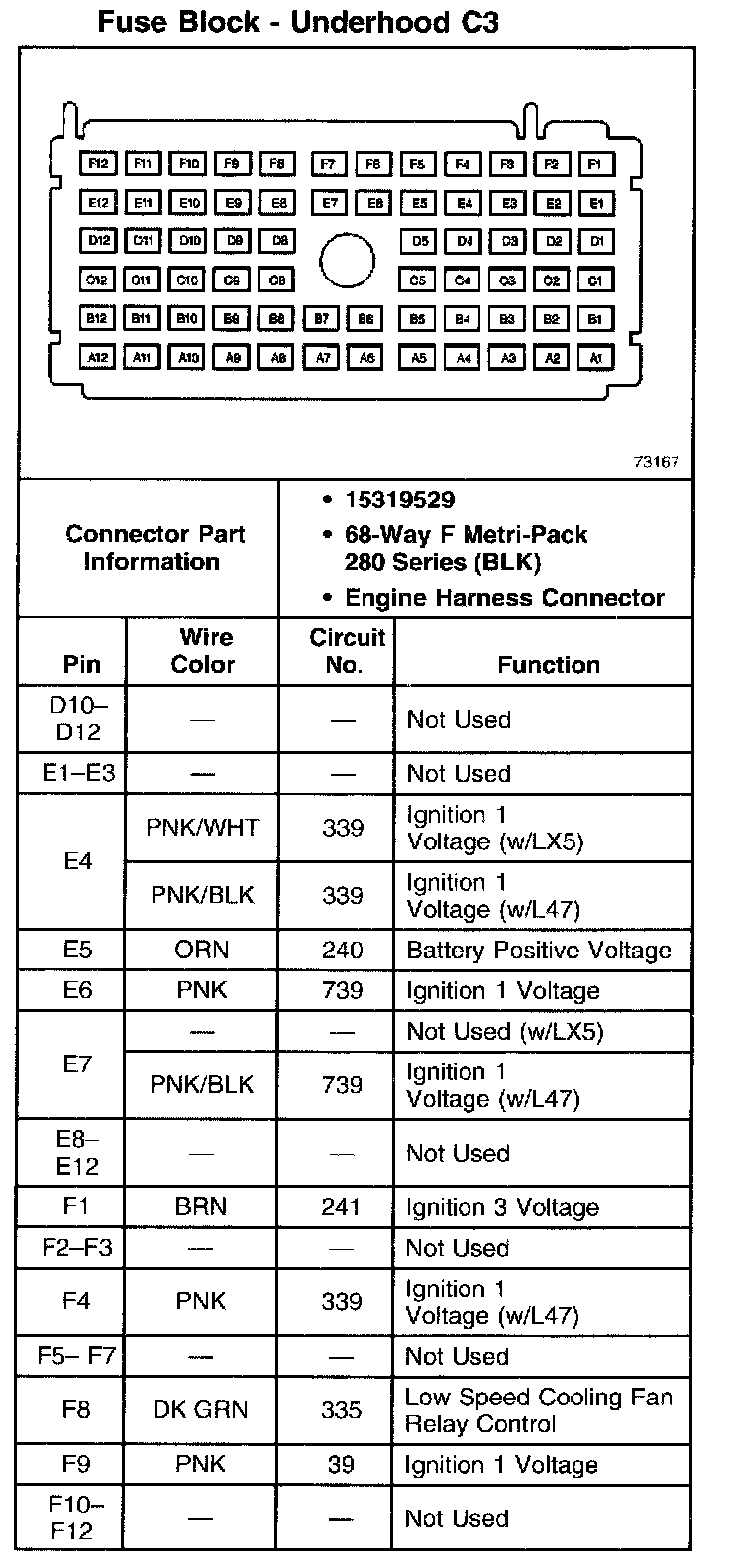

Fuse Block - Underhood C3 Part 2:

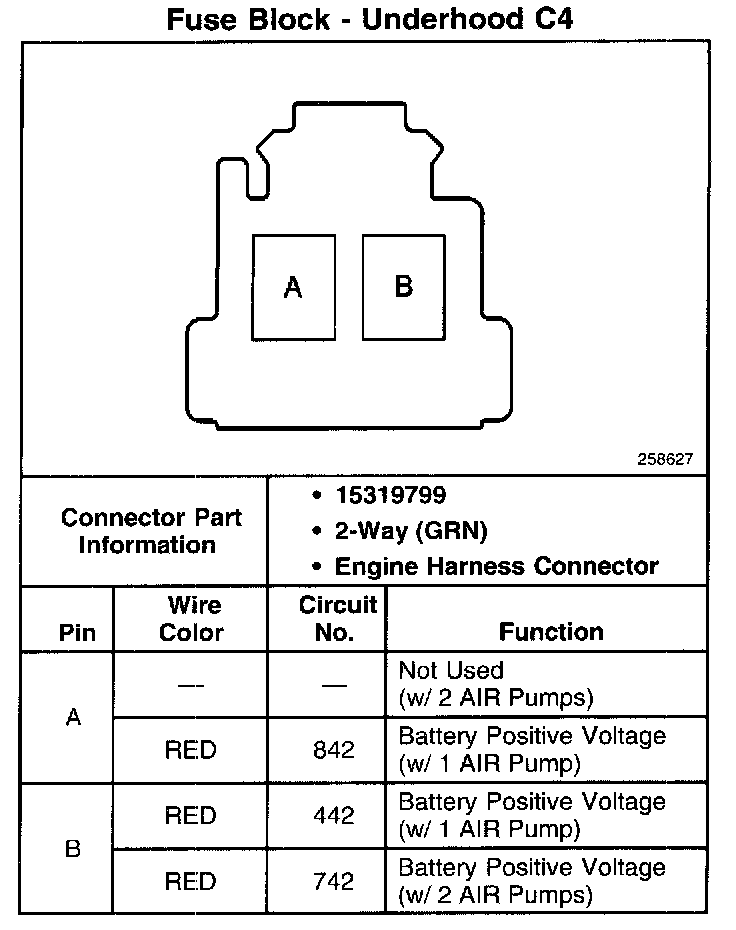

Fuse Block - Underhood C4:

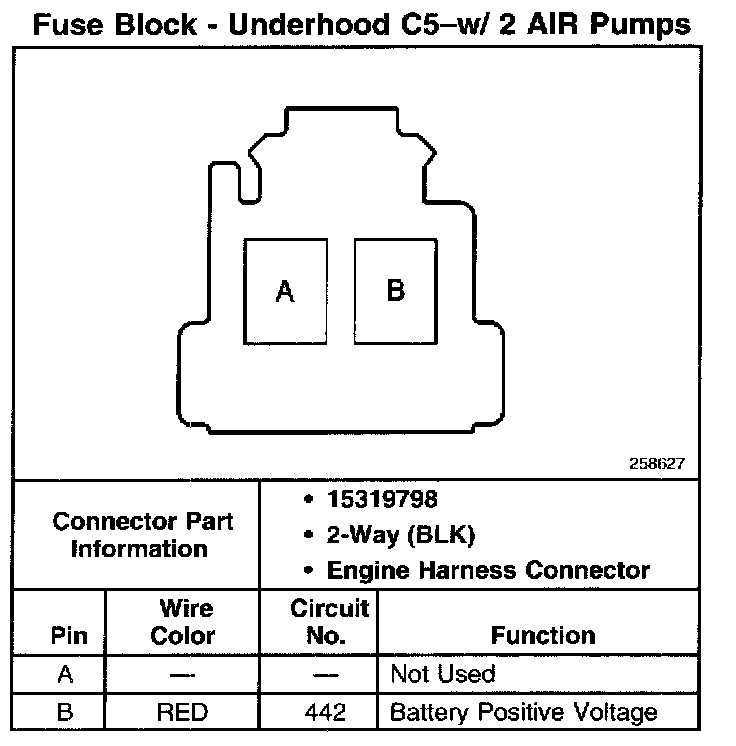

Fuse Block - Underhood C5-W/2 Air Pumps:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
