Fuse Block - Underhood

Power Distribution Schematics: Battery Feed To The Fuse Block-Underhood:

Power Distribution Schematics: L47 IGN 1, OXY SEN, DIS Fuses And IGN 1 Relay (Fuse Block-Underhood):

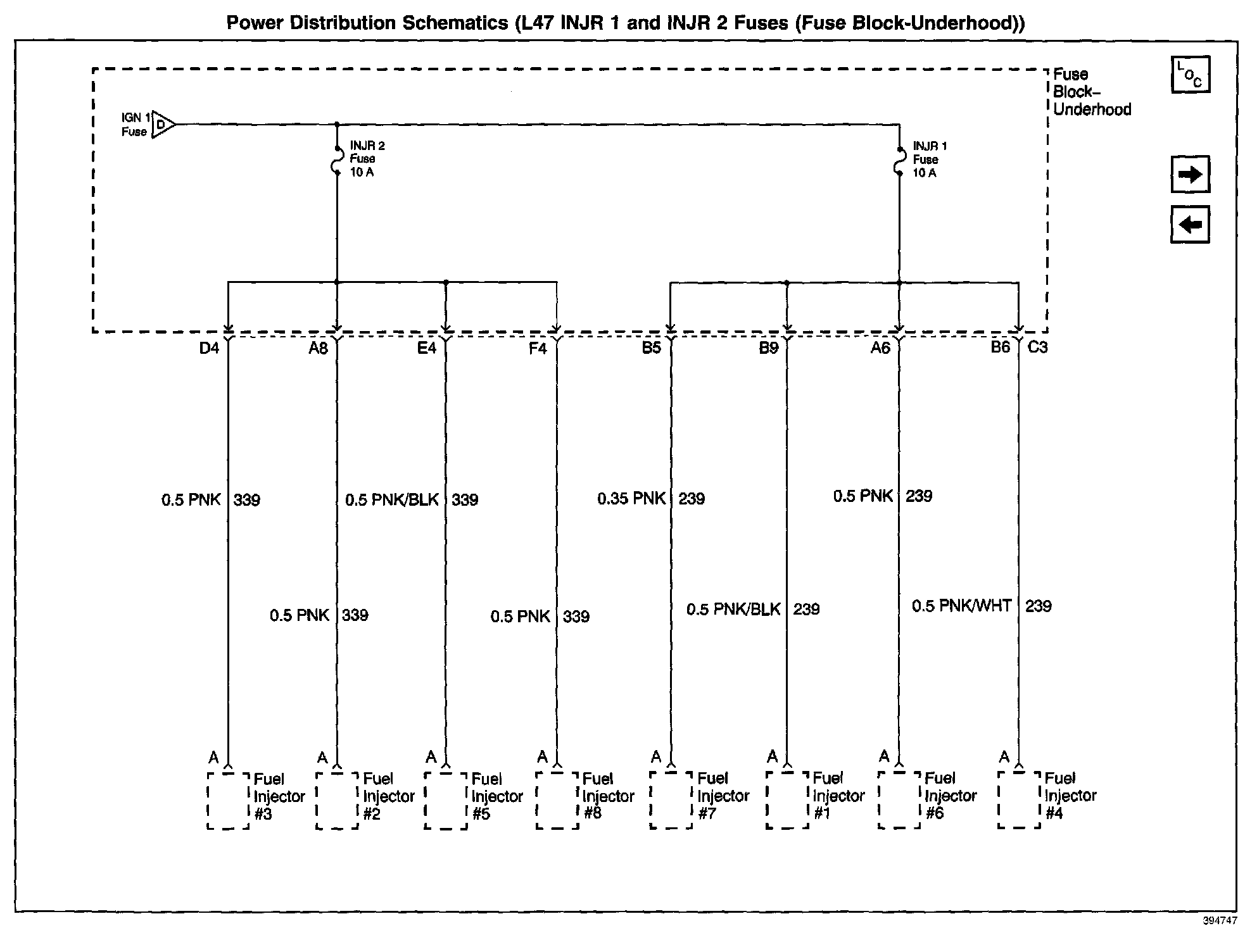

Power Distribution Schematics: L47 INJR 1 And INJR 2 Fuses (Fuse Block-Underhood):

Power Distribution Schematics: TRANS, PCM IGN, CR CONT Fuses And Start 1, HVAC SOL Relays (Fuse Block-Underhood):

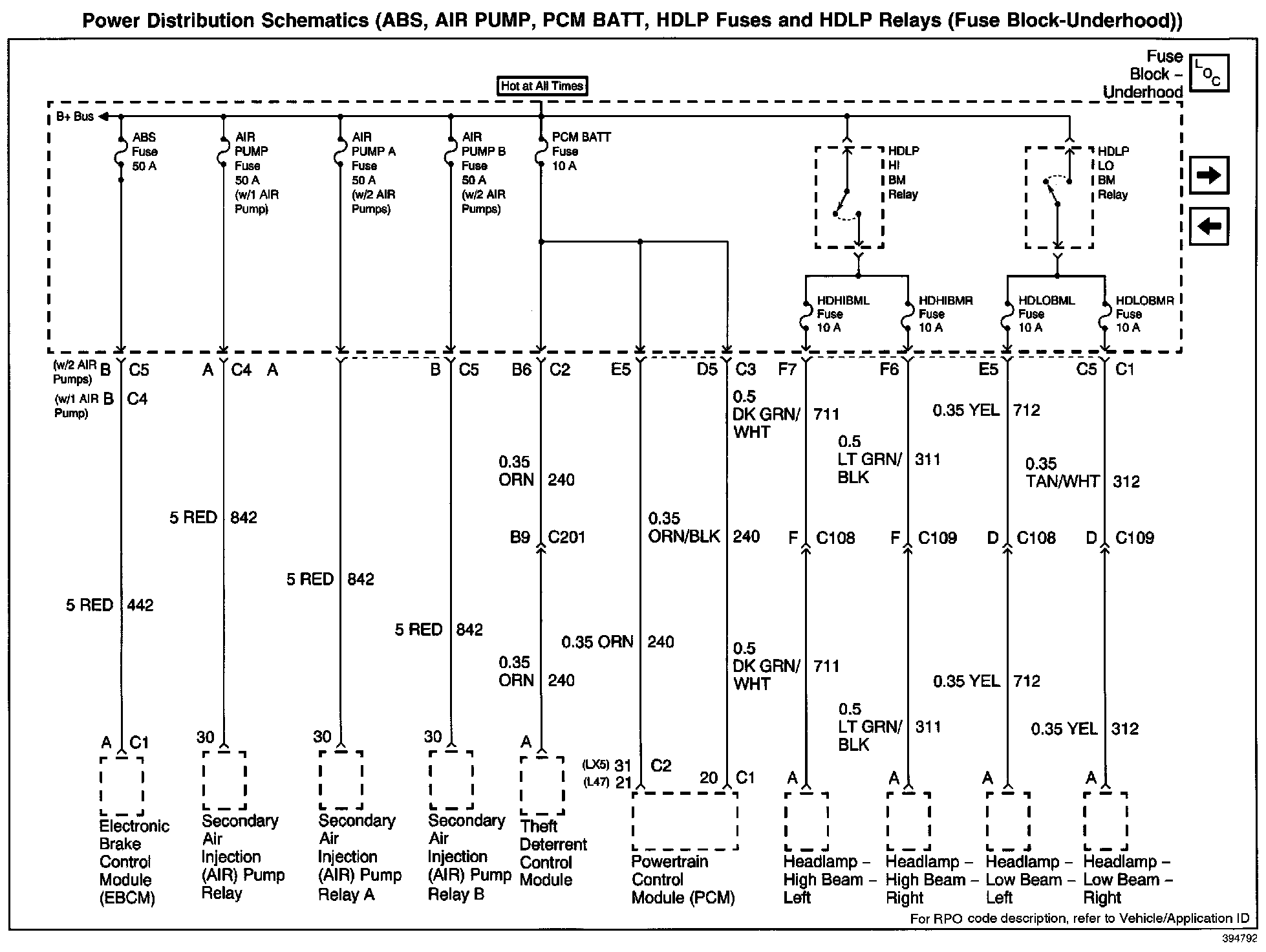

Power Distribution Schematics: ABS, AIR PUMP, PCM BATT, HDLP Fuses And HDLP Relays (Fuse Block-Underhood):

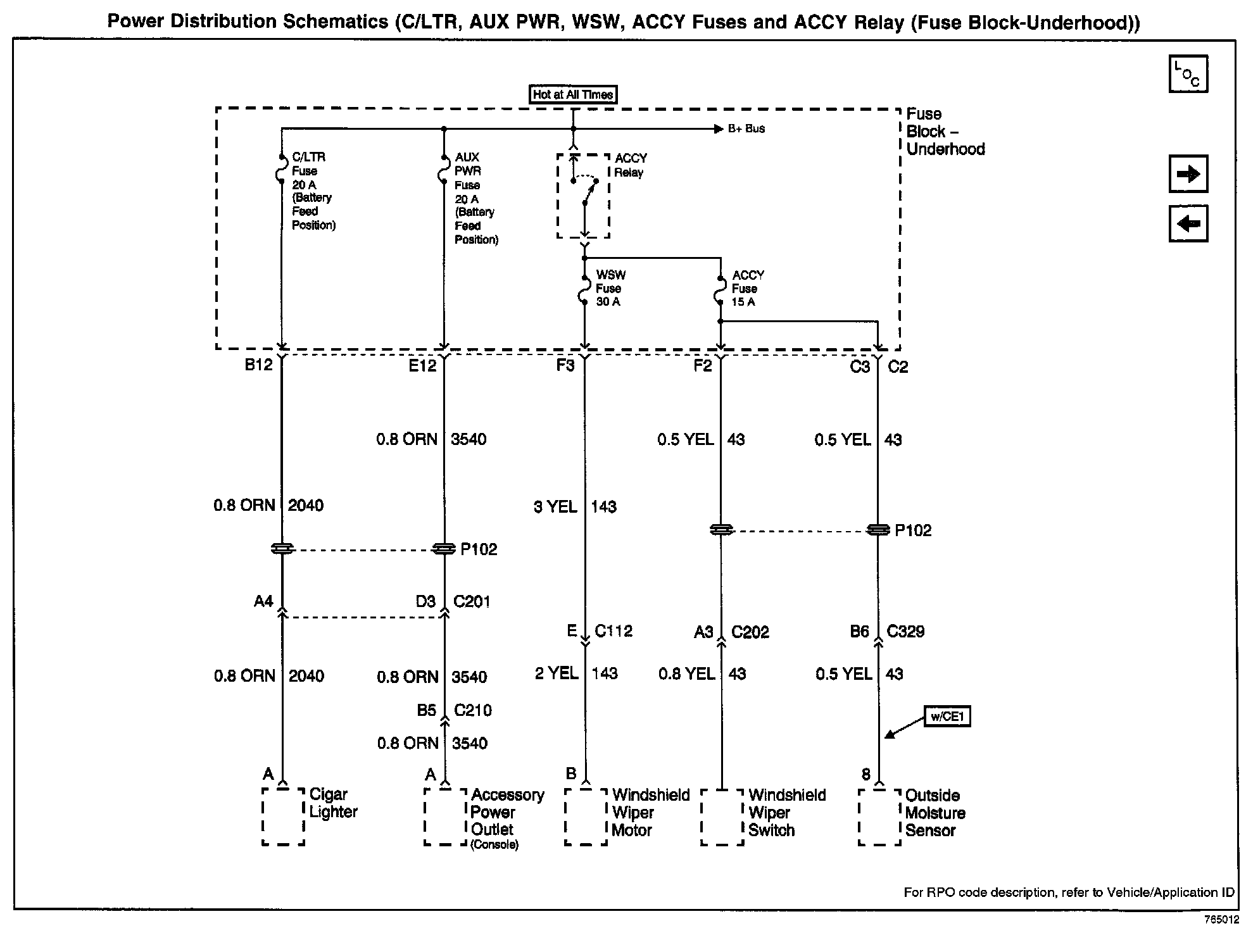

Power Distribution Schematics: C/LTR, AUX PWR, WSW, ACCY Fuses And ACCY Relay (Fuse Block-Underhood):

Power Distribution Schematics: LP PKL, LP RKR, DIMR Fuses (Fuse Block-Rear):

Power Distribution Schematics: TSIG/HAZ, STOP LAMP, AUDIO, CD, CIGAR Fuses And CIGAR Relay (Fuse Block-Rear):

Power Distribution Schematics: IGN SW Fuse (Fuse Block-Rear):

Power Distribution Schematics: IGN SW (Fuse Block-Rear):

Power Distribution Schematics: IGN 3 RR, ABS, HVAC Fuses (Fuse Block-Rear):
