Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Schematics By Circuit >> G201 Part 2

G201 Part 2

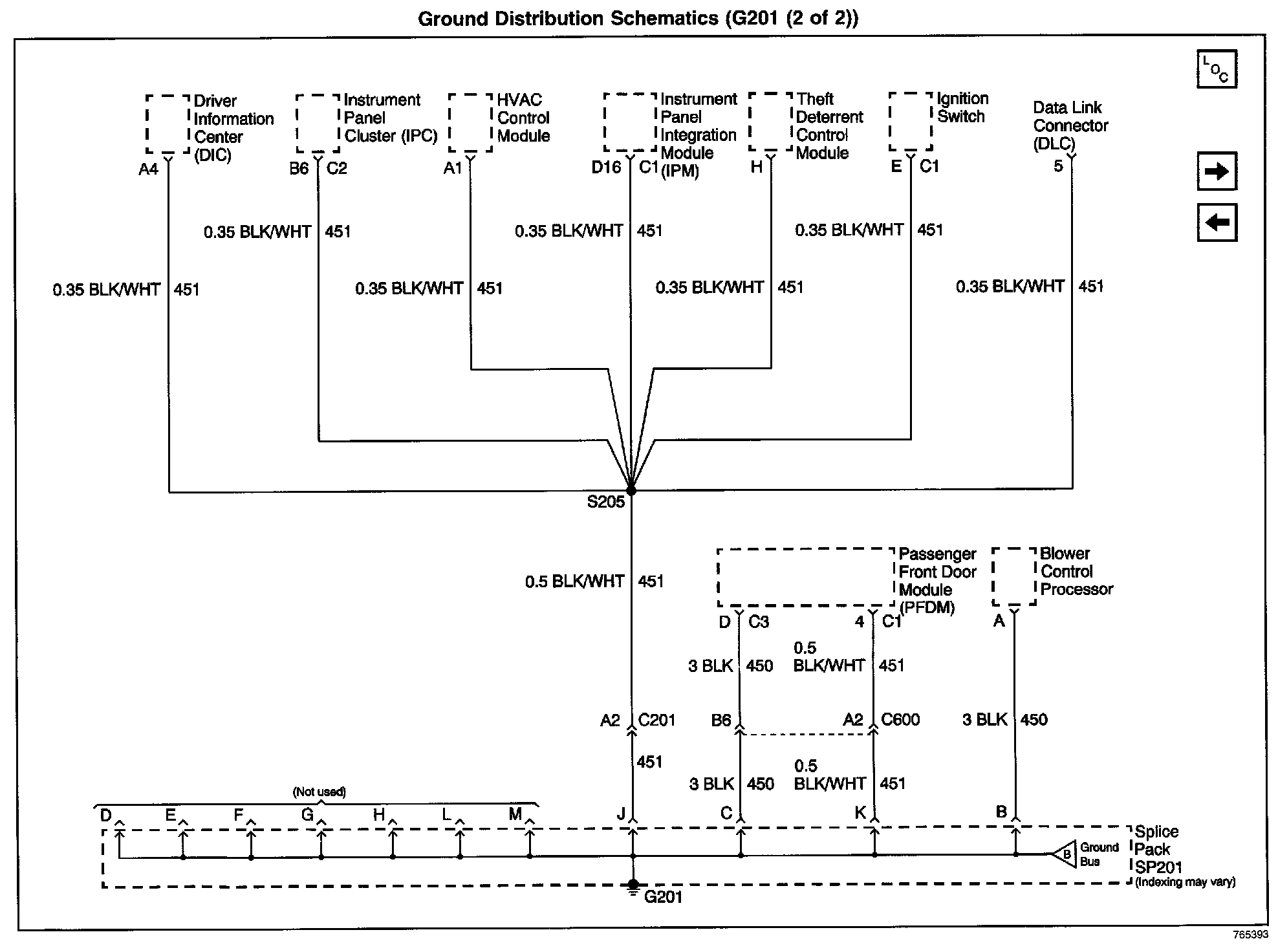

Ground Distribution Schematics: G201 Part 2:
