4T80-E Automatic Transaxle

Automatic Transaxle - 4T80-E

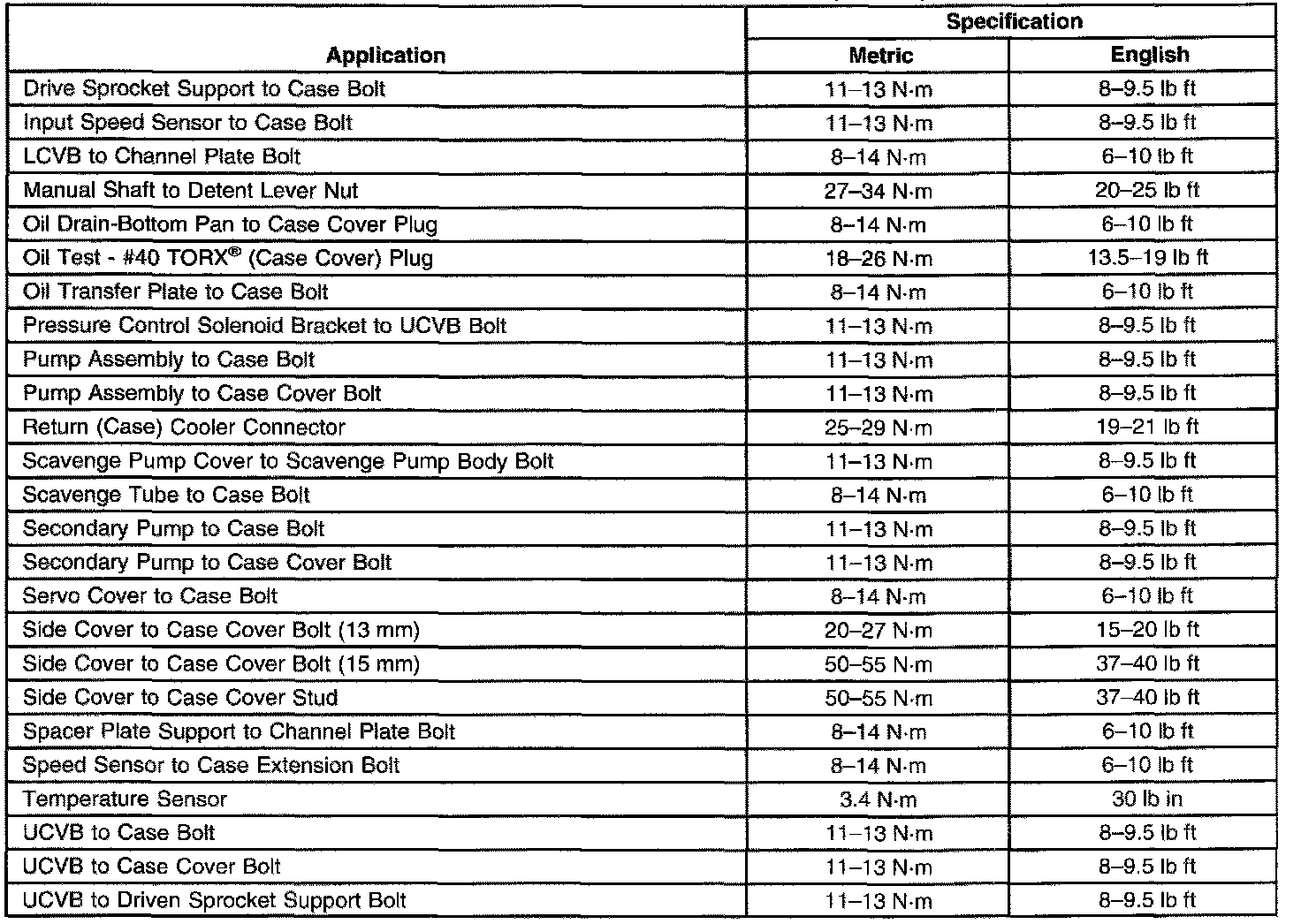

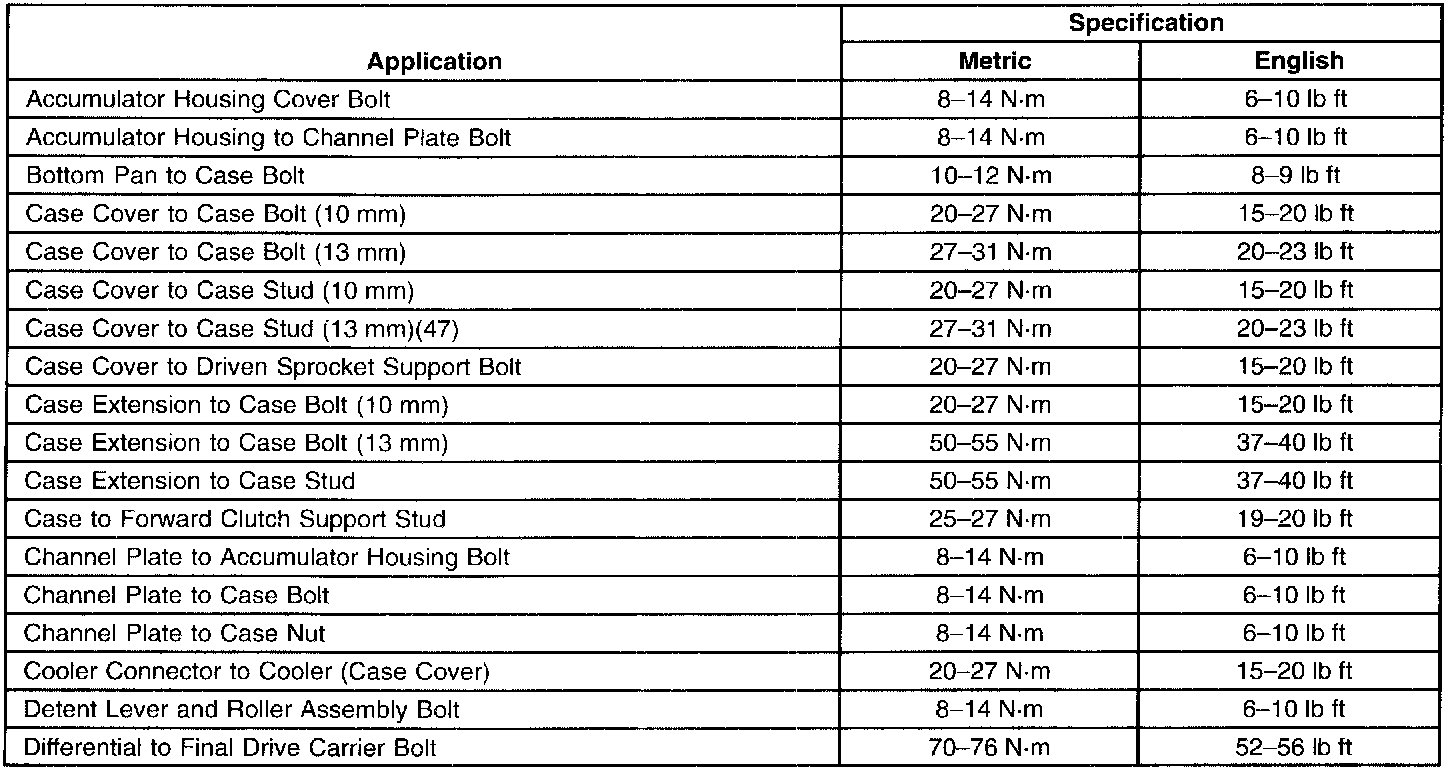

Fastener Tightening Specifications

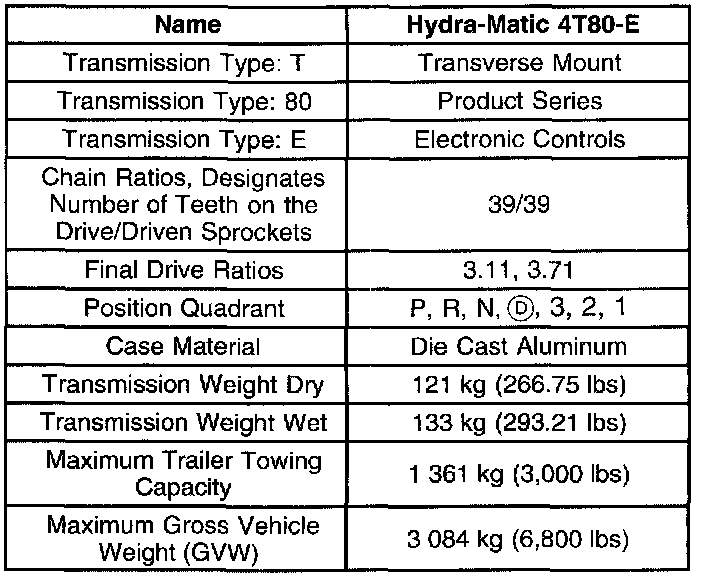

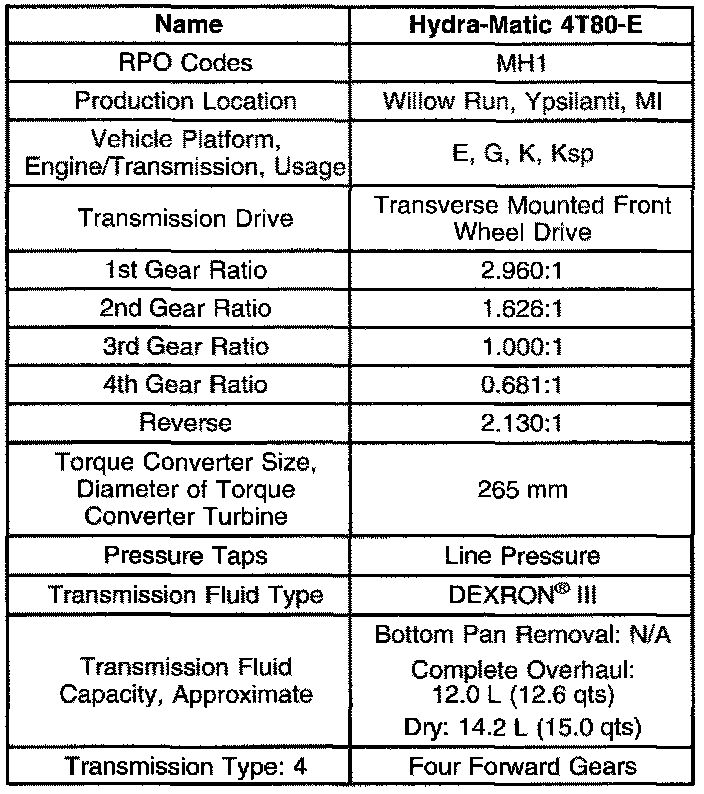

Transmission General Specifications

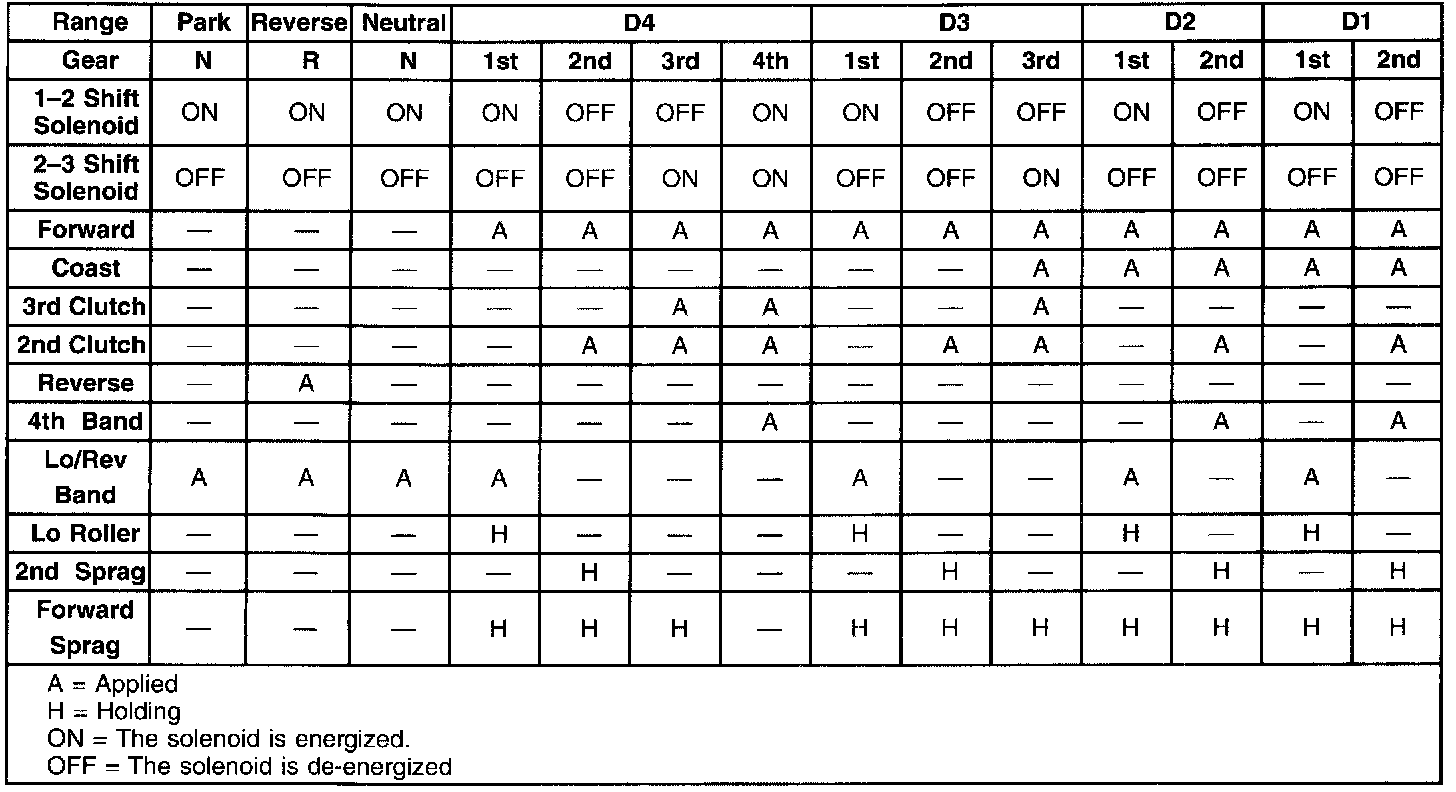

Range Reference

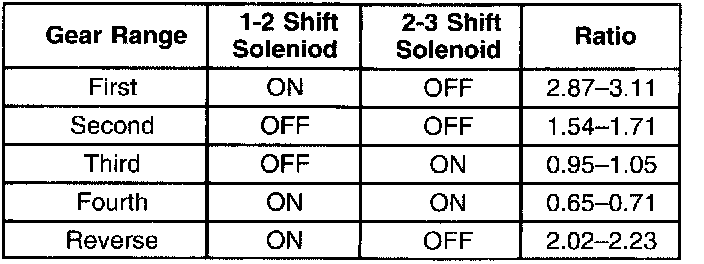

Shift Solenoid Valve State and Gear Ratio

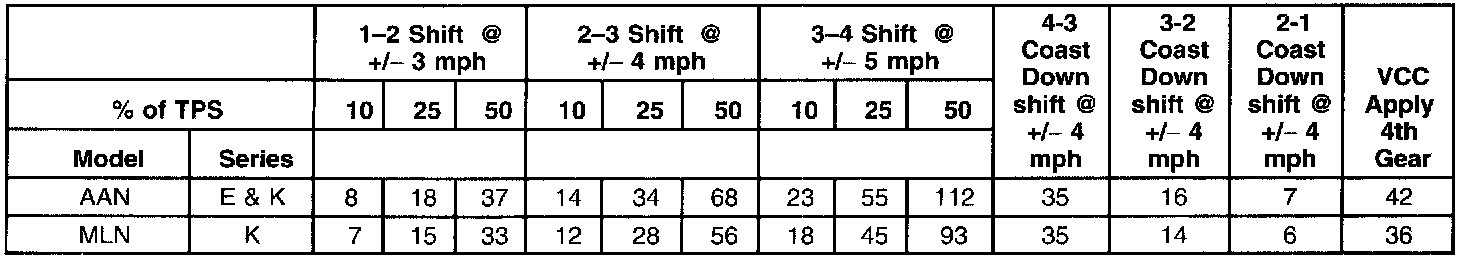

Shift Speed

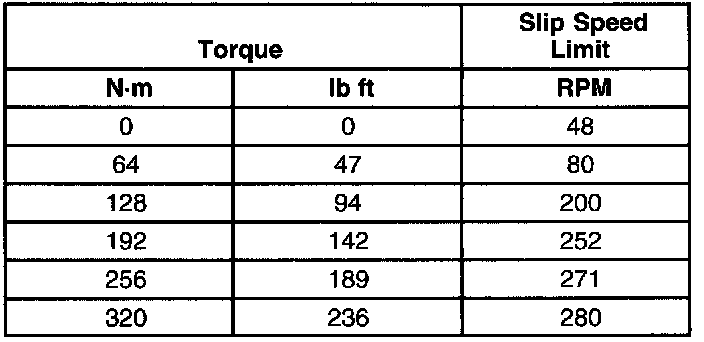

Torque Converter Clutch (TCC) Slip Speed

Flexplate Torque/Sequence, A/T Service and Repair

Transmission Pan Torque/Sequence, A/T Service and Repair
