Inflatable Restraint Front End Dicriminating Sensor

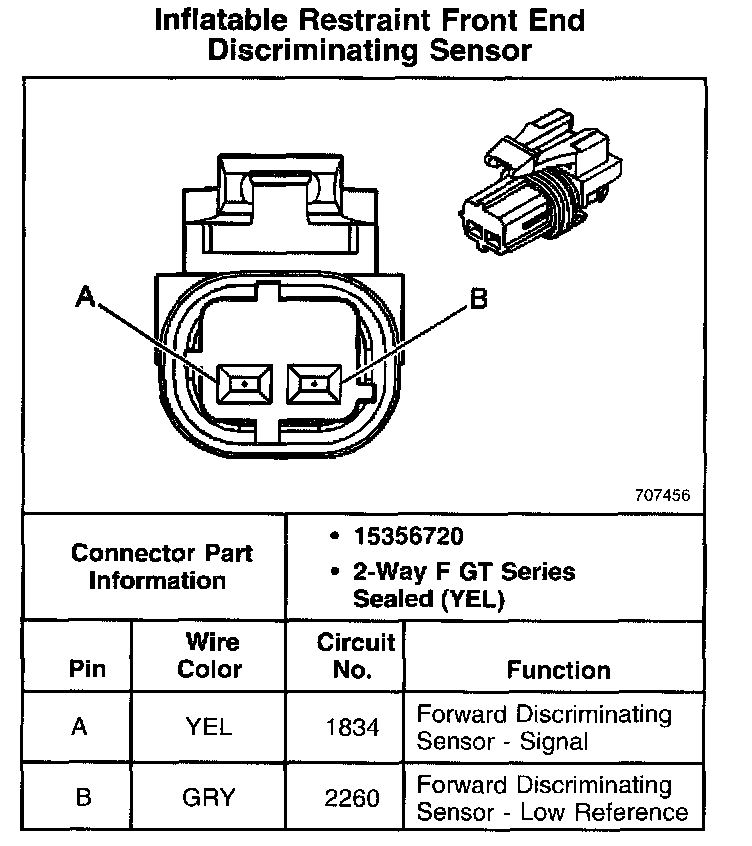

Inflatable Restraint Front End Dicriminating Sensor:
