Fuel Gauge Sender: Specifications

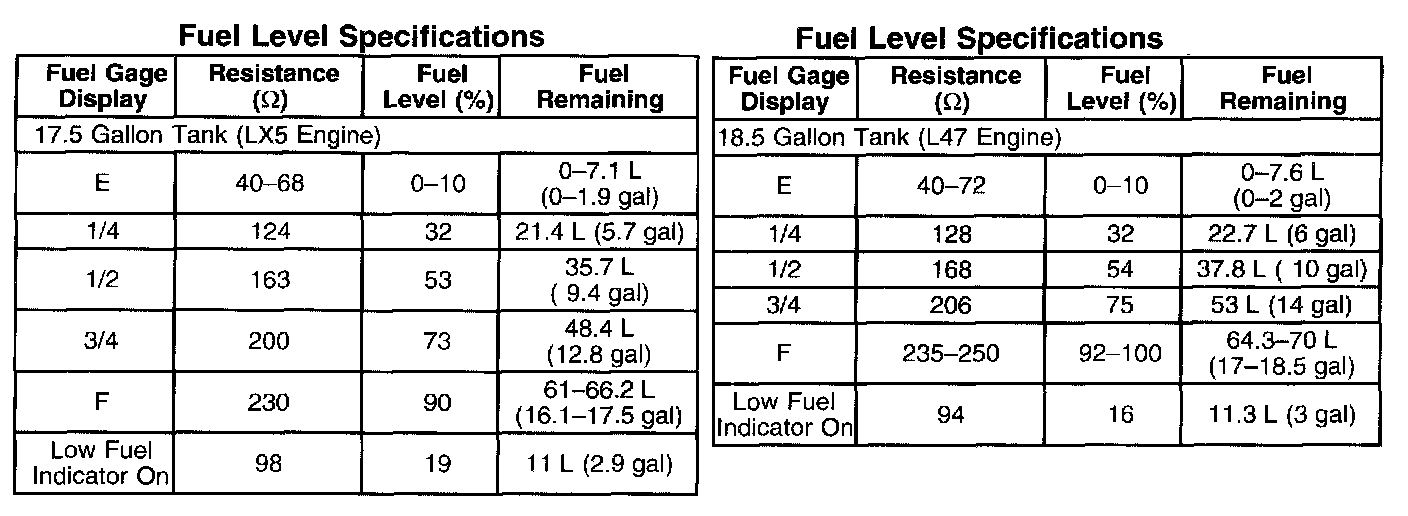

Fuel Level Specifications:

The values in the are approximate values base on information obtained from properly operating vehicles. Actual results may vary slightly.

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
