Ambient Air Temperature Sensor Replacement

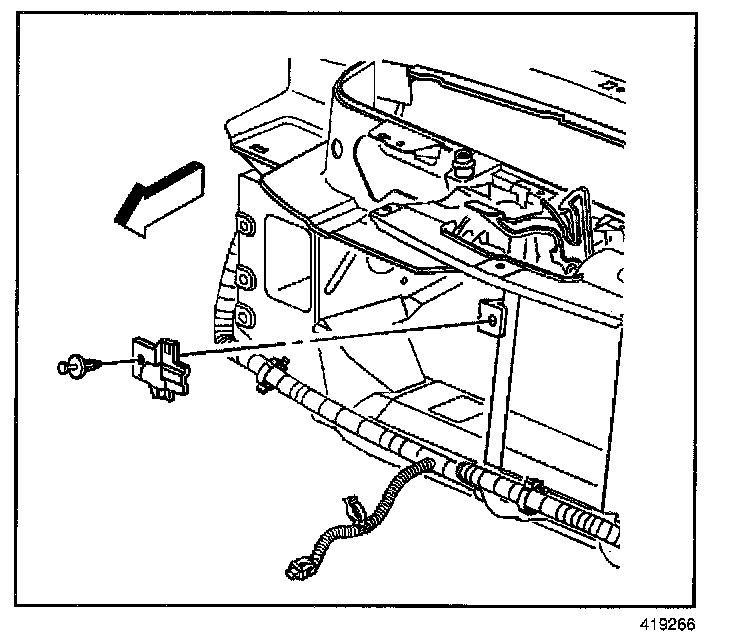

REMOVAL PROCEDURE




1. Disconnect the electrical connector from the sensor.
2. Remove the retainer and the ambient air temperature sensor.

INSTALLATION PROCEDURE




1. Install the ambient air temperature sensor with the retainer.
2. Connect the electrical connector to the sensor.
