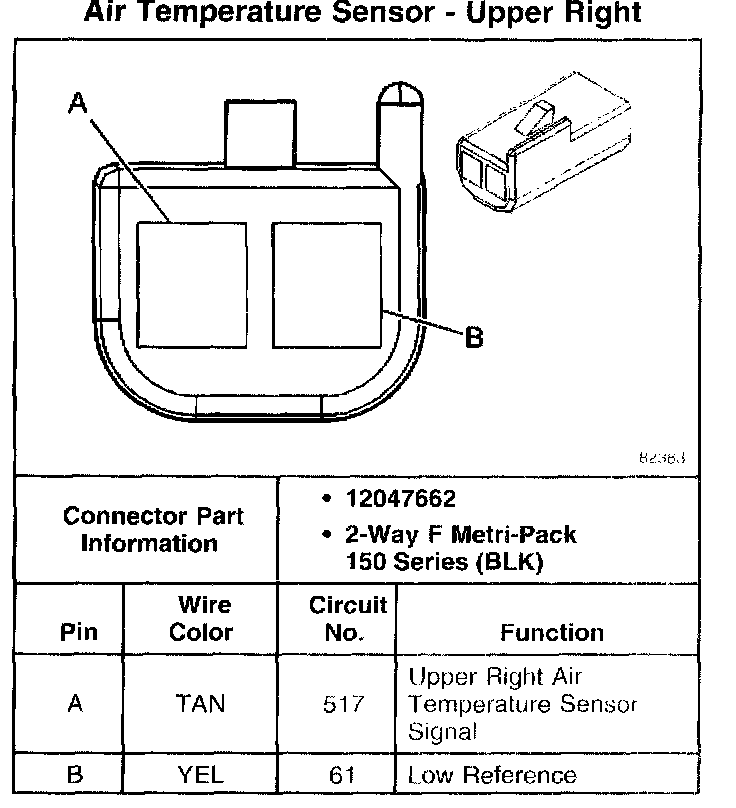

Air Temperature Sensor - Upper Right

Air Temperature Sensor - Upper Right - HVAC Systems - Automatic:
