Front (Right)

Wheel Speed Sensor Jumper Harness Replacement - Front (Right)

Removal Procedure

Important: The wheel speed sensor wiring is included in the engine harness. The wiring between the wheel speed sensor and the heat shrink sealed splices is high-flex cable and must not be repaired or spliced. This procedure replaces the high-flex cable with a jumper harness from a supplied repair kit.





1. Turn OFF the ignition.
2. Raise the vehicle. Refer to Vehicle Lifting.
3. Remove the right front tire and wheel assembly.

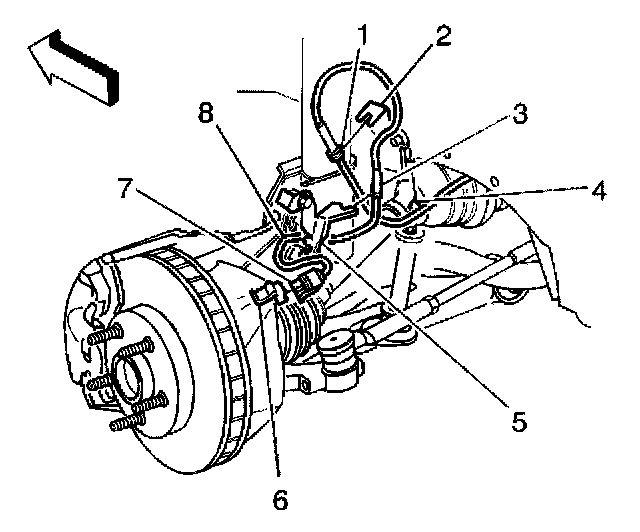

4. Disconnect the wheel speed sensor connector (7) from the wheel speed sensor (6).
5. Disconnect the harness grommet (3) from the strut bracket (5).
6. Disconnect the harness grommet (1) from the rail bracket (2).
7. Disconnect the harness clip (4) from the rail bracket (2).





8. Complete the following depending on engine RPO:
^ If equipped with LX5 complete the following:
8.1. Disconnect the vehicle speed sensor electrical connector.

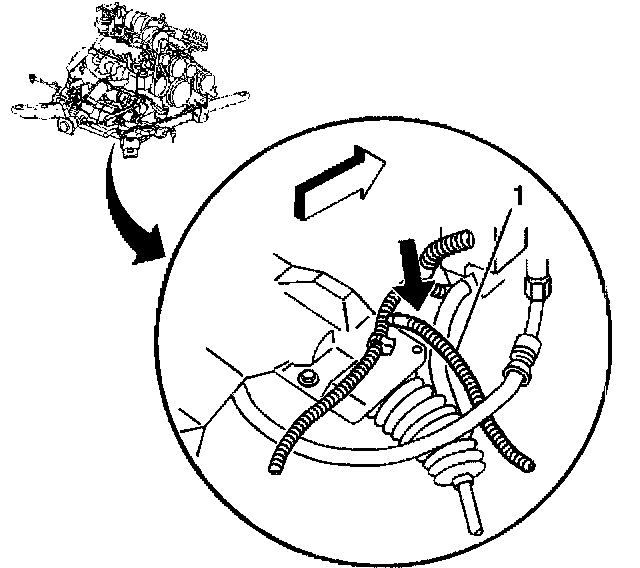

8.2. Cut the engine harness conduit (1) at the shown location.
^ If equipped with L47 complete the following:
8.3. Disconnect the vehicle speed sensor electrical connector.
8.4. Lower the vehicle. Refer to Vehicle Lifting.
8.5. Remove the engine harness from the engine harness retainer clip and carefully pull the harness upward to access the wheel speed sensor harness.

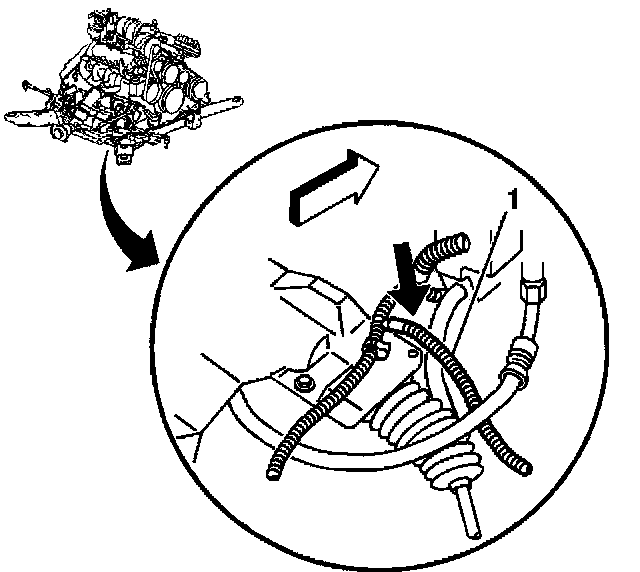

8.6. Cut the engine harness conduit to locate the 2 heat shrink sealed splices.

Installation Procedure





1. Replace the wheel speed sensor jumper harness.





2. Complete the following depending on engine RPO:
2.1. If equipped with LX5 complete the following:
2.2. Connect the vehicle speed sensor electrical connector.
2.3. If equipped with L47 complete the following:
2.3.1. Route the wheel speed sensor jumper through the engine compartment to the wheel well.
2.3.2. Connect the engine harness to the engine harness retainer.
2.3.3. Raise the vehicle. Refer to Vehicle Lifting.
2.3.4. Connect the vehicle speed sensor electrical connector.

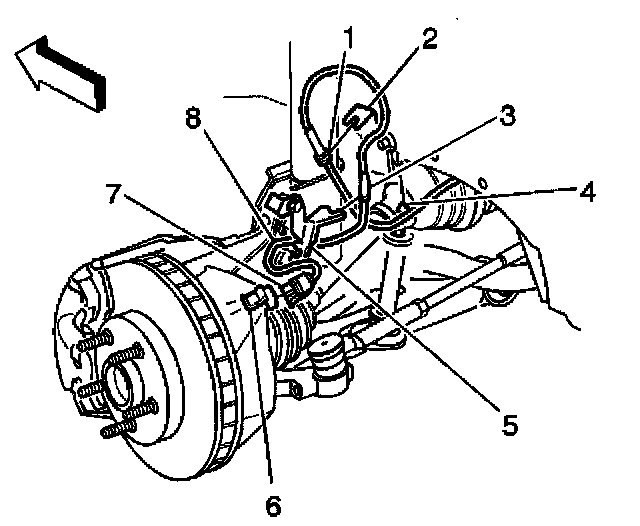

3. Connect the wheel speed sensor connector (7) to the wheel speed sensor (6).
4. Connect the harness grommet (3) to the strut bracket (5).
5. Connect the harness grommet (1) to the rail bracket (2).
6. Connect the harness clip (4) to the rail bracket (2).
7. Install the right front tire and wheel assembly.
8. Lower the vehicle. Refer to Vehicle Lifting.
9. Perform the ABS Diagnostic System Check.
