Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> Seat Recline Switch-Front Passenger

Seat Recline Switch-Front Passenger

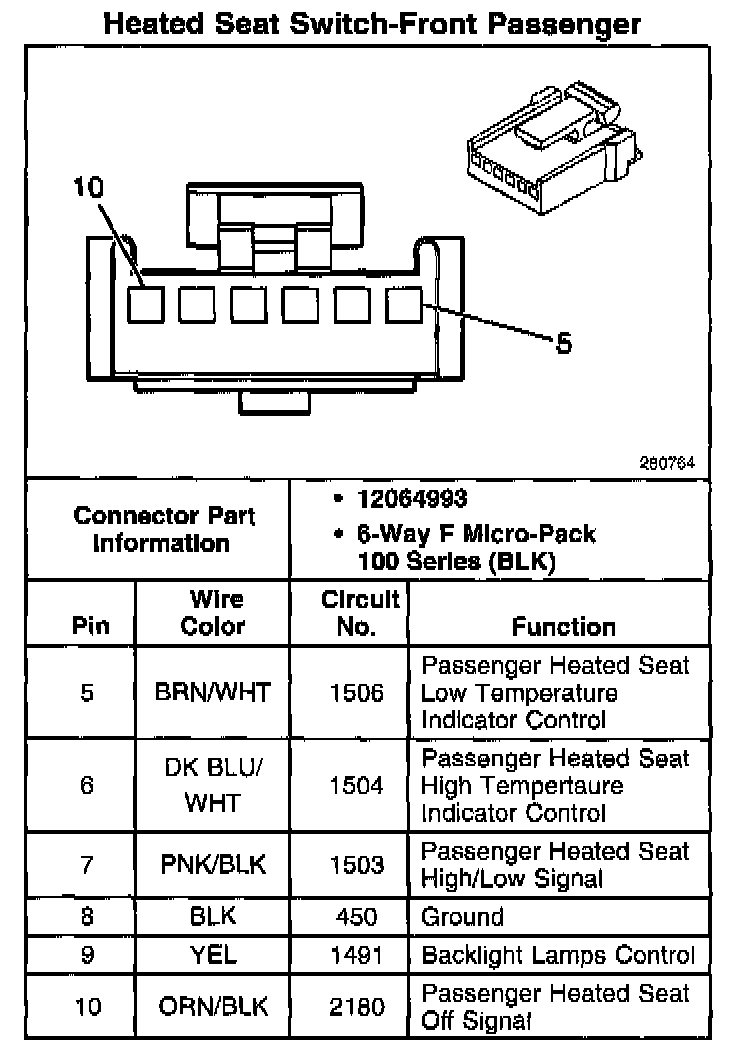

Heated Seat Switch - Front Passenger:

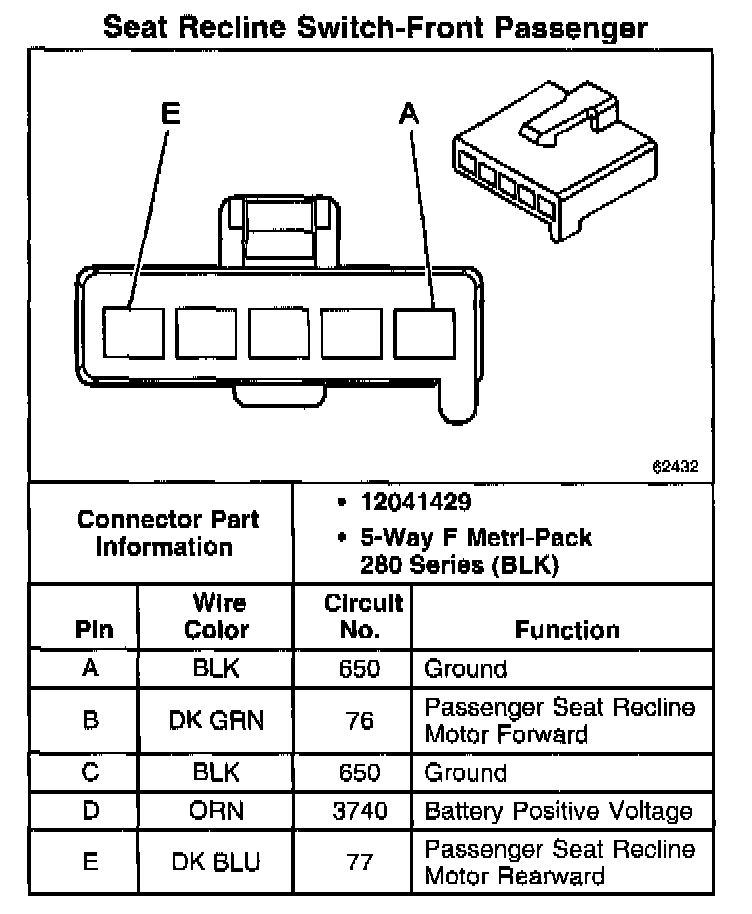

Seat Recline Switch-Front Passenger:
