Memory Positioning Switch: Service and Repair
MEMORY SEAT SWITCH REPLACEMENTREMOVAL PROCEDURE

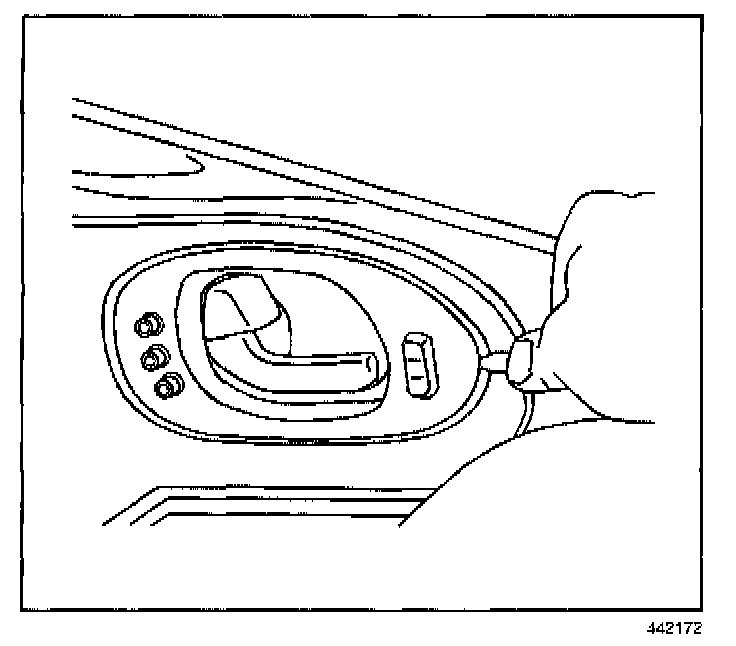

1. Remove the inside handle bezel from the door trim pad.
2. Remove the front door switch plate.
3. Disconnect the electrical connector for the memory seat switch through the power door switch opening in the door trim panel.

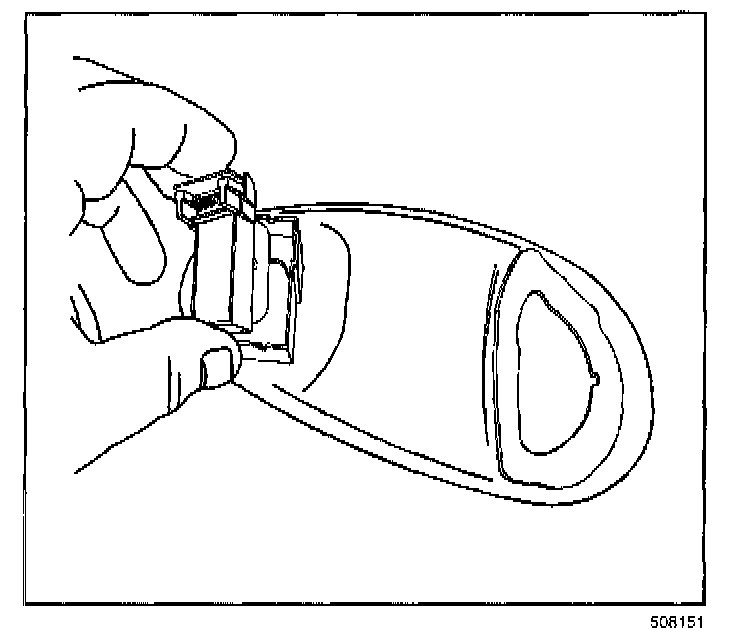

4. Remove the memory seat switch from the inside handle bezel by releasing the tabs with a small flat bladed tool.
5. Gently remove the electrical wiring for the memory seat switch from behind the door trim panel.
INSTALLATION PROCEDURE
1. Snap the memory seat switch to the inside handle bezel.
2. Route the electrical wiring for the memory seat switch behind the door trim panel.
3. Connect the memory seat switch electrical connector.
4. Install the front door switch plate.
5. Install the inside handle bezel to the door trim panel.
