Door Lock Cylinder Switch: Diagrams

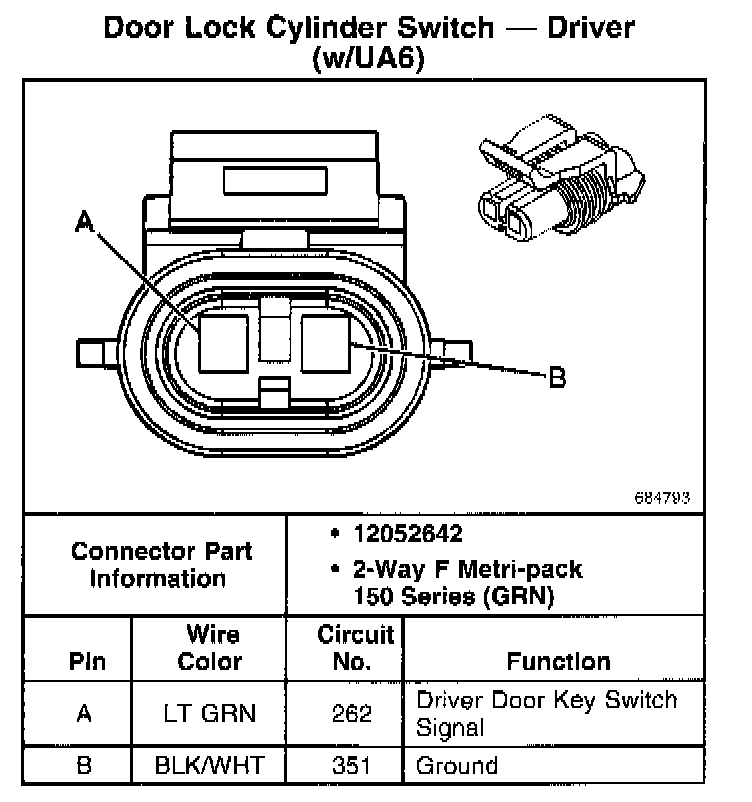

Door Lock Cylinder Switch - Driver (w/UA6):

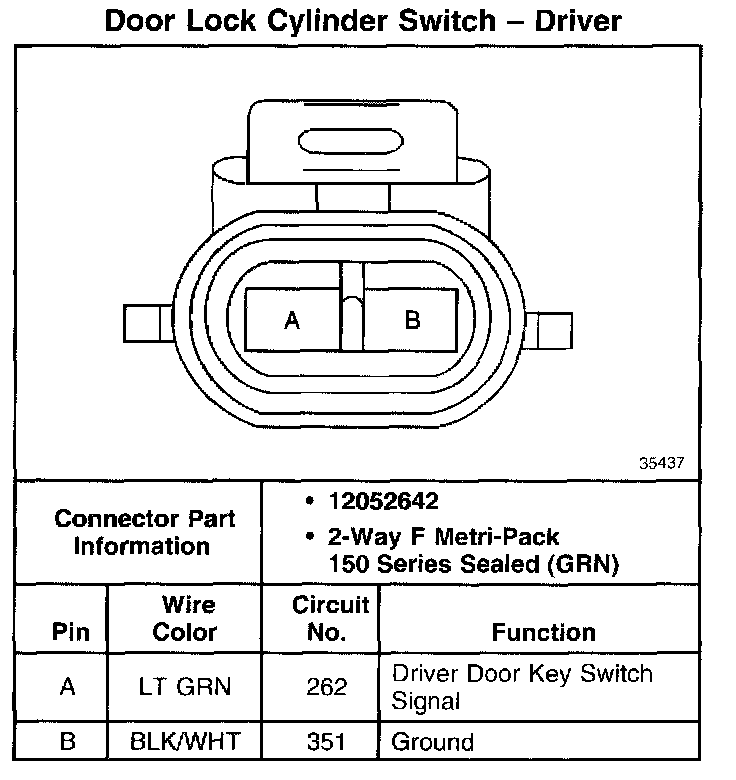

Door Lock Cylinder Switch - Driver:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
