Ignition Control Module Replacement - Bank 1

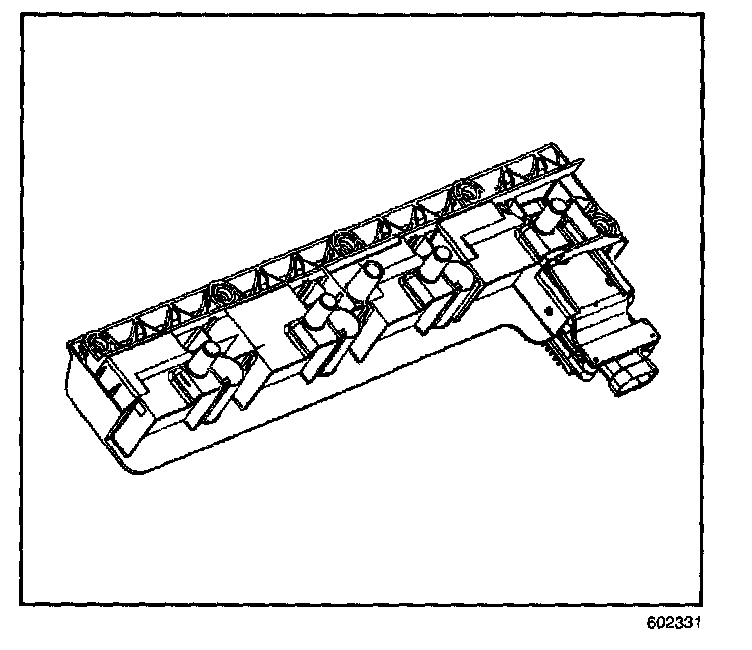

REMOVAL PROCEDURE




1. Remove the ignition coil cassette.
2. Remove the ignition control module retaining screws.
3. Remove the ignition control module.

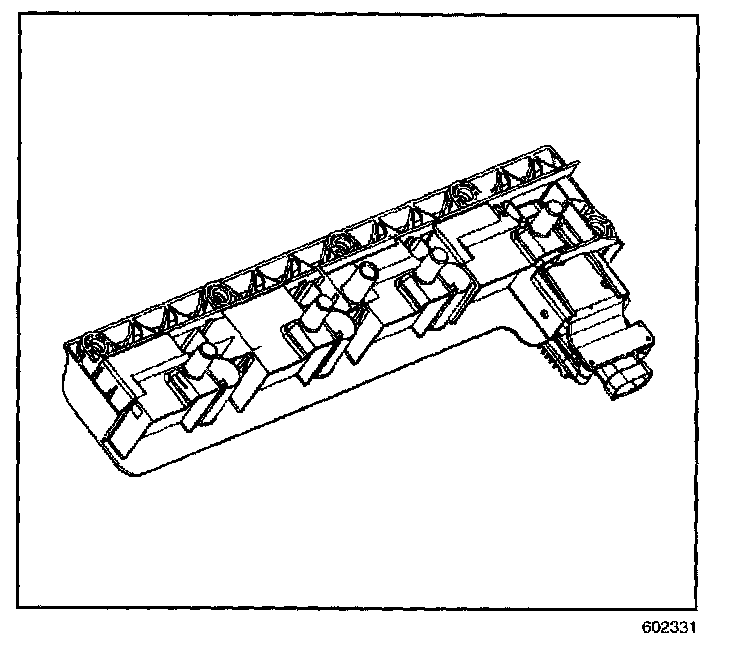

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the ignition control module.

Tighten
Tighten the ignition control module retaining screws to 0.8 N.m (7 lb in).

IMPORTANT: Ensure that the ignition cassette grounding spring and insulator are in place when installing the ignition cassette.

2. Connect the spark plug boots to the spark plugs.
3. Carefully install the ignition cassette. Refer to Ignition Coil(s) Replacement - Bank 1.
