Antenna Control Module: Service and Repair

ANTENNA MODULE REPLACEMENT

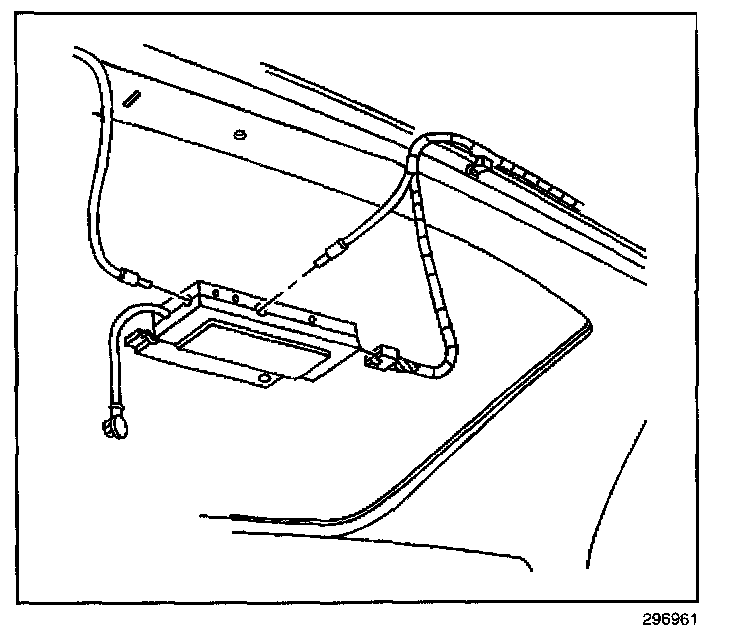

REMOVAL PROCEDURE




1. Lower the rear of the headliner far enough to access the antenna module. Refer to Headliner Replacement (with Sunroof) or Headliner Replacement (without Sunroof) in Interior Trim.
2. Disconnect the electrical connectors from the radio antenna module.
3. Remove the fastener retaining the radio antenna module to the roof beam.
4. Remove the radio antenna module.

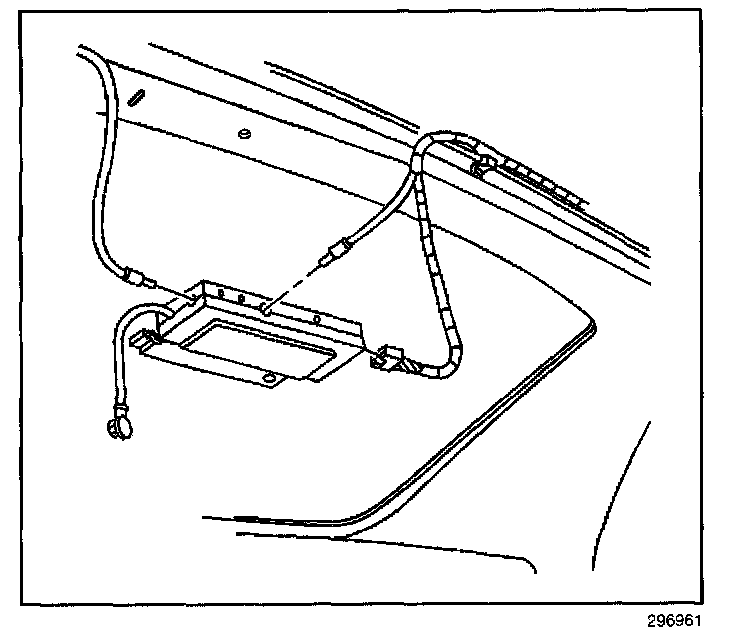

INSTALLATION PROCEDURE




1. Install the radio antenna module to the roof beam ensuring that the alignment tab is properly located.
2. Install radio module retaining fastener.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the radio module retaining fasteners to 9 N.m (80 lb in).

3. Connect the electrical connectors to the radio antenna module.
4. Install the headliner.
