Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Accessory Delay Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Retained Accessory Power (RAP) - Inoperative

Retained Accessory Power (RAP) - Inoperative

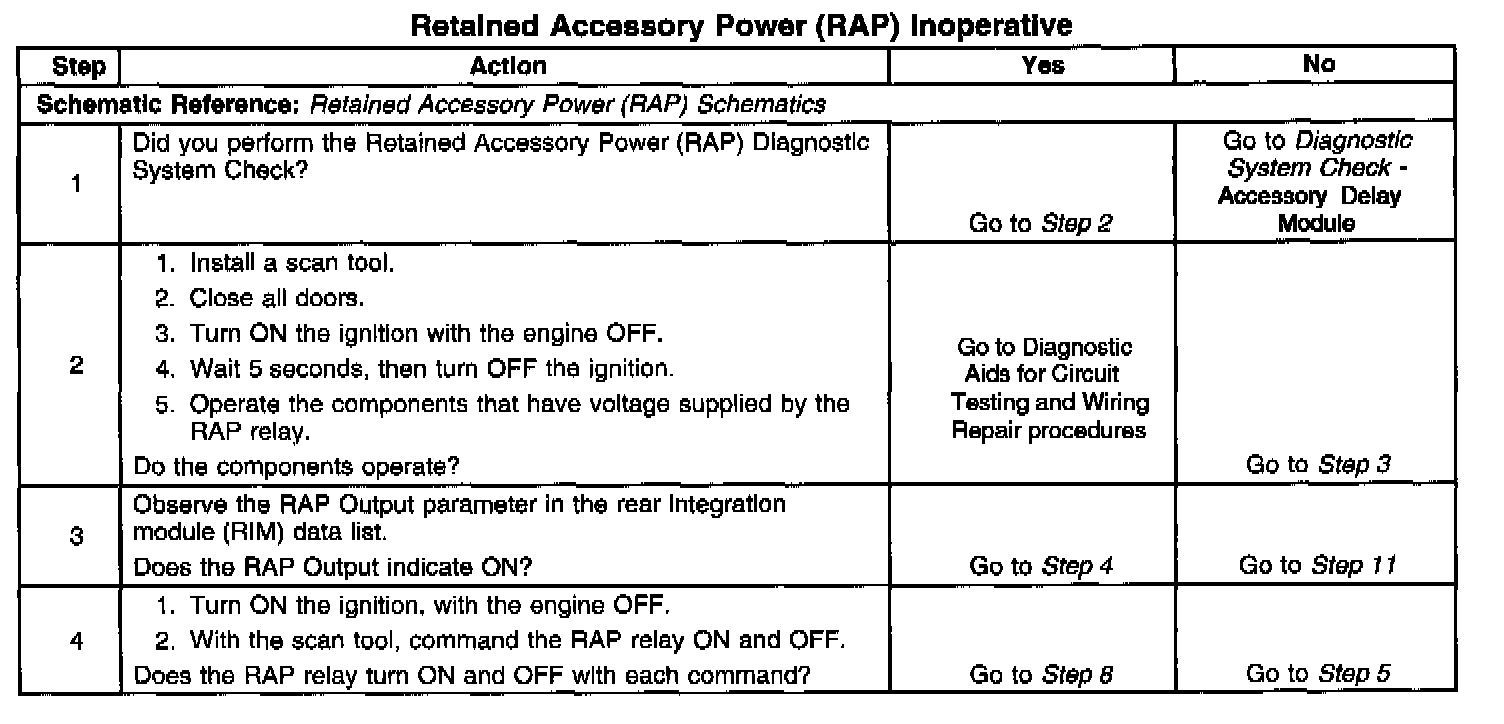

Steps 1-4:

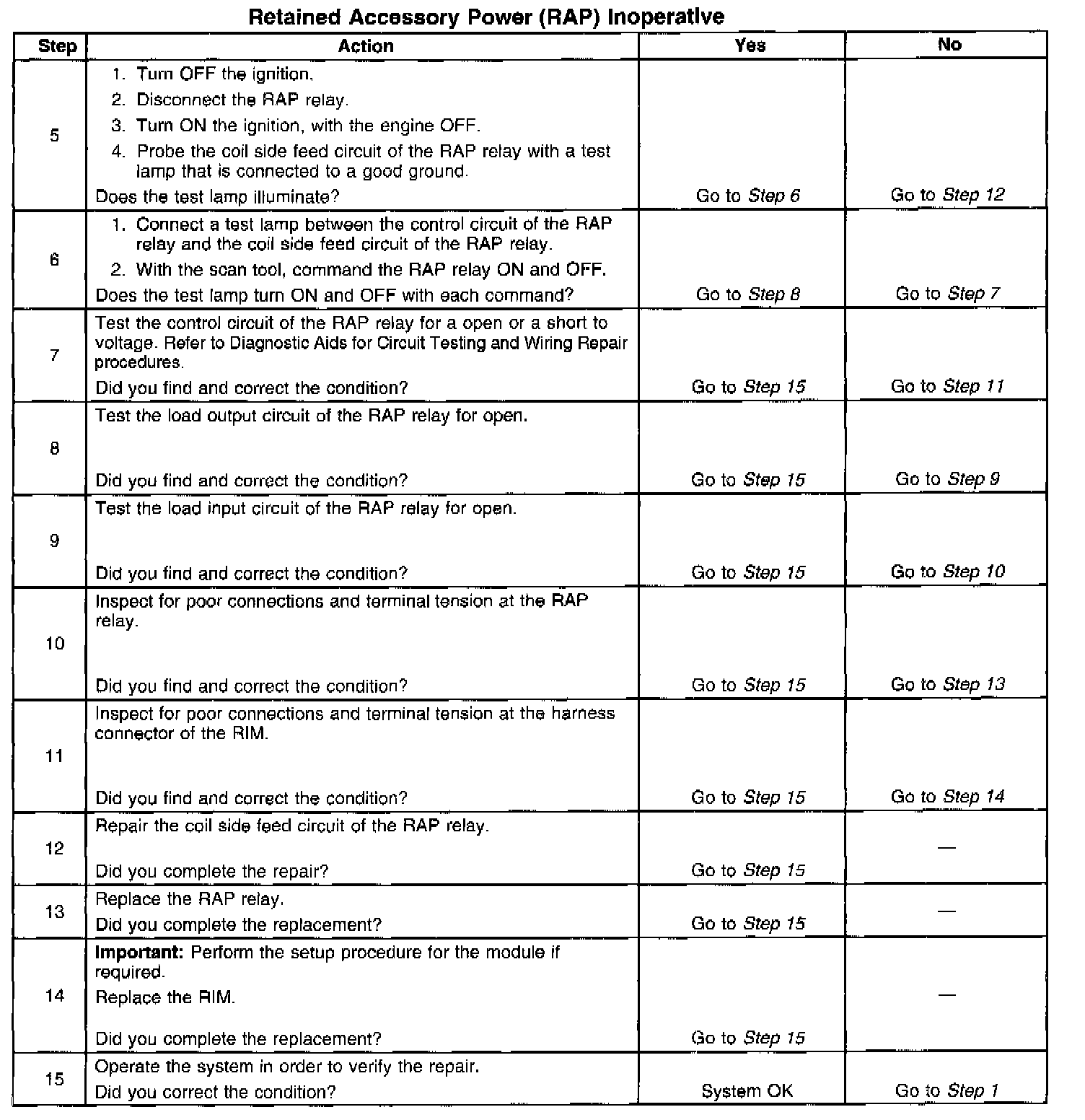

Steps 5-15:
