Fuel Tank Unit: Description and Operation

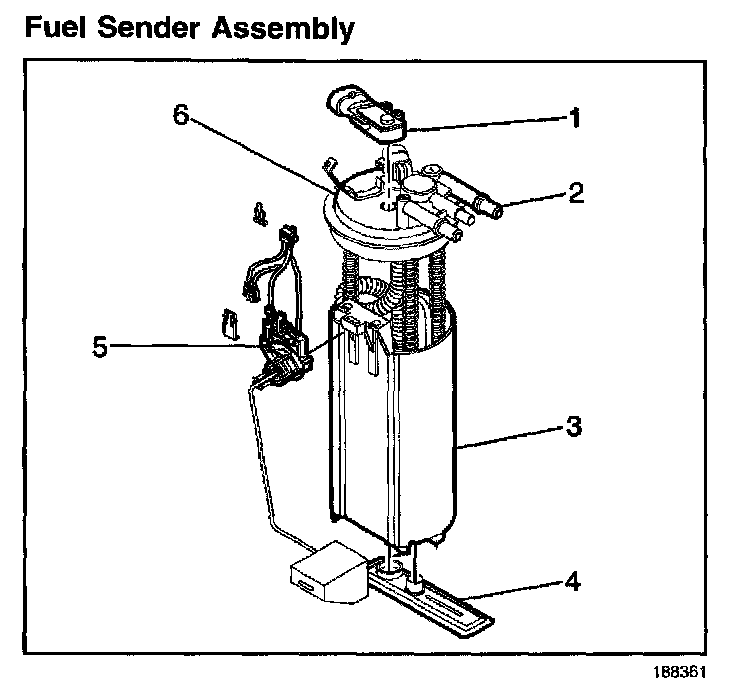

FUEL SENDER ASSEMBLYFuel Sender Assembly:
The fuel sender assembly consists of the following major components:
^ The fuel level sensor (5)
^ The fuel tank pressure sensor (1)
^ The fuel tank fuel pump module (3)
^ The fuel strainer (4)
