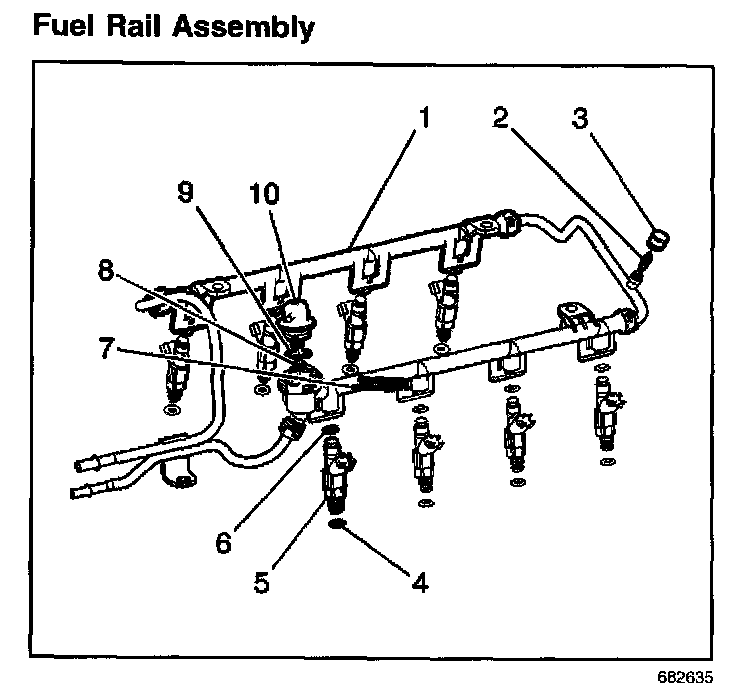

Fuel Rail Assembly

Fuel Rail Assembly:

The fuel rail assembly (1) attaches to the engine intake manifold. The fuel rail assembly performs the following functions:
^ Positions the injectors (5) in the intake manifold
^ Distributes fuel evenly to the injectors
^ Integrates the fuel pressure regulator (10) with the fuel metering system
