EGR Tube: Service and Repair

REMOVAL PROCEDURE

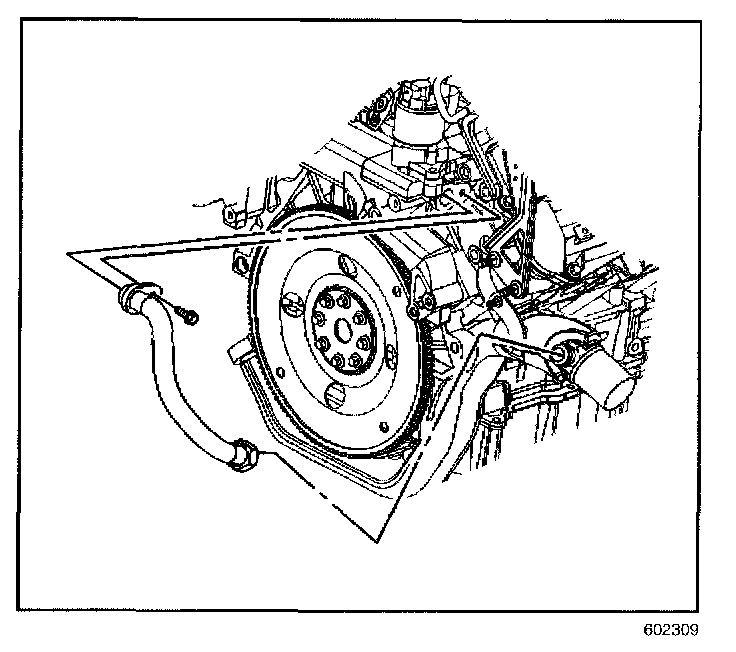

1. Remove the bolt at the water pump housing.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
3. Remove the crossover exhaust pipe.
4. Remove the nut from the crossover exhaust pipe.
5. Remove the exhaust gas recirculation (EGR) valve pipe.

INSTALLATION PROCEDURE




1. Loosely install the EGR pipe nut to the crossover exhaust pipe.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the crossover exhaust pipe.

Tighten
Tighten the EGR pipe nut to 60 N.m (44 lb ft).

3. Lower the vehicle.
4. Install the bolt at the water pump housing.

Tighten
Tighten the bolt to 24 N.m (18 lb ft).
