Air Injection Pump: Diagrams

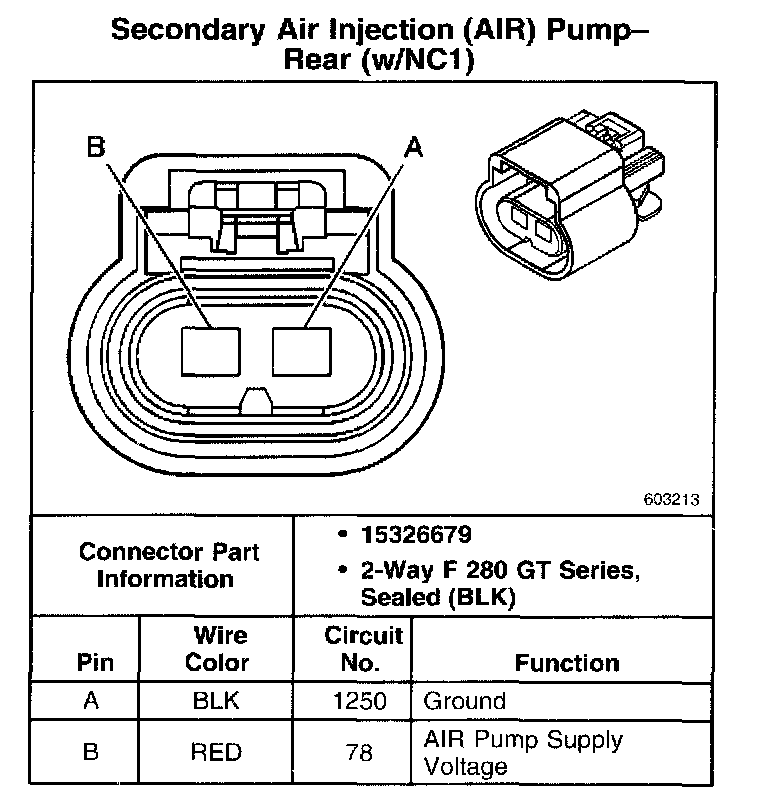

Secondary Air Injection (AIR) Pump-Rear (W/NC1):

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application. RPO Codes
