Secondary Air Injection (Air) Pump Outlet Pipe/Hose Replacement

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the air deflector.

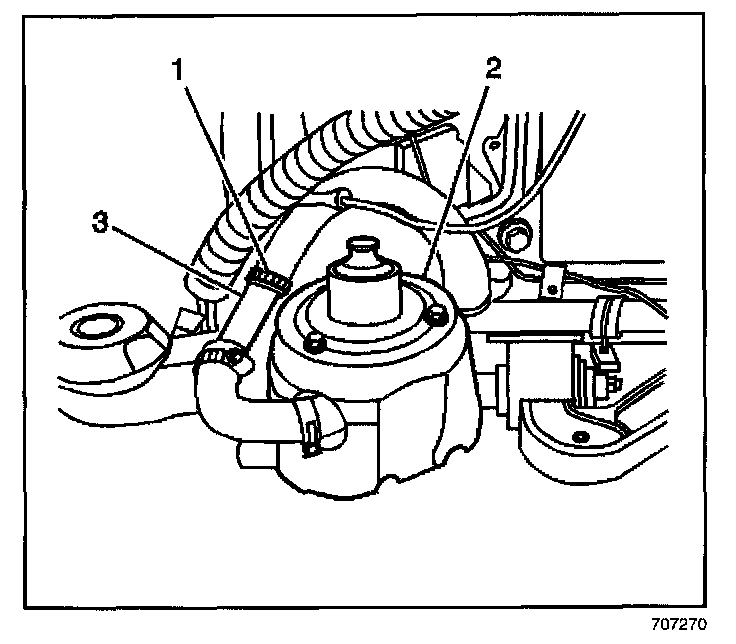

3. Loosen and lower the pinch clamp securing the AIR pump outlet hose (3) to the AIR pump (2).
4. Remove the clamps securing the AIR pump outlet hose (3) to the bank 2 intermediate pipe/hose and the crossover pipe/hose.
5. Remove the AIR pump outlet hose (3).

INSTALLATION PROCEDURE




1. Install the AIR pump outlet hose (3).
2. Install the clamps securing the AIR pump outlet hose (3) to the bank 2 intermediate pipe/hose and the crossover pipe/hose.
3. Install the AIR pump outlet hose (3) and clamp to the AIR pump (2).
4. Install the air deflector.
5. Lower the vehicle.
