AIR Shut-Off Valve Replacement - Bank 2

REMOVAL PROCEDURE




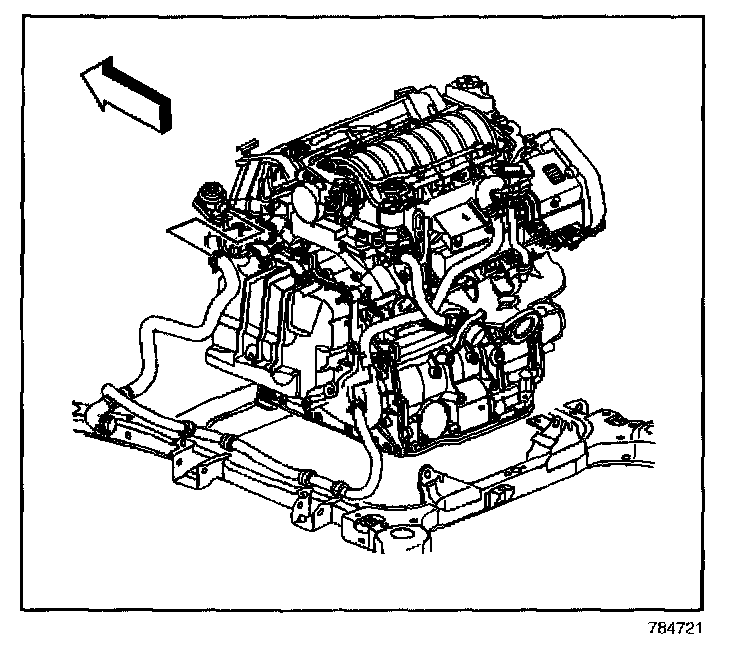

1. Remove the air cleaner assembly.
2. Disconnect the vacuum lines.




3. Loosen and lower the pinch clamp connecting the bank 2 intermediate pipe/hose to the bank 2 shut-off valve.
4. Disconnect the hose from the shut-off valve.

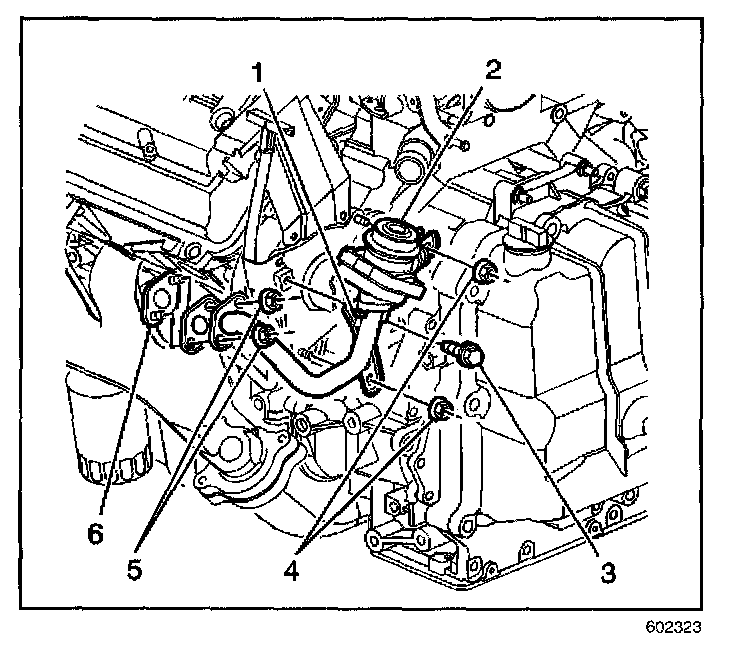

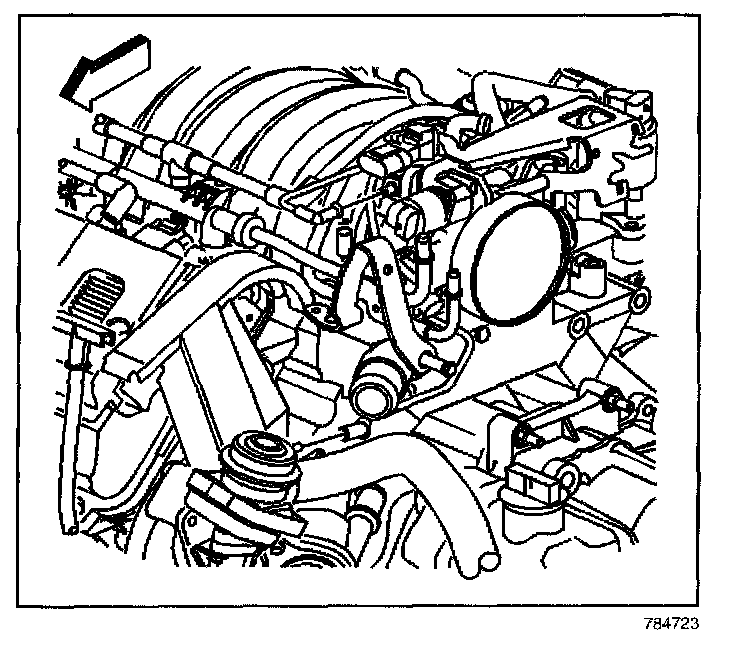

5. Remove the two nuts (1) securing the bank 2 AIR shut-off to the bracket.
6. Remove the bank 2 AIR shut-off valve from the bracket.

INSTALLATION PROCEDURE




1. Install the bank 2 AIR shut-off valve and new gasket to the bank 2 outlet pipe.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the two nuts (1) securing the shut-off valve to the bracket.

Tighten
Tighten the three nuts to 9 N.m (80 lb in).




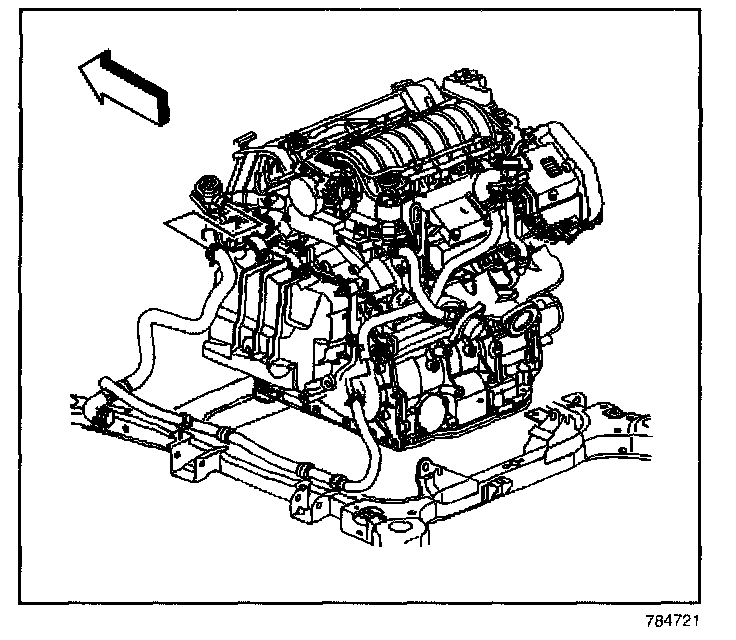

3. Install the bank 2 intermediate pipe/hose and clamp to the shut-off valve.




4. Install the vacuum lines.
5. Install the air cleaner assembly.
