C803-RH Rear Door Harness Inline to RH Rear Door Jumper Harness

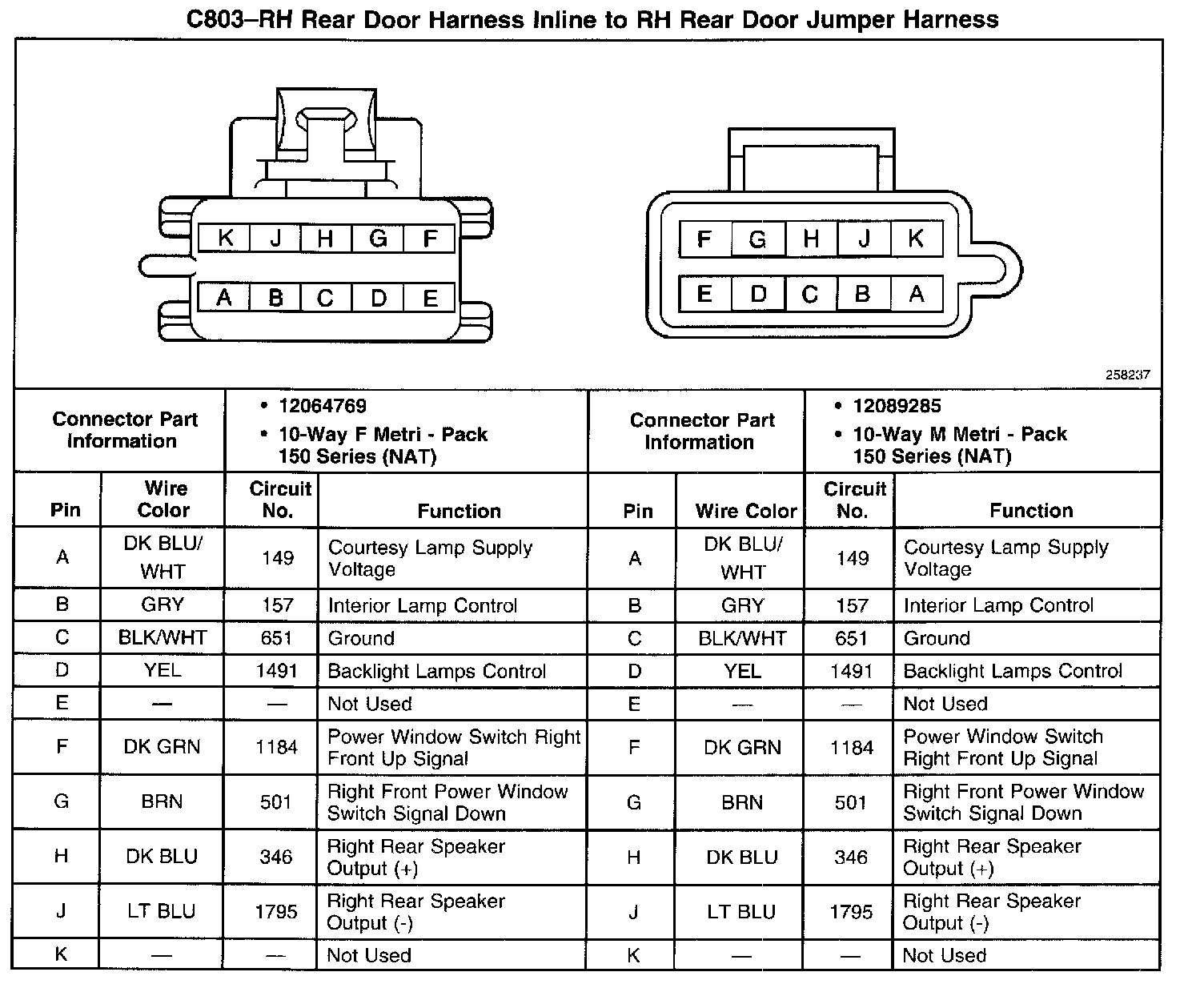

C803 - RH Rear Door Harness Inline To RH Rear Door Jumper Harness:
