Vanity Lamp: Service and Repair

VANITY MIRROR LAMP REPLACEMENT

REMOVAL PROCEDURE

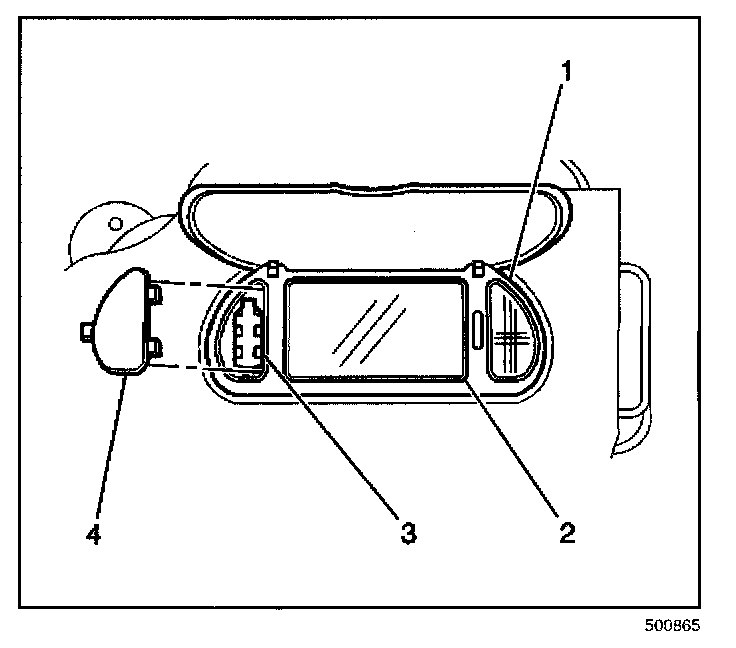

1. Open the vanity cover (1) and, using a thin-platted tool, insert the edge of the tool under the lamp lens (4).
2. Carefully snap the lamp lens out of its retaining slots.
3. Replace the bulb (3).

INSTALLATION PROCEDURE




1. Insert the bulb (3).
2. Install the lens (4) into the vanity mirror assembly
