Turn Signal Lamp: Diagrams

Park/Turn Signal Lamp - LF:




Park/Turn Signal Lamp - RF:

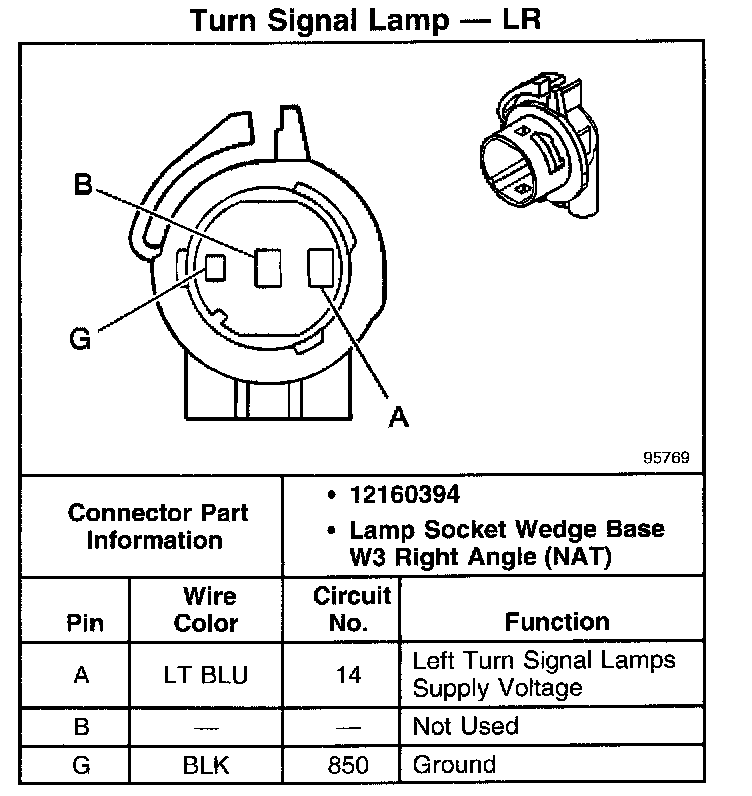

Turn Signal Lamp - LR:

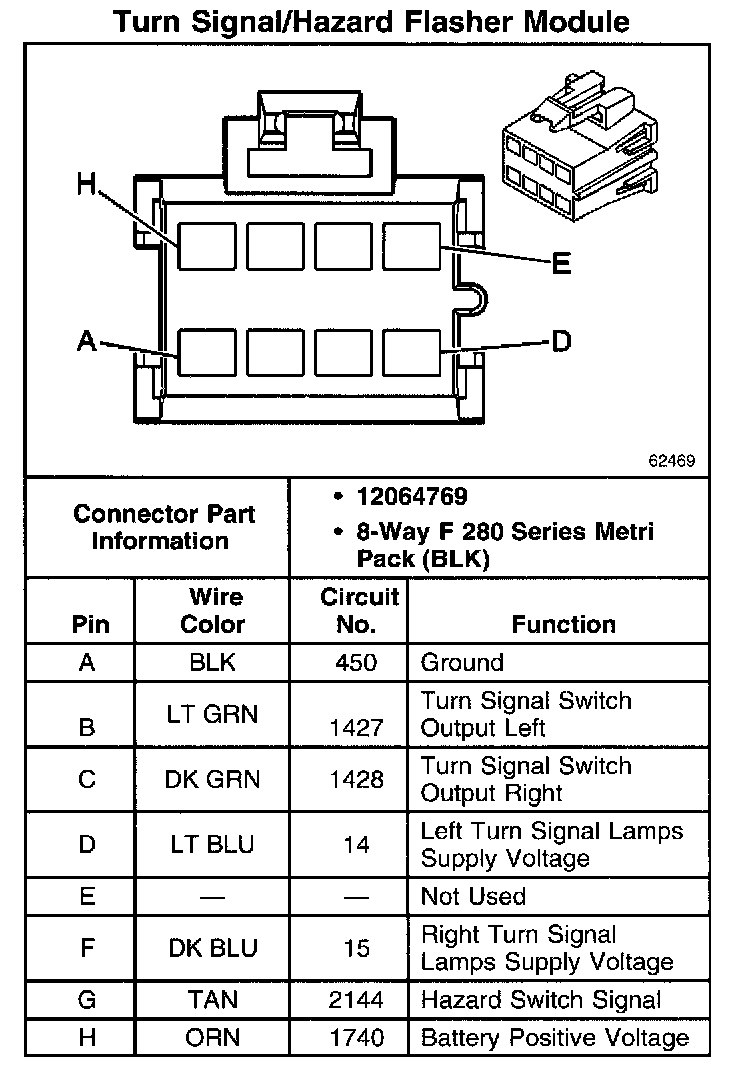

Turn Signal/Hazard Flasher Module:

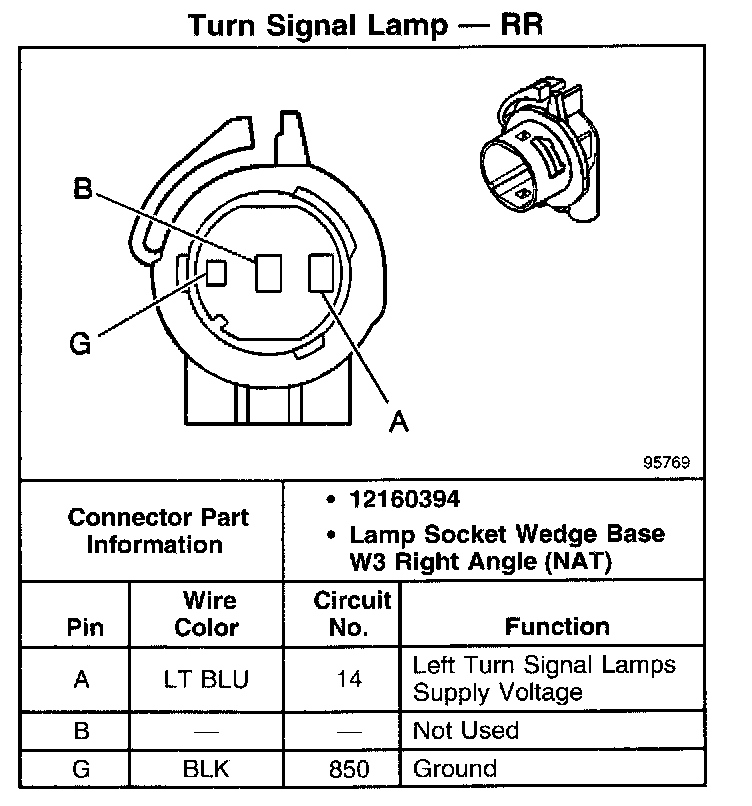

Turn Signal Lamp - RR:
