Turn Signal Switch: Service and Repair

Multifunction, Turn Signal Switch Replacement

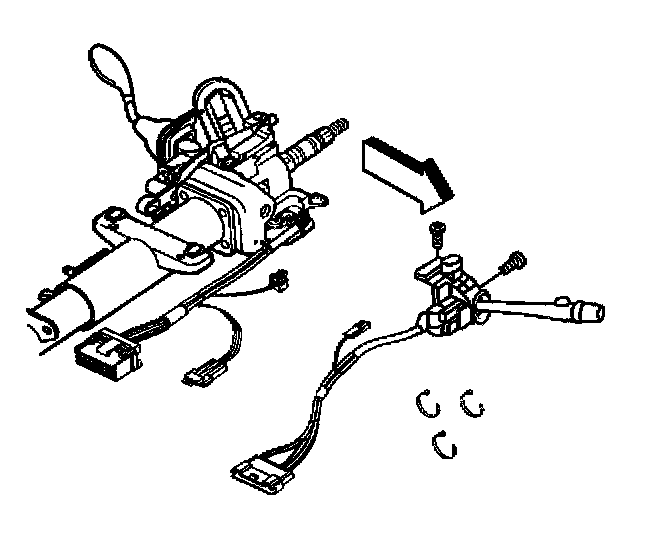

Removal Procedure

Caution: Refer to SIR Caution in Service Precautions.

1. Disable the SIR system.
2. Remove the steering column bracket.
3. Remove the steering column trim covers.





4. Remove the fasteners from the multi-function switch.
5. Remove the tie straps from wiring harness.
6. Disconnect the multi-function switch electrical connections.
7. Remove the multi-function switch.

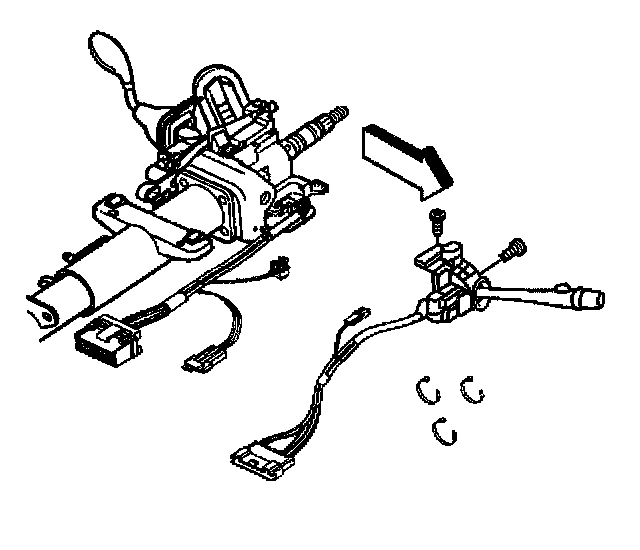

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the multi-function switch and the fasteners.
Tighten the fasteners to 7 Nm (62 inch lbs.).
2. Route the electrical harness and connect electrical connections.
3. Install new tie straps on the wiring harness.
4. Install steering column trim covers.
5. Install the steering column bracket.
6. Enable the SIR system.
