Key Cylinder Lamp: Service and Repair

BULB REPLACEMENT - IGNITION CYLINDER LAMP

REMOVAL PROCEDURE




1. Remove the Ignition Switch.

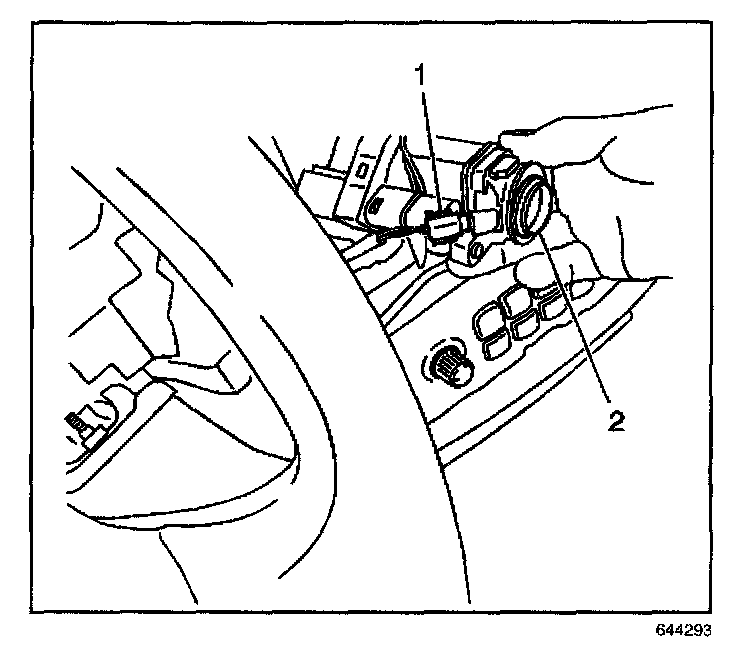

2. Remove the Ignition lock cylinder lamp bulb socket (1) by turning counterclockwise 1/4 turn.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the Ignition lock cylinder lamp bulb into the lamp socket (1).
2. Install the Ignition lock cylinder lamp bulb socket by turning clockwise 1/4 turn.
3. Install the Ignition Switch.
