Headlamp Bulb: Service and Repair

REMOVAL PROCEDURE




1. Remove the headlamp assembly from the vehicle.

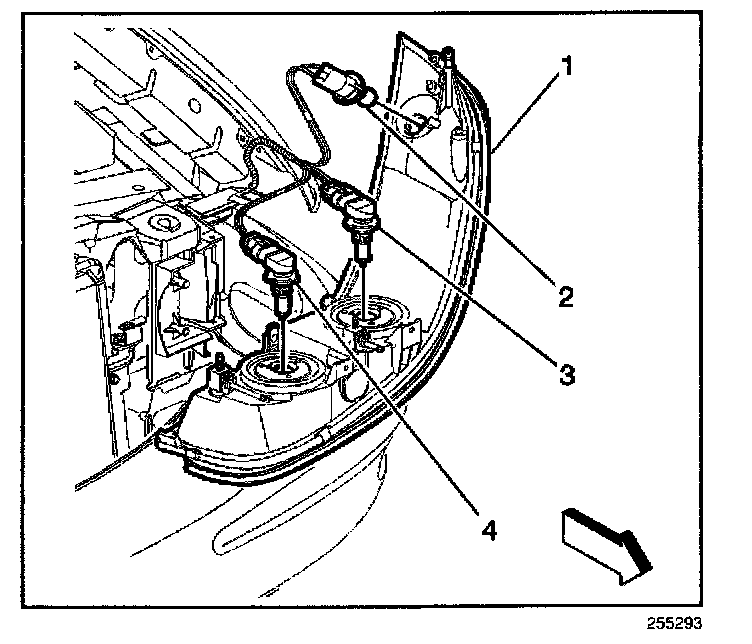

2. Remove the headlamp bulb (3 or 4) from the headlamp assembly (1) by turning 1/4 turn counter clockwise.
3. Disconnect the electrical connector from the bulb.

INSTALLATION PROCEDURE




1. Connect electrical connector to the headlamp bulb (3 or 4).
2. Install the headlamp bulb (3 or 4) into the headlamp assembly (1) by turning 1/4 turn clockwise.
3. Install the headlamp assembly to the vehicle.
