Instrument Panel/Console Dimming

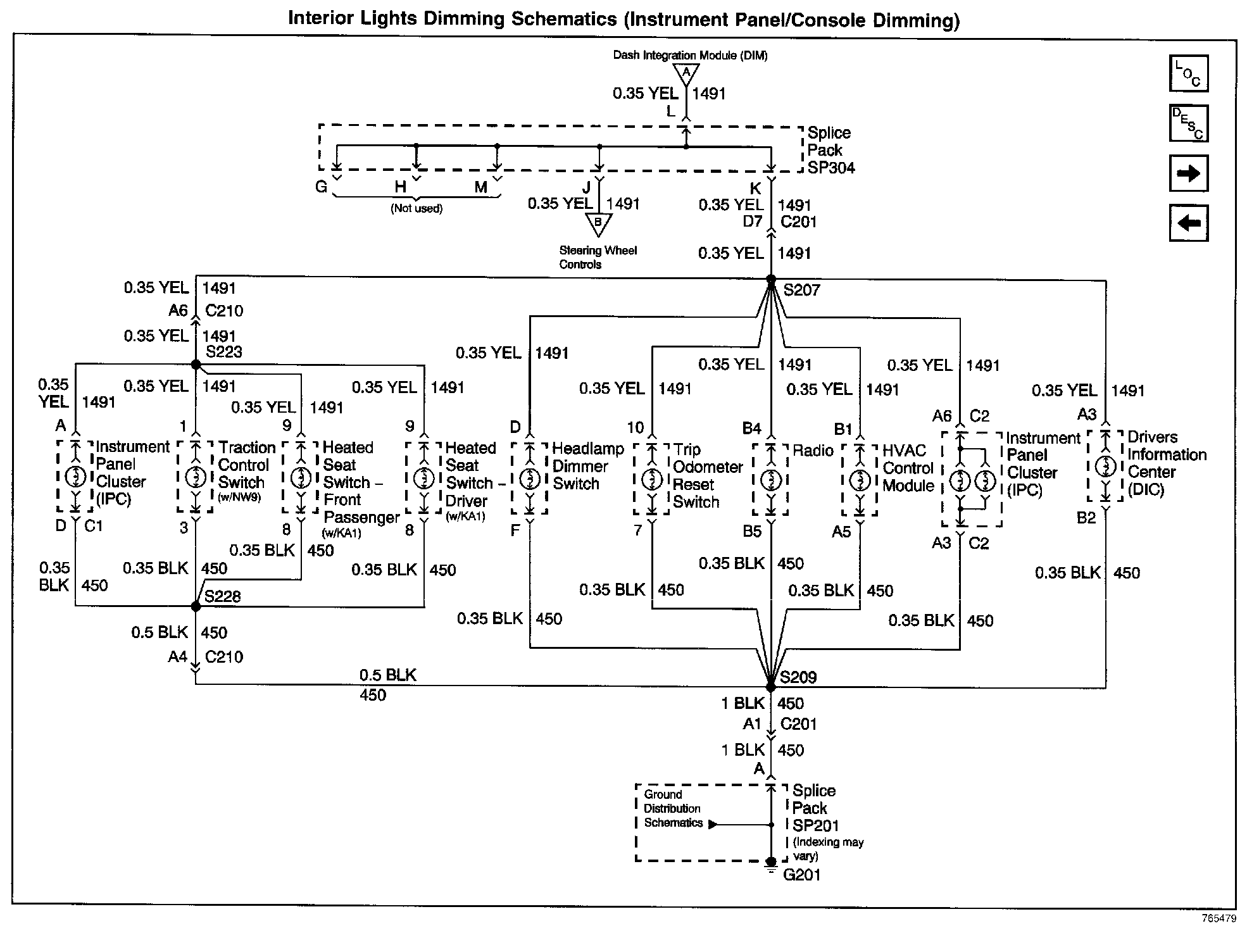

Interior Lights Dimming Schematics: Instrument Panel/Console Dimming:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
