Trip Odometer and Reset Switch Replacement

REMOVAL PROCEDURE

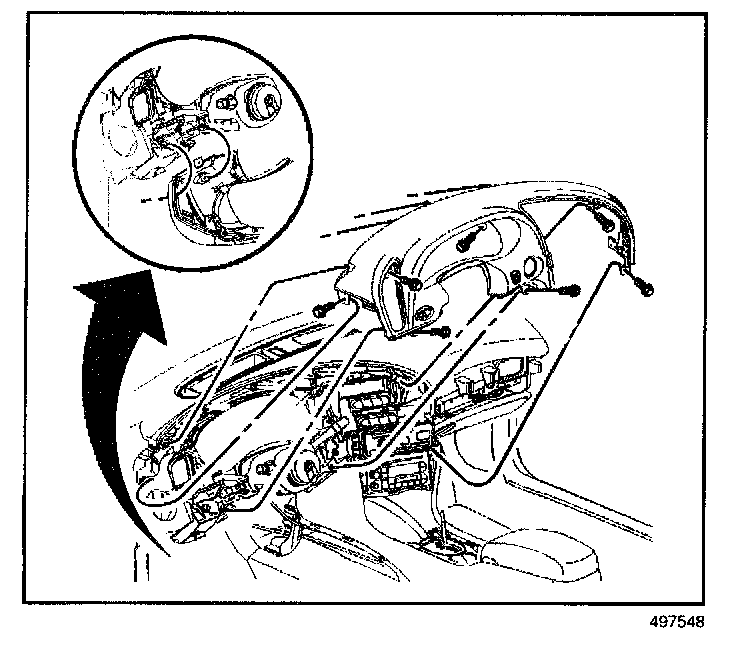

1. Remove the IP cluster trim plate.
2. Disconnect the electrical connector from the trip reset switch.

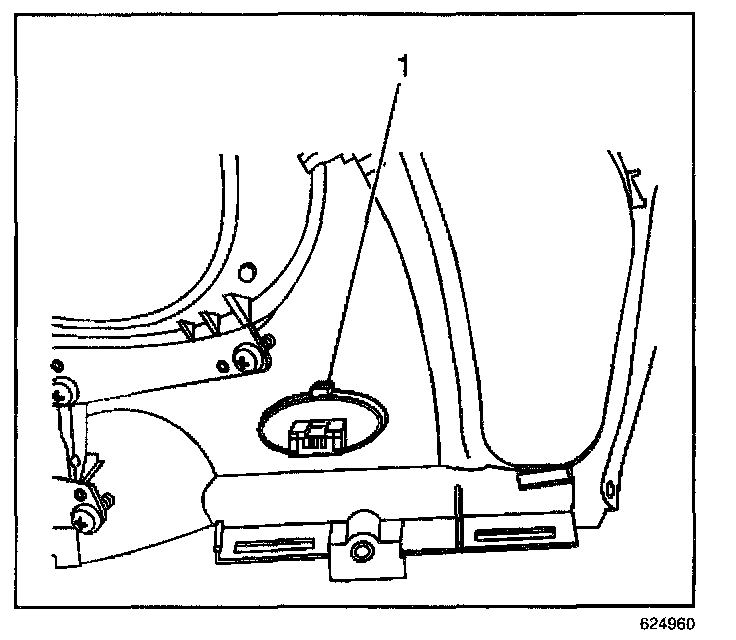

3. Remove the trip reset switch that is located to the left of the steering column, by pressing tab (1) at the top from behind in order to push out through the front of the IP cluster trim plate bezel.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the trip reset switch.
2. Install the trip reset switch into the IP cluster trim plate bezel by snapping it into place.
3. Install the IP cluster trim plate.
