Driver Information Center Module Replacement

REMOVAL PROCEDURE




1. Remove the IP trim plate bezel.

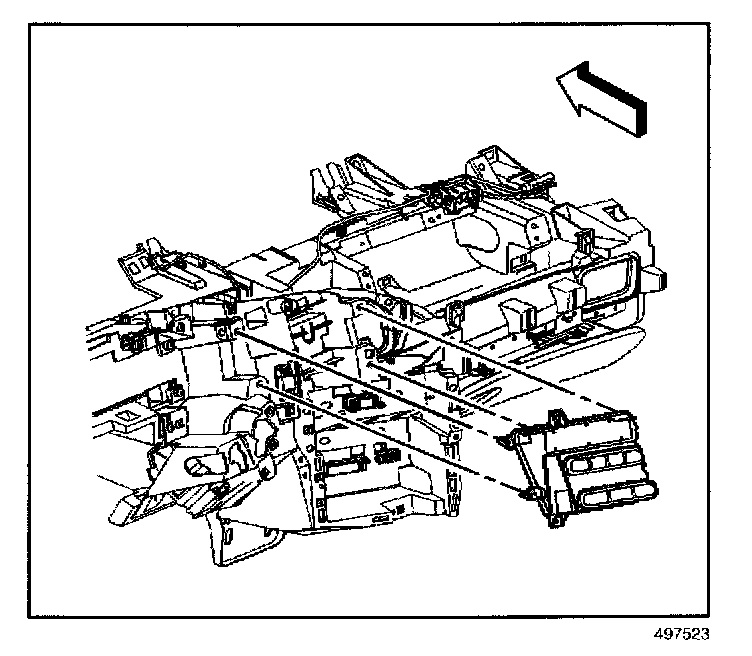

2. Remove the Driver Information Center (DIC) by pulling rearward while disengaging the retaining clips.

INSTALLATION PROCEDURE




1. Line up the clips on the DIC to the holes in the IP and press forward to engage.
2. Install the IP trim plate bezel.
