Temperature Variation Between Driver and Passenger Outlets

TEST DESCRIPTION

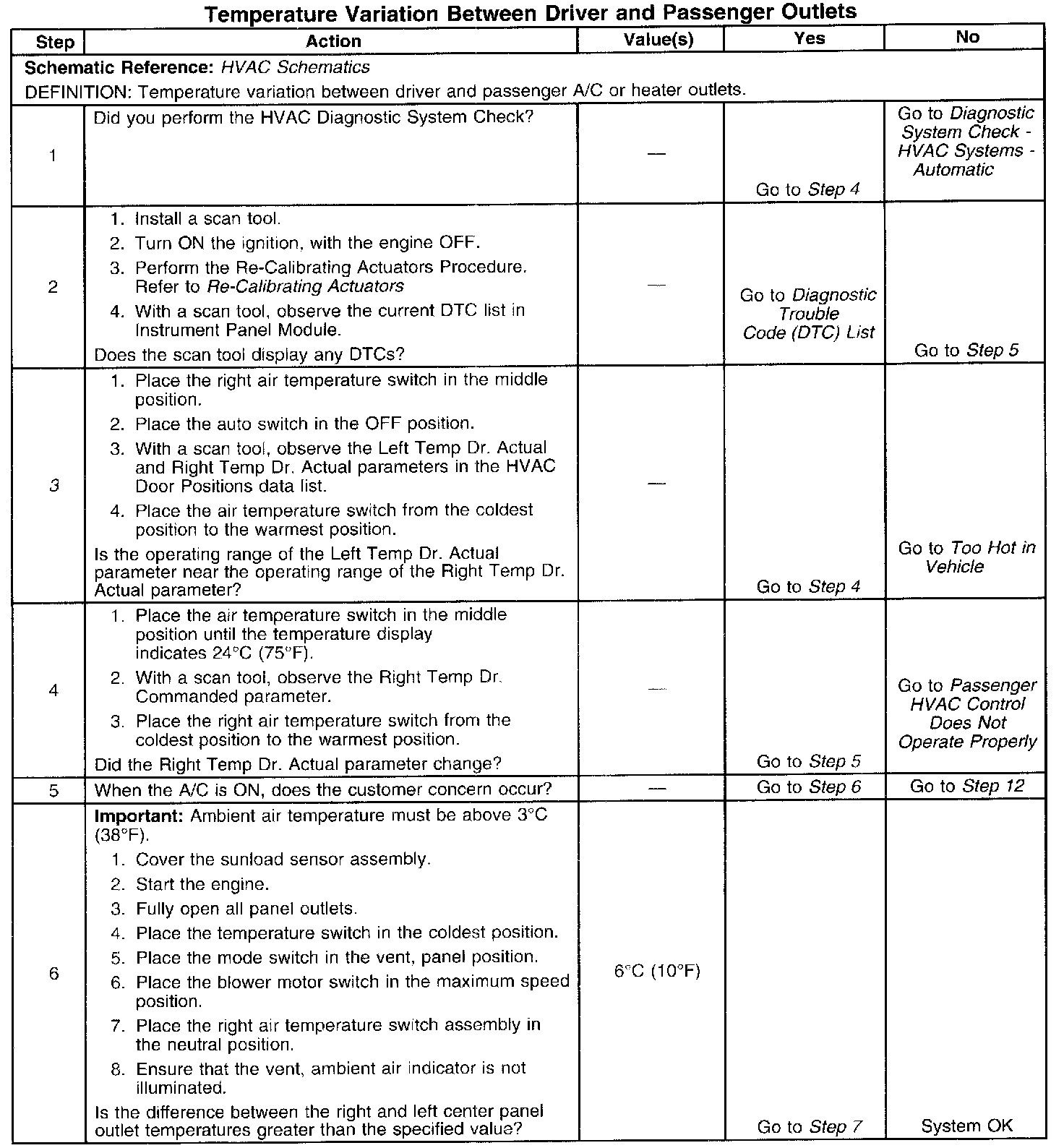

Steps 1-6:

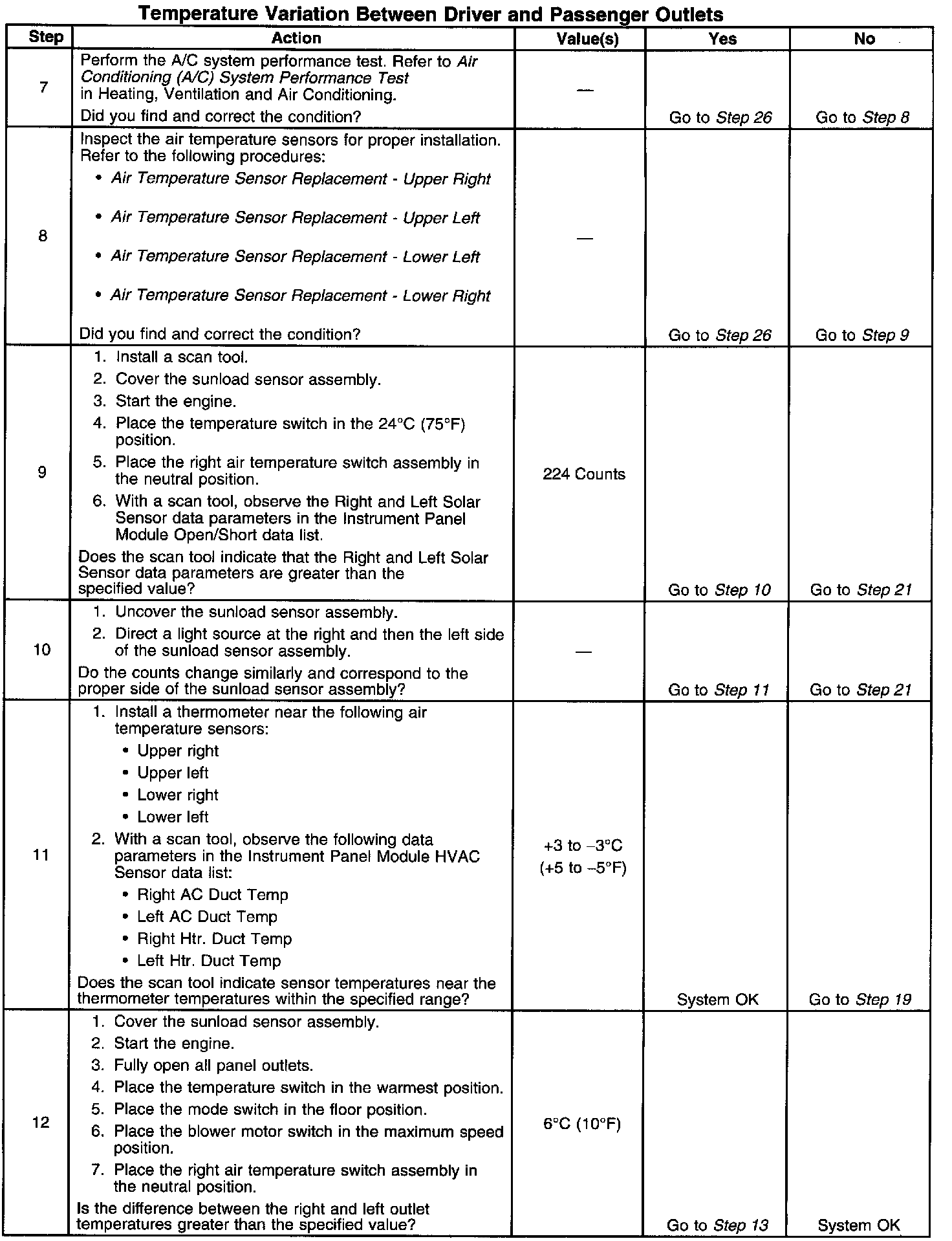

Steps 7-12:

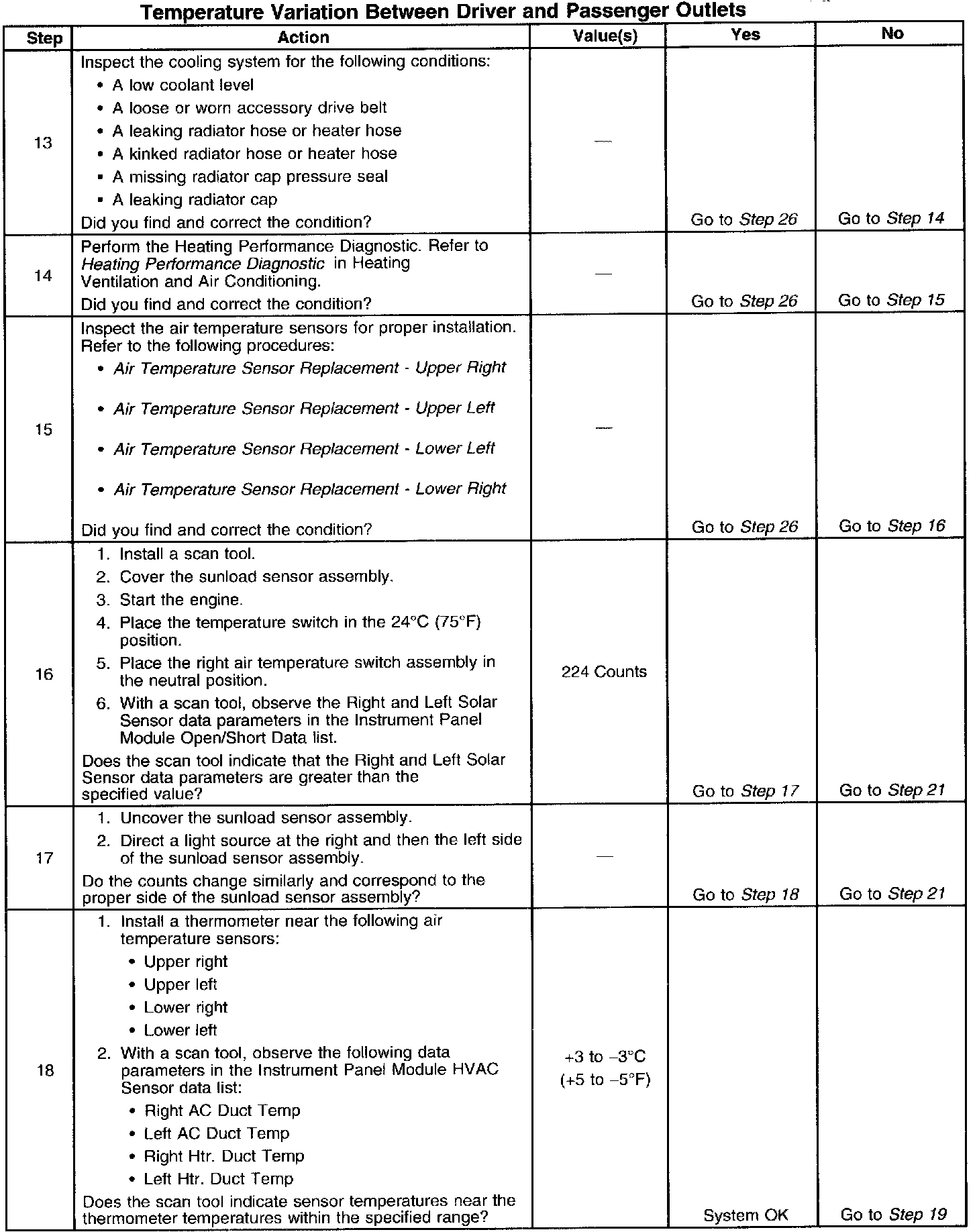

Steps 13-18:

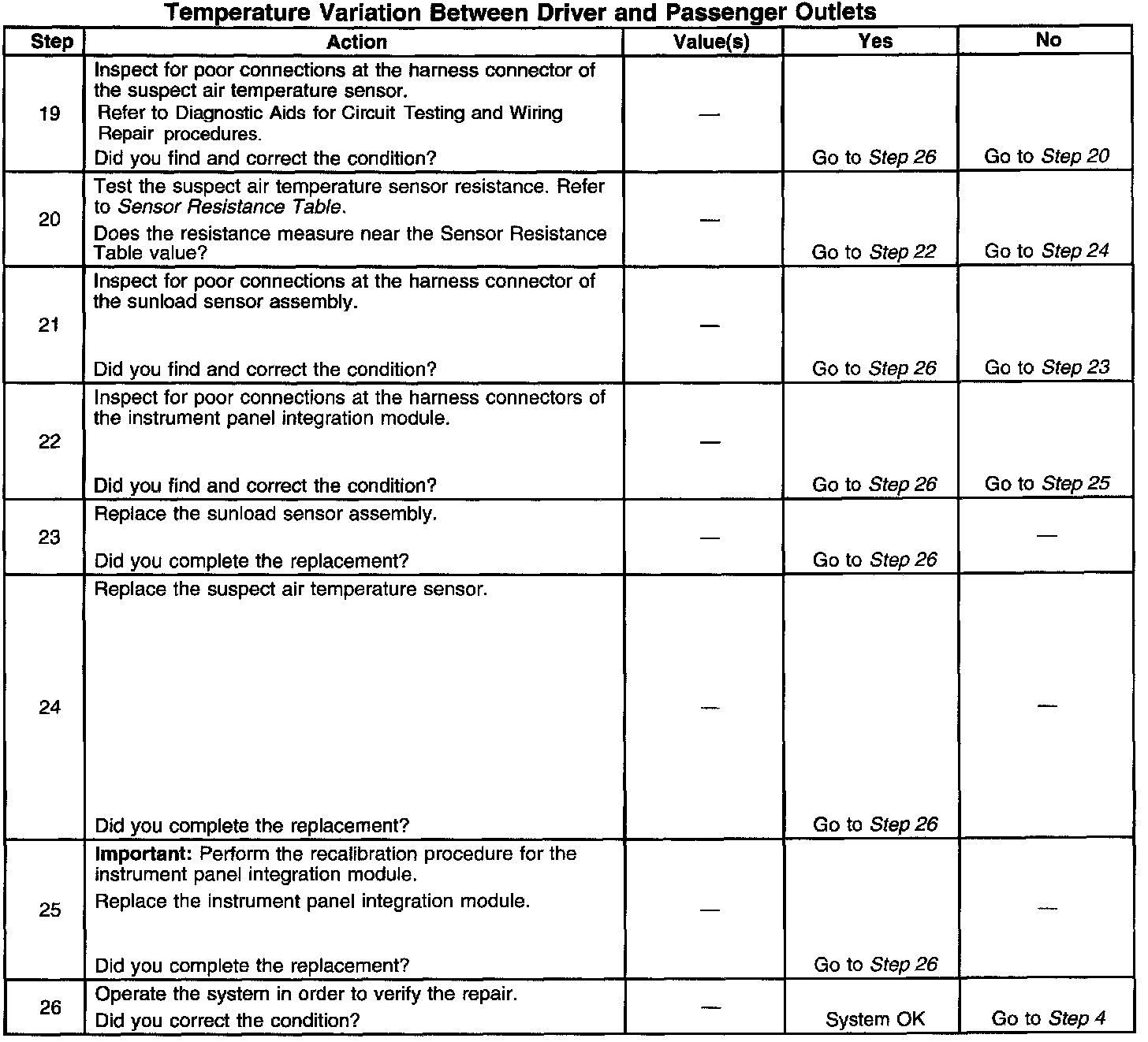

Steps 19-26:

The numbers below refer to the step numbers on the diagnostic table.
3. Both the Too Hot in Vehicle and Too Cold in Vehicle diagnose a malfunctioning temperature actuator.
