Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> A/C System Pressure Zone Diagnostics >> A/C Diagnostics - Pressure Zone C

A/C Diagnostics - Pressure Zone C

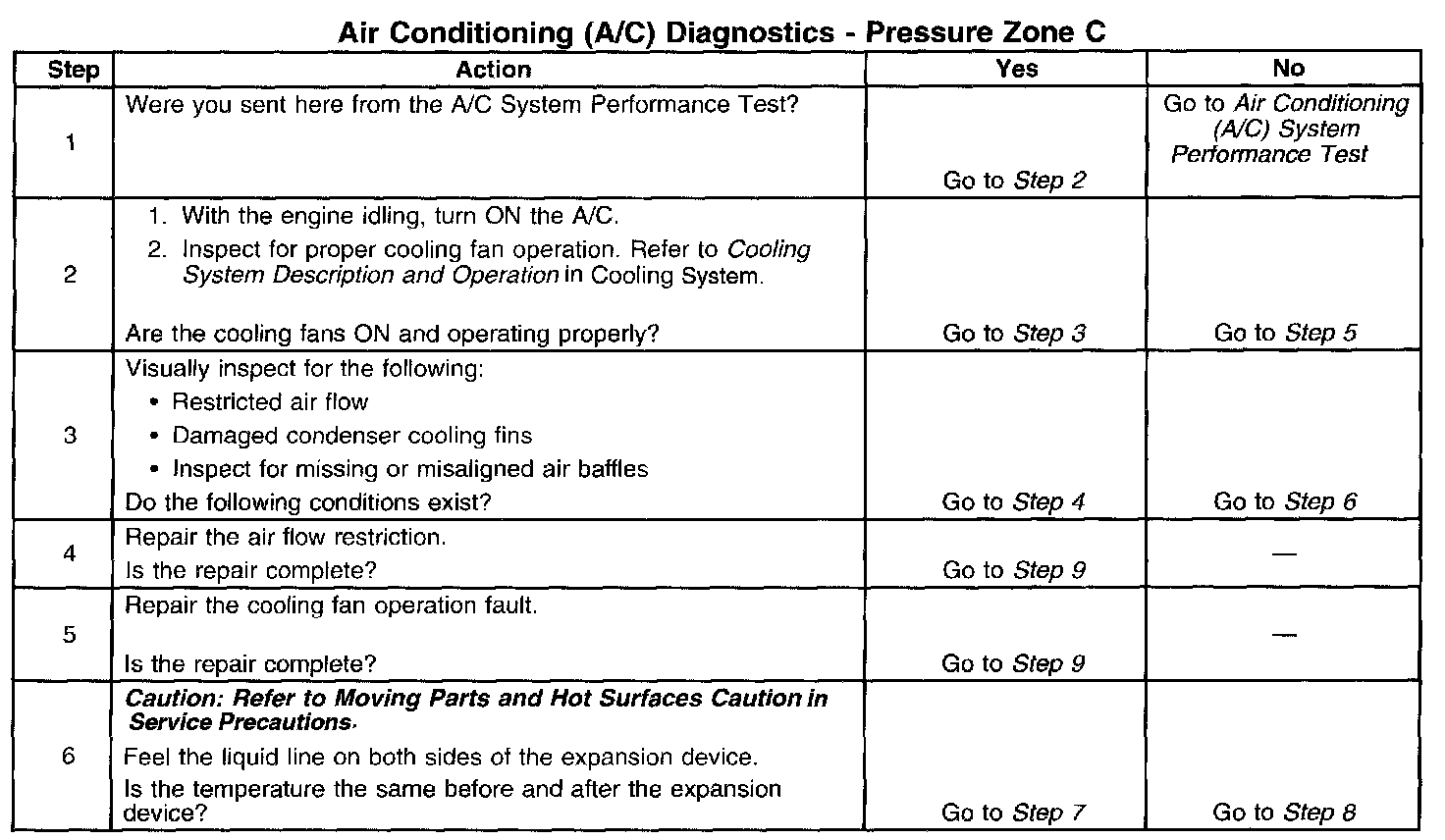

Steps 1-6:

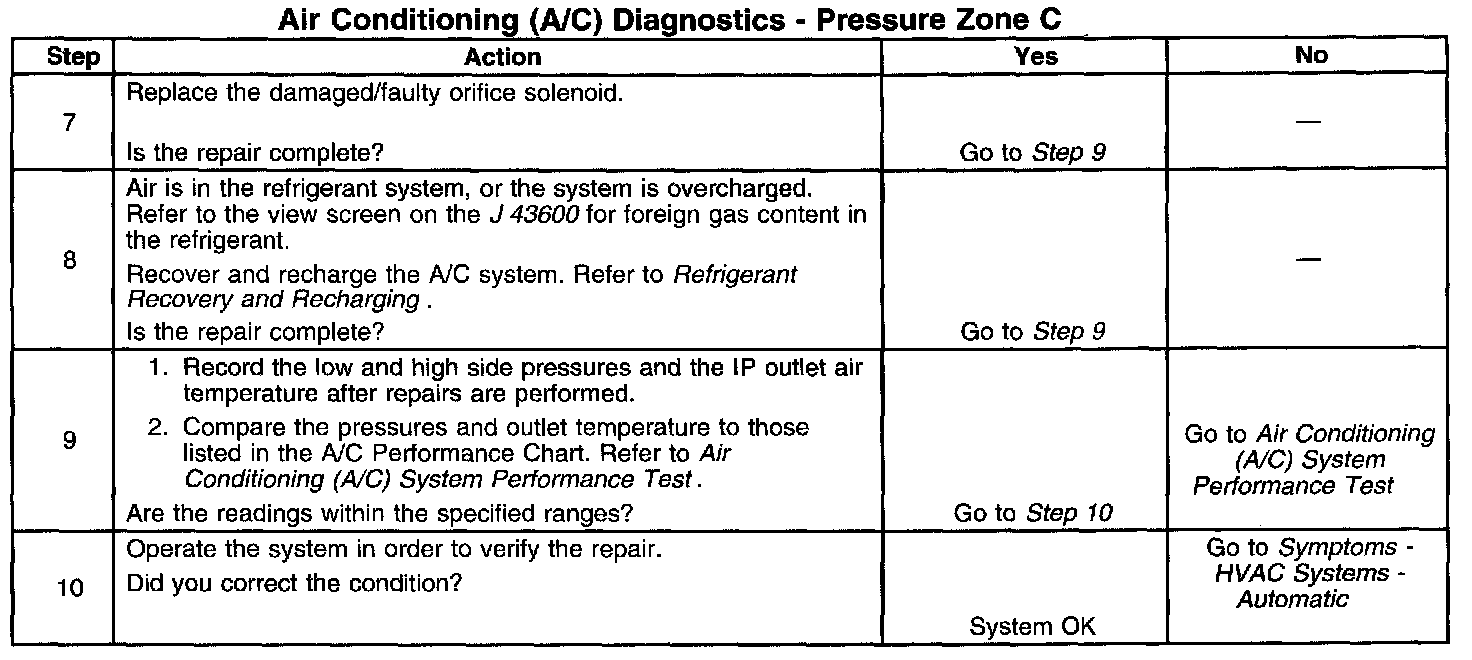

Steps 7-10:
