34. Valve Lifter Removal - Left

Valve Lifter Removal - Left

Notice: Refer to Valve Lifter Priming Notice in Service Precautions.

Important: Ensure each camshaft follower remains matched to the original Stationary Hydraulic Lash Adjusters (SHLAs) and original location the components were assembled inch

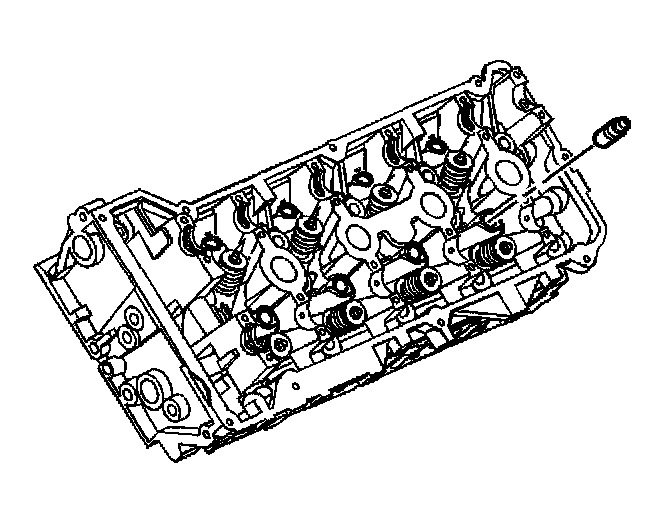

1. Remove the Stationary Hydraulic Lash Adjusters (SHLAs) from the left cylinder head lifter bores.
2. Store the camshafts, followers and SHLAs in a clean, secure location.
