33. Valve Rocker Arm Removal - Right

Valve Rocker Arm Removal - Right

Important: Ensure each camshaft follower remains matched to the original Stationary Hydraulic Lash Adjuster (SHLAs) and original location the components were assembled inch

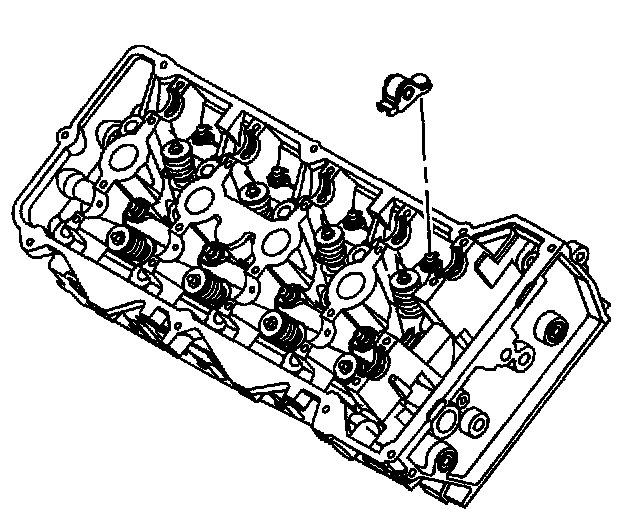

1. Remove the camshaft followers from the right cylinder head.
2. Store the camshafts, followers and SHLAs in a clean, secure location.
