Fuel Injector Sight Shield Replacement

Fuel Injector Sight Shield Replacement

Removal Procedure

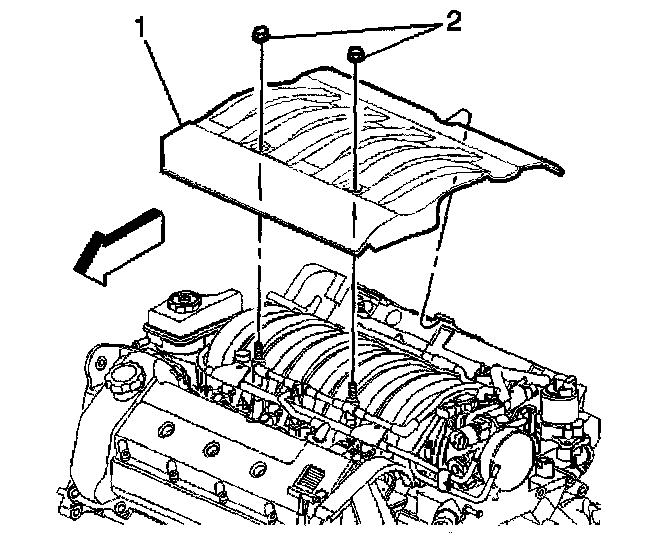

1. Remove the 2 nuts (2) from the fuel injector sight shield (1).
2. Lift the sight shield from the front and pull forward to disengage the rear tab from the bracket.

Installation Procedure





1. Align the rear tab with the slot in the rear bracket and push the sight shield inward to engage.
2. Pull sight shield down and align the studs on the intake manifold with the holes in the sight shield.

Notice: Refer to Fastener Notice in Service Precautions.

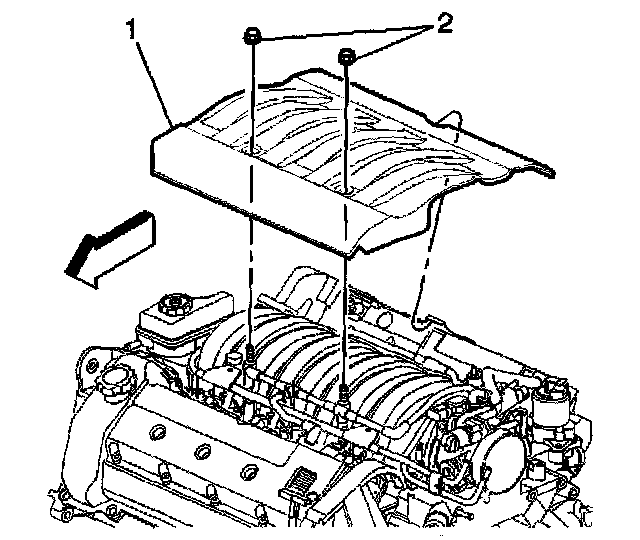

3. Install the fuel injector sight shield (1) nuts (2).
^ Tighten the fuel injector sight shield nuts to 3 Nm (27 inch lbs.).
