Coolant Heater Replacement - Right

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Disconnect the electrical connector at the engine coolant heater.

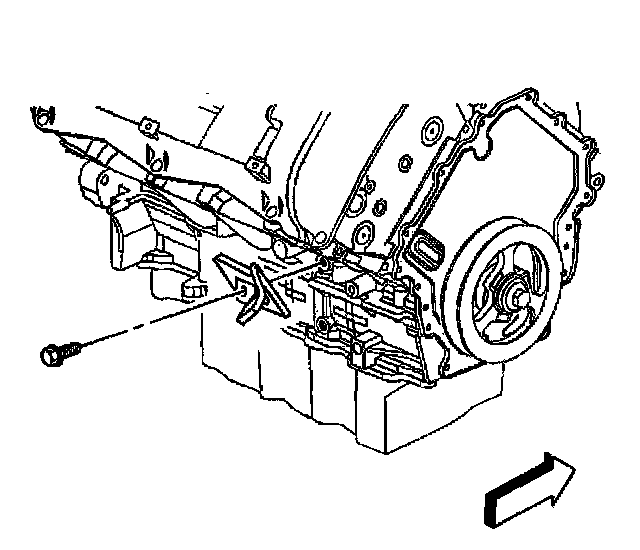

3. Remove the engine coolant heater bolt.
4. Remove the right engine coolant heater.

Installation Procedure

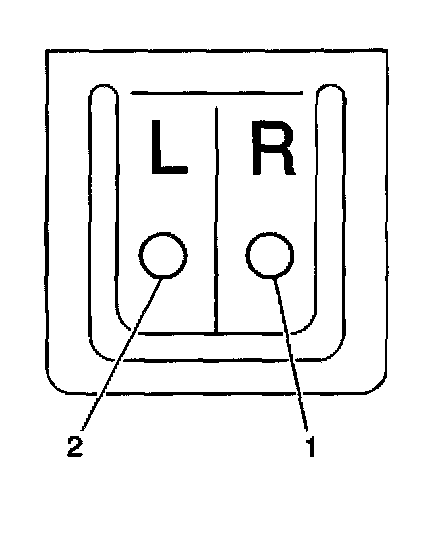

1. Align the threaded hole in the engine block with the hole labeled "R" (1) on the right engine coolant heater.





2. Install the right engine coolant heater.

Notice: Refer to Fastener Notice in Service Precautions.

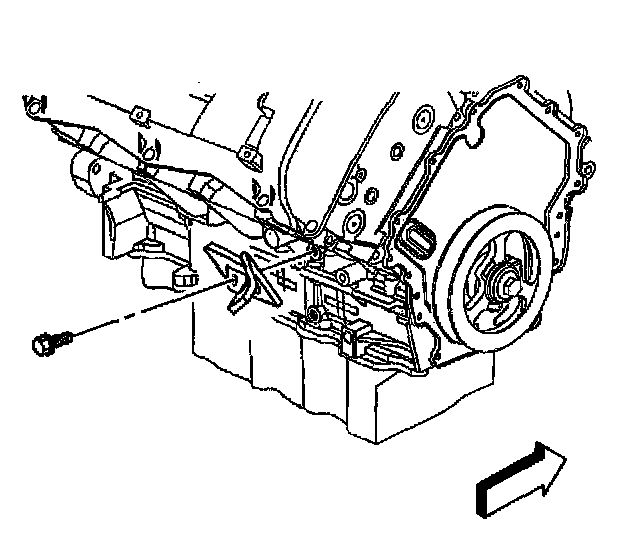

3. Install the engine coolant heater bolt.
^ Tighten the engine coolant heater bolt to 10 Nm (89 inch lbs.).
4. Connect the electrical connector to the engine coolant heater.
5. Lower the vehicle.
