Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Splices >> Master Splice/Splice Pack List

Master Splice/Splice Pack List

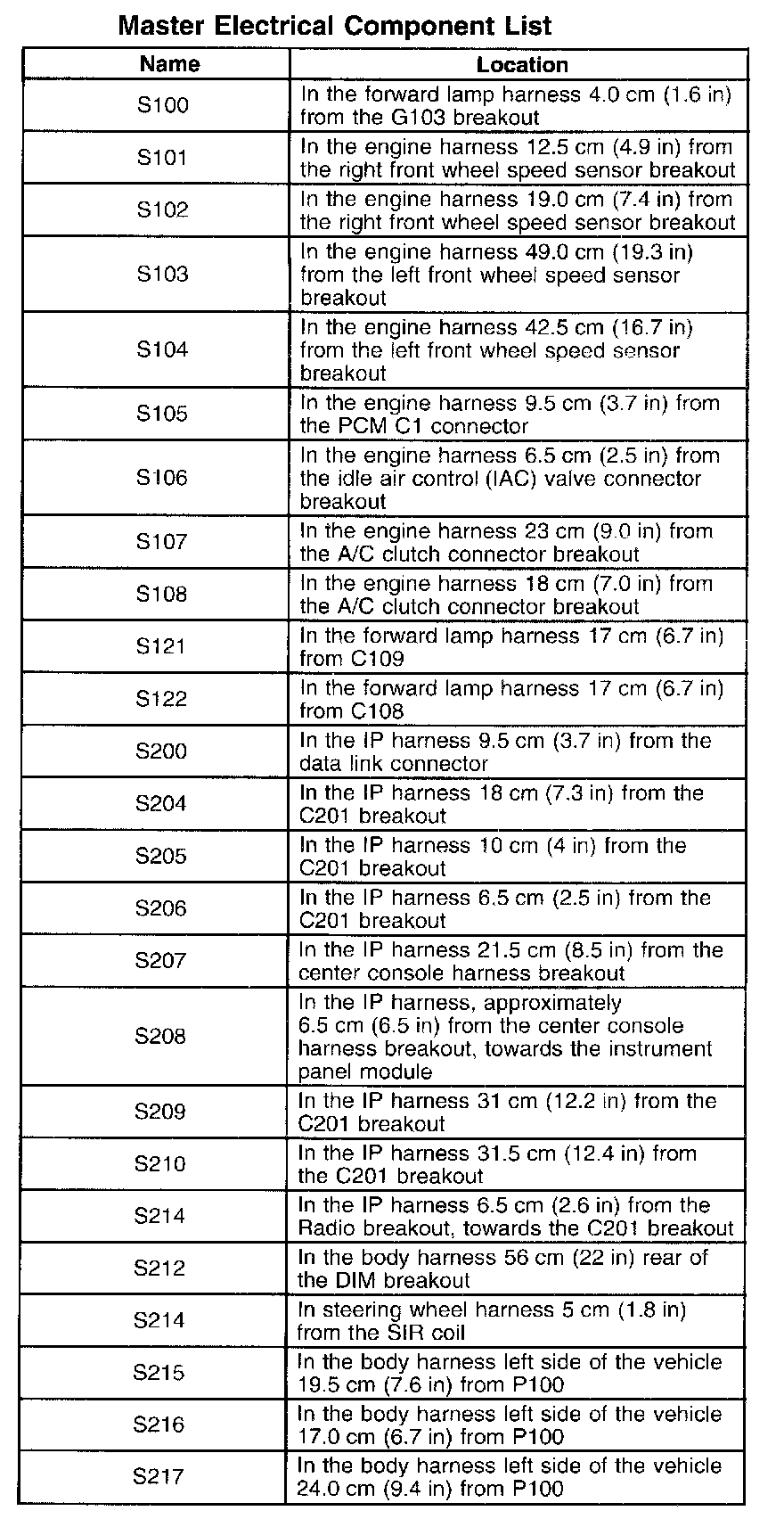

S100 - S217:

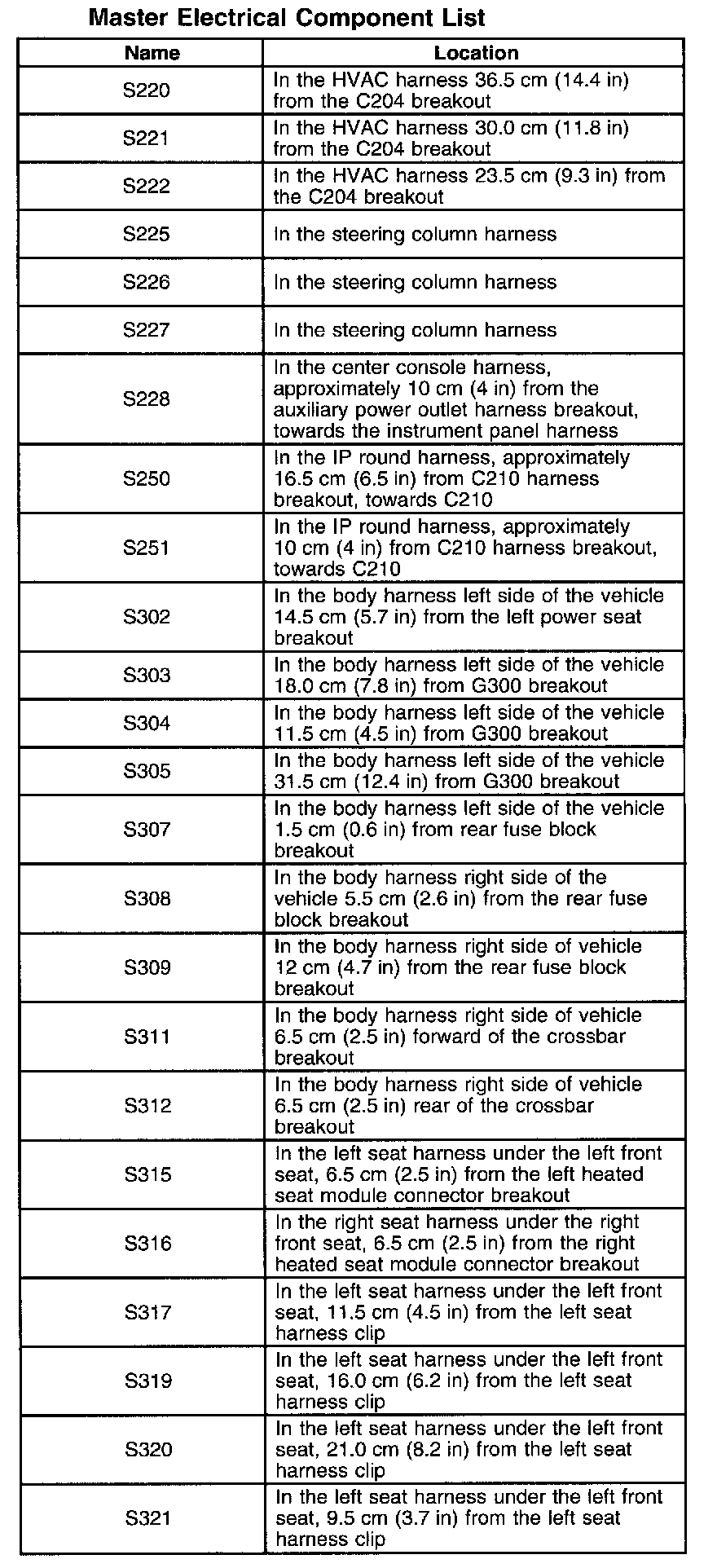

S220 - S321:




S322 - S604:

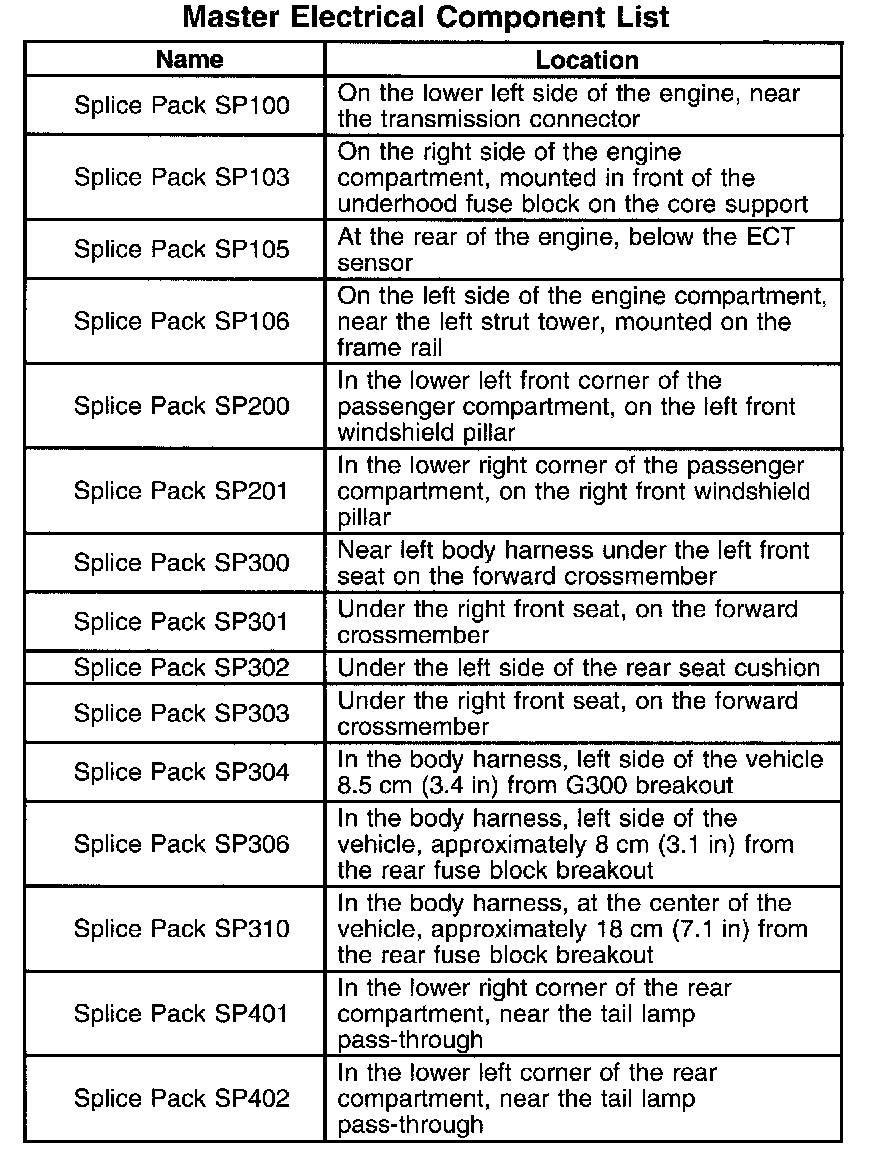

Splice Pack SP100 - Splice Pack SP402:
