PCM IGN Fuse
PCM IGN Fuse

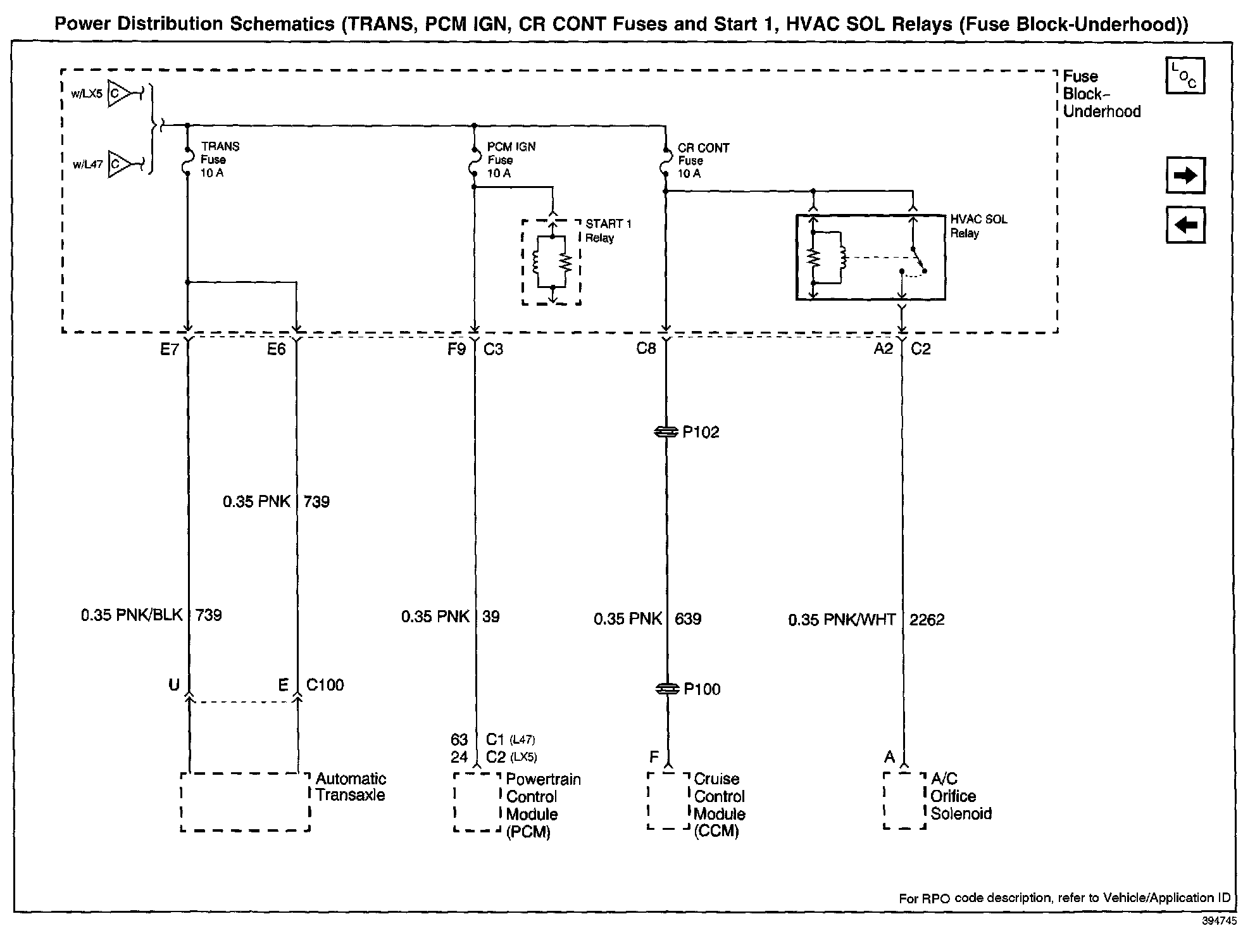

Power Distribution Schematics: TRANS, PCM IGN, CR CONT Fuses And Start 1, HVAC SOL Relays (Fuse Block-Underhood):
