LX5 INJR 1 and INJR 2 Fuses (Fuse Block-Underhood)
LX5 INJR 1 and INJR 2 Fuses (Fuse Block-Underhood)

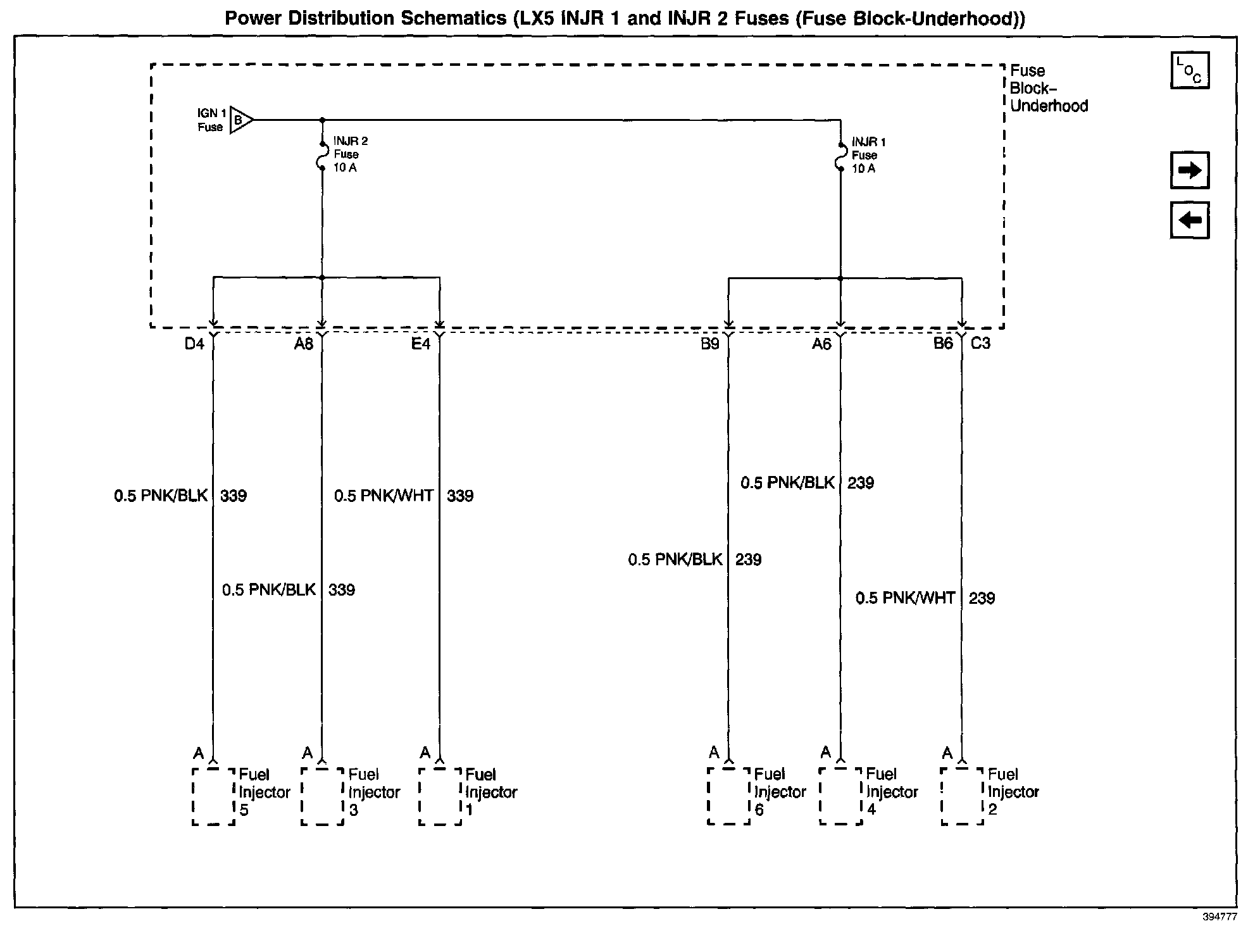

Power Distribution Schematics: LX5 INJR 1 And INJR 2 Fuses (Fuse Block-Underhood):
