Remote Playback Device (CD Changer)

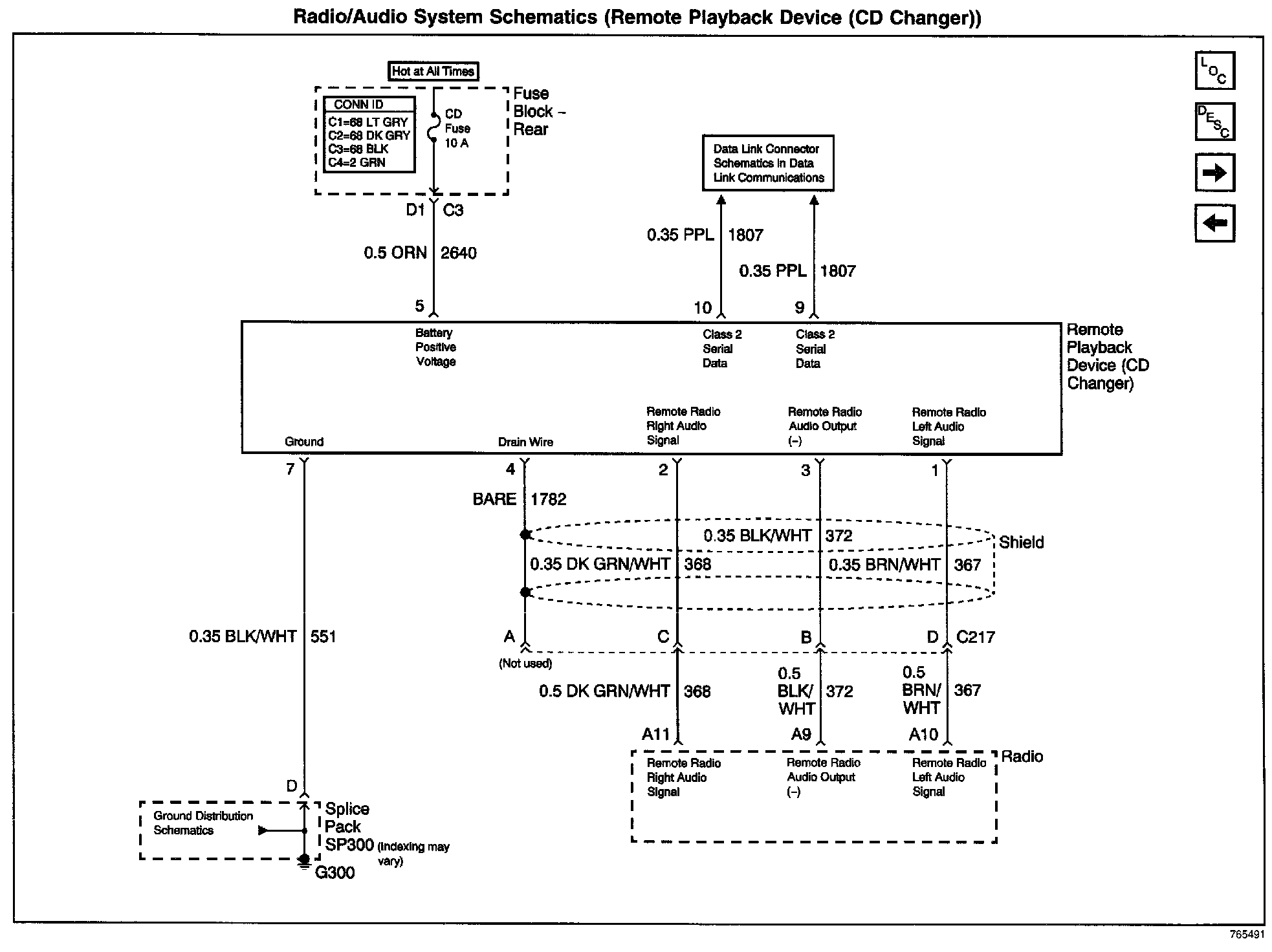

Radio/Audio System Schematics: Remote Playback Device (CD Changer):
